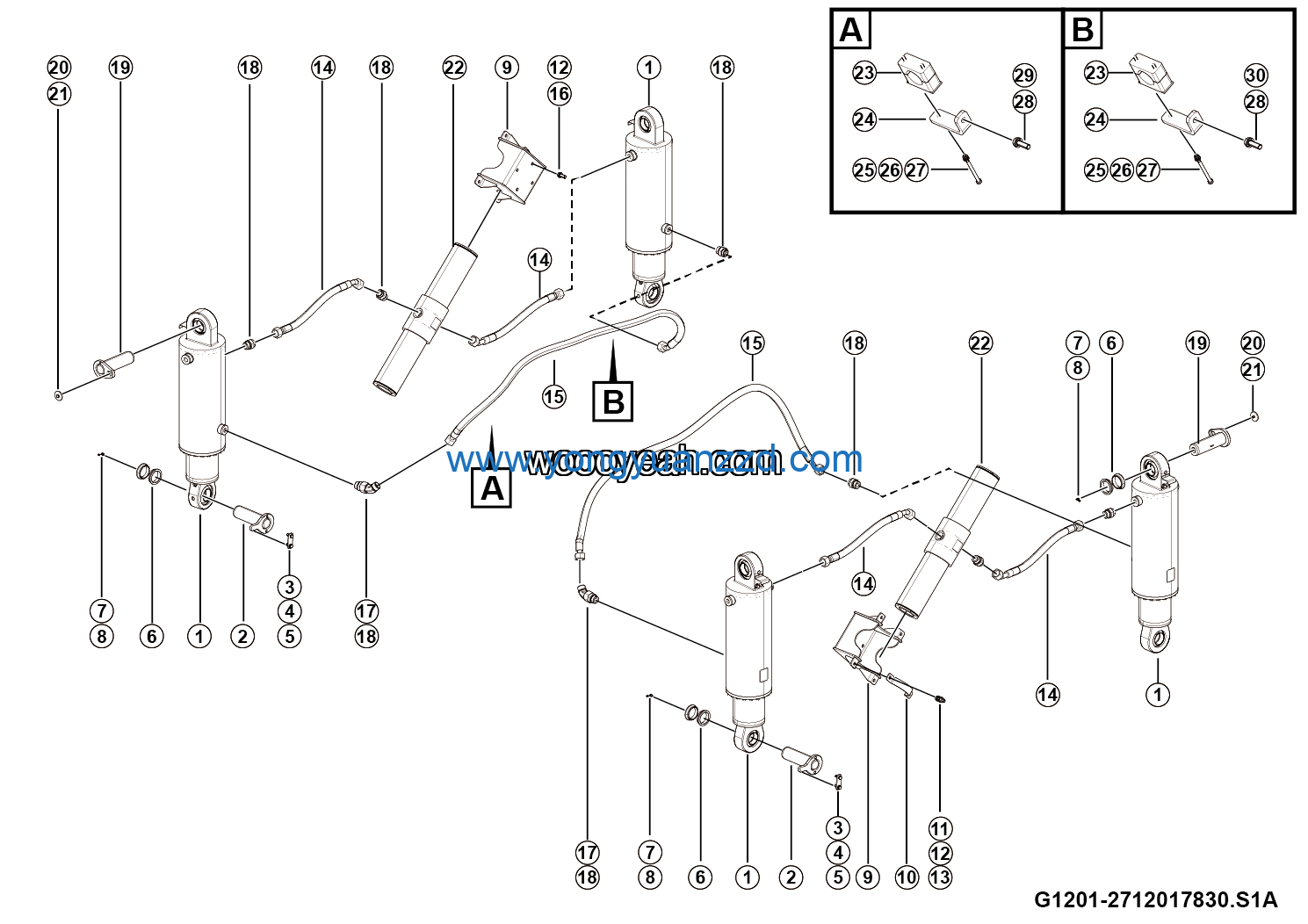

LGMG Off-Highway Dump Truck 2023 – Rear hydropneumatic spring assy – G1201-2712017830.S1A
Category: 2023 > Off-Highway Dump Truck > RTH136 > R1360Y3A0A103
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Clamp | 27120170431 | 4 |
| 2 | Bolt GB5783-M16*50EpZn-8.8 | 4011000269 | 8 |
| 3 | Washer GB97.1-16EpZn-300HV | 4015000181 | 24 |
| 4 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 8 |
| 5 | Hose | 4120712180-001 | 4 |
| 6 | Hose FDHD-4SPC90C303025-2700 | 4120710508-003 | 2 |
| 7 | Bolt GB5783-M16*40EpZn-8.8 | 4011000096 | 8 |
| 8 | 135°joint EV30SOMDCF | 4120708416 | 2 |
| 9 | Joint GE30SMEDOMDCF | 4120708415 | 12 |
| 10 | Pin weldment 70*225 | 27120178241 | 4 |
| 11 | RR oil gas spring assy 170/200-350 | 4110705001 | 4 |
| 12 | Bolt GB5783-M10*20flZnyc-10.9-480 | 4011010880 | 4 |
| 13 | Pin hold-down plate 55*10 | 27120178351 | 4 |
| 14 | Accumulator assy SXNQ-120-282 | 4110705002 | 2 |
| 15 | Tube clamp TLPG12-540 | 4120709344 | 6 |
| 16 | Bracket | 27120171831 | 6 |
| 17 | Bolt GB5782-M6*80EpZn-8.8 | 4011011127 | 12 |
| 18 | Washer GB97.1-6EpZn-300HV | 4015000207 | 12 |
| 19 | Nut GB6185.1-M6EpZn-8 | 4013010117 | 12 |
| 20 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 3 |
| 21 | Washer GB97.1-10EpZn-300HV | 4015000162 | 6 |
| 22 | Pin | 27120172661 | 4 |
| 23 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 3 |
| 24 | Pin pressure plate 90*32*6 | 27140195571 | 4 |
| 25 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 8 |
| 26 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
| 27 | Spacer 70×20 | 27120169311 | 16 |
| 28 | Grease nipple JB7940.1-M10*1 | 4030000065 | 8 |
| 29 | Butter nozzle cap JXHF-00006 | 4120000015 | 8 |
| 30 | Accumulator mounting bracket weldment | 27120178331 | 2 |
