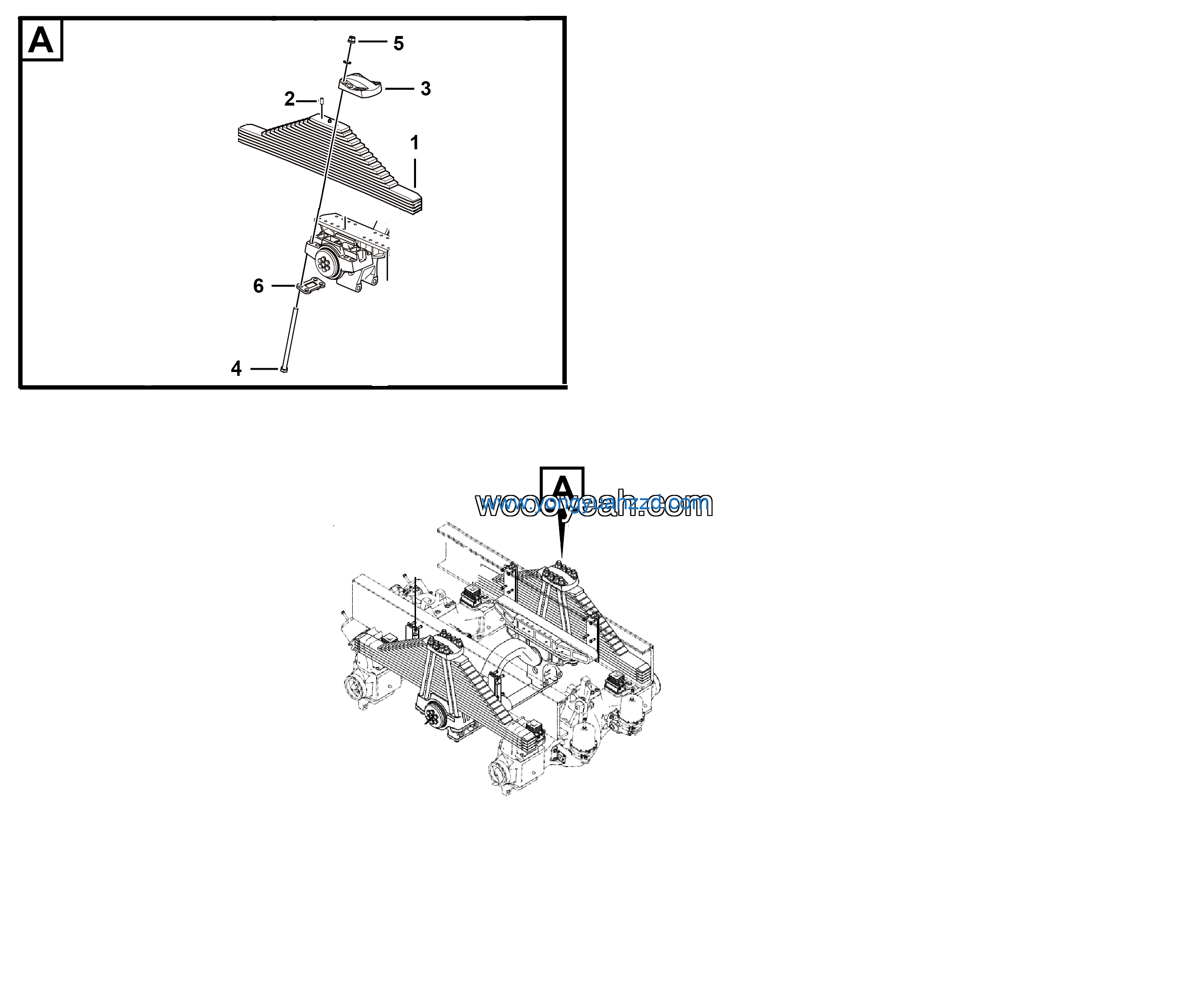

LGMG Off-Highway Dump Truck 2023 – Rear leaf spring installation – G1200-2712017270
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | RR leaf spring assy LG12-18*5*120*27 | 4110705821 | 1 |
| 2 | Guide pin | 27120103821 | 2 |
| 3 | Spring pressing block | 27120115111 | 1 |
| 4 | Bolt | 27120116781 | 8 |
| 5 | Six angle with the shoulder self-locking nut | 27120103841 | 8 |
| 6 | Base plate | 27120116741 | 2 |
