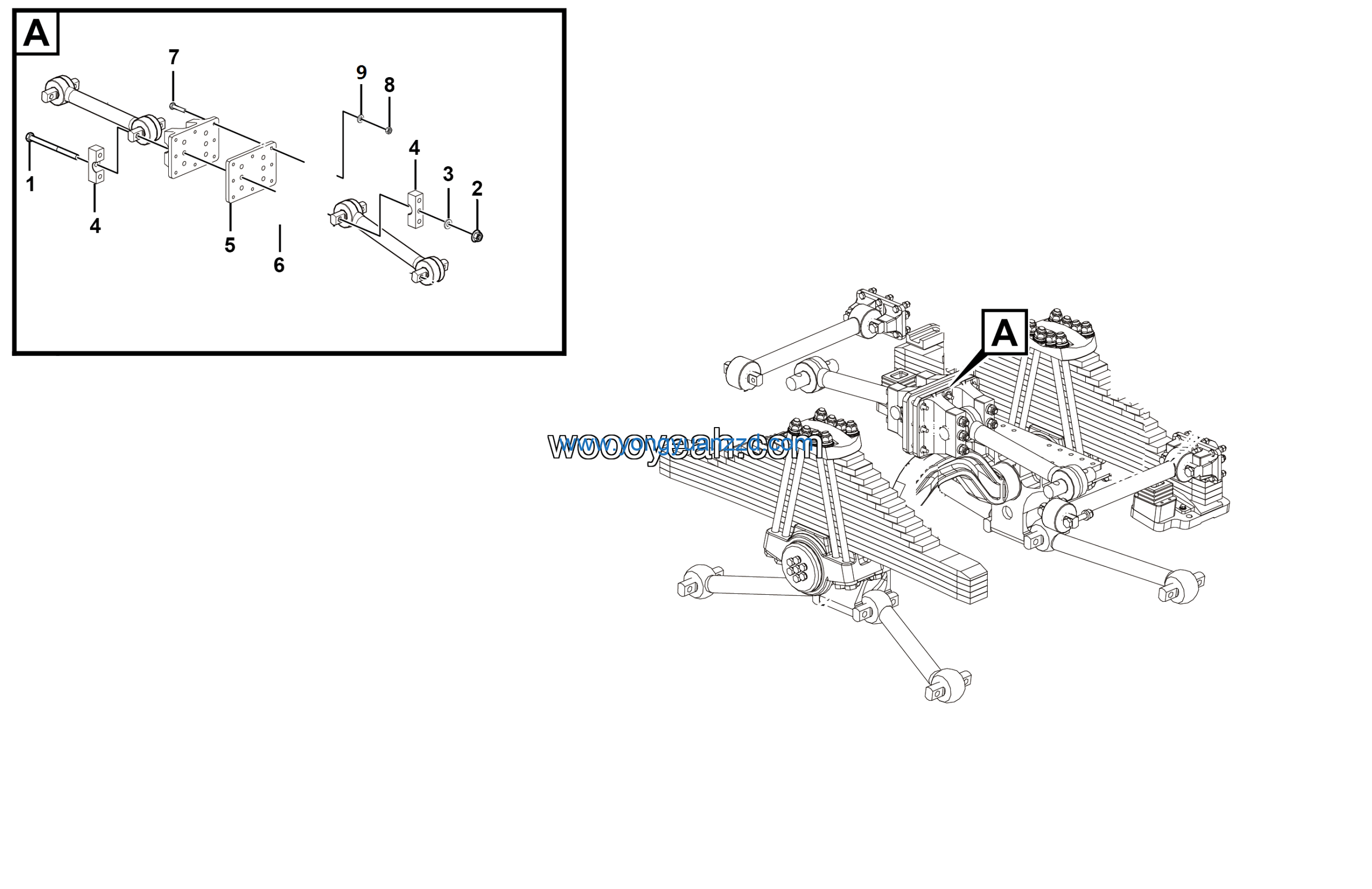

LGMG Off-Highway Dump Truck 2023 – Rear suspension push-up mount assy – G1201-2712017306
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M013
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt m24*3*470 | 27120118111 | 6 |
| 2 | Self-locking nut with the shoulder | 27120103611 | 6 |
| 3 | Washer GB1230-24EpZn-45 | 4015000003 | 6 |
| 4 | upper thrust bar scale | 27120116801 | 4 |
| 5 | Plate | 27120173081 | 1 |
| 6 | Seat | 27120173071 | 2 |
| 7 | Bolt GB5782-M16*125flZnyc-12.9-480 | 4011010682 | 8 |
| 8 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 8 |
| 9 | Washer GB1230-16EpZn-45 | 4015000001 | 16 |
