LGMG Off-Highway Dump Truck 2023 – Rear thrust rod installation assy – G1200-2712017305
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M037

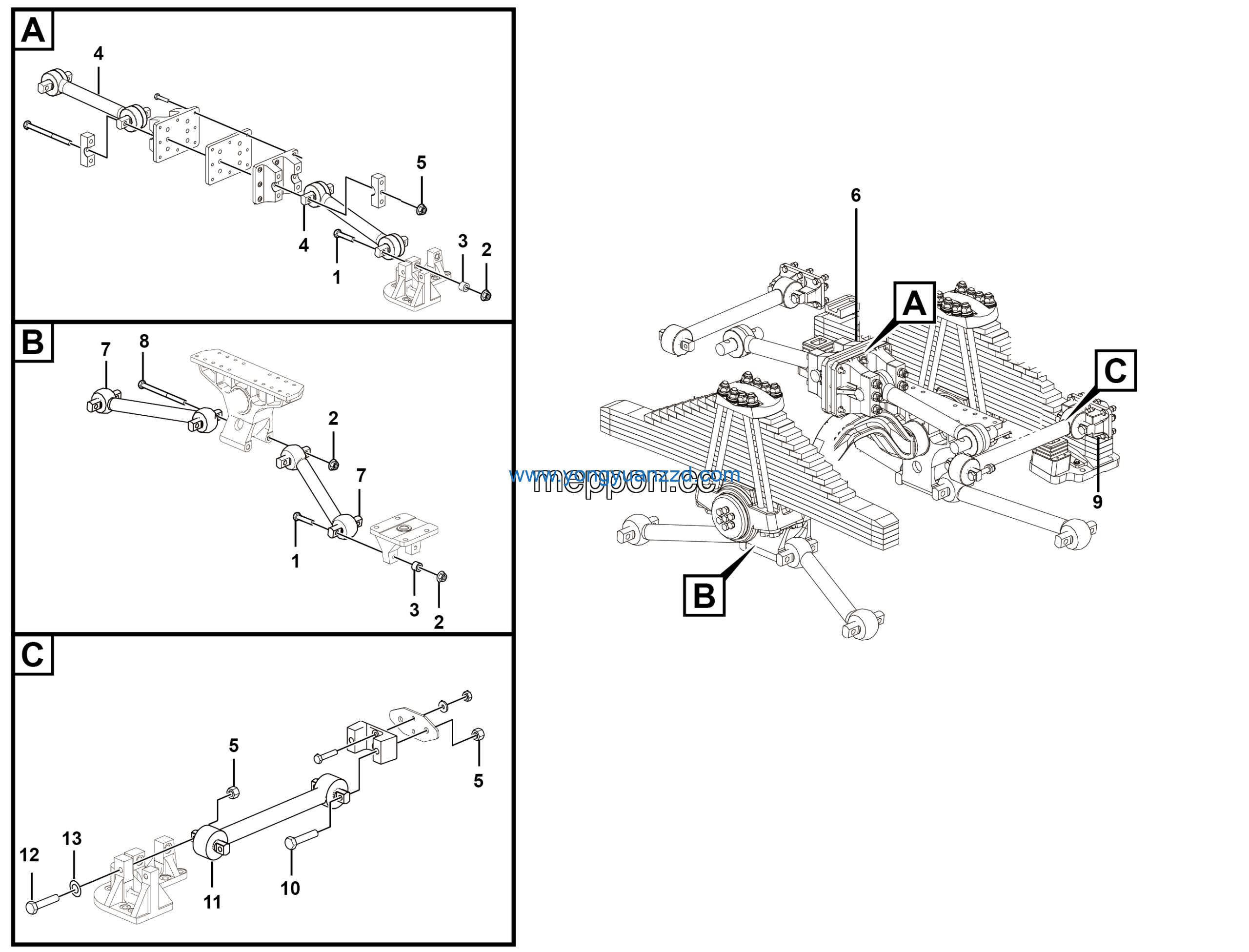

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | BOLT GB5782-M24*215FLZNYC-12.9-480 | 4110001231 | 4 |
| 2 | Transverse thrust rod | 4110705693 | 2 |
| 3 | Bolt GB5782-M24*150-12.9 | 4011010489 | 4 |
| 4 | Lock washer NL24-G | 4190707582 | 8 |
| 5 | Bolt GB5782-M27*180flZnyc-12.9-480 | 4011010563 | 12 |
| 6 | Hexangular self-locking nut with the shoulder M27 | 27120103881 | 16 |
| 7 | Spacer sleeve | 27120105031 | 12 |
| 8 | Upr thrust rod LG12-STLG-738 | 4110702874 | 2 |
| 9 | Self-locking nut with the shoulder | 27120103611 | 8 |
| 10 | Seat assembly | 27120173061 | 1 |
| 11 | Lower thrust rod LG12-XTLG-763 | 4110702875 | 4 |
| 12 | Bolt M27*3*330-12.9 | 27120103721 | 4 |
| 13 | Seat assembly | 27120171971 | 2 |
