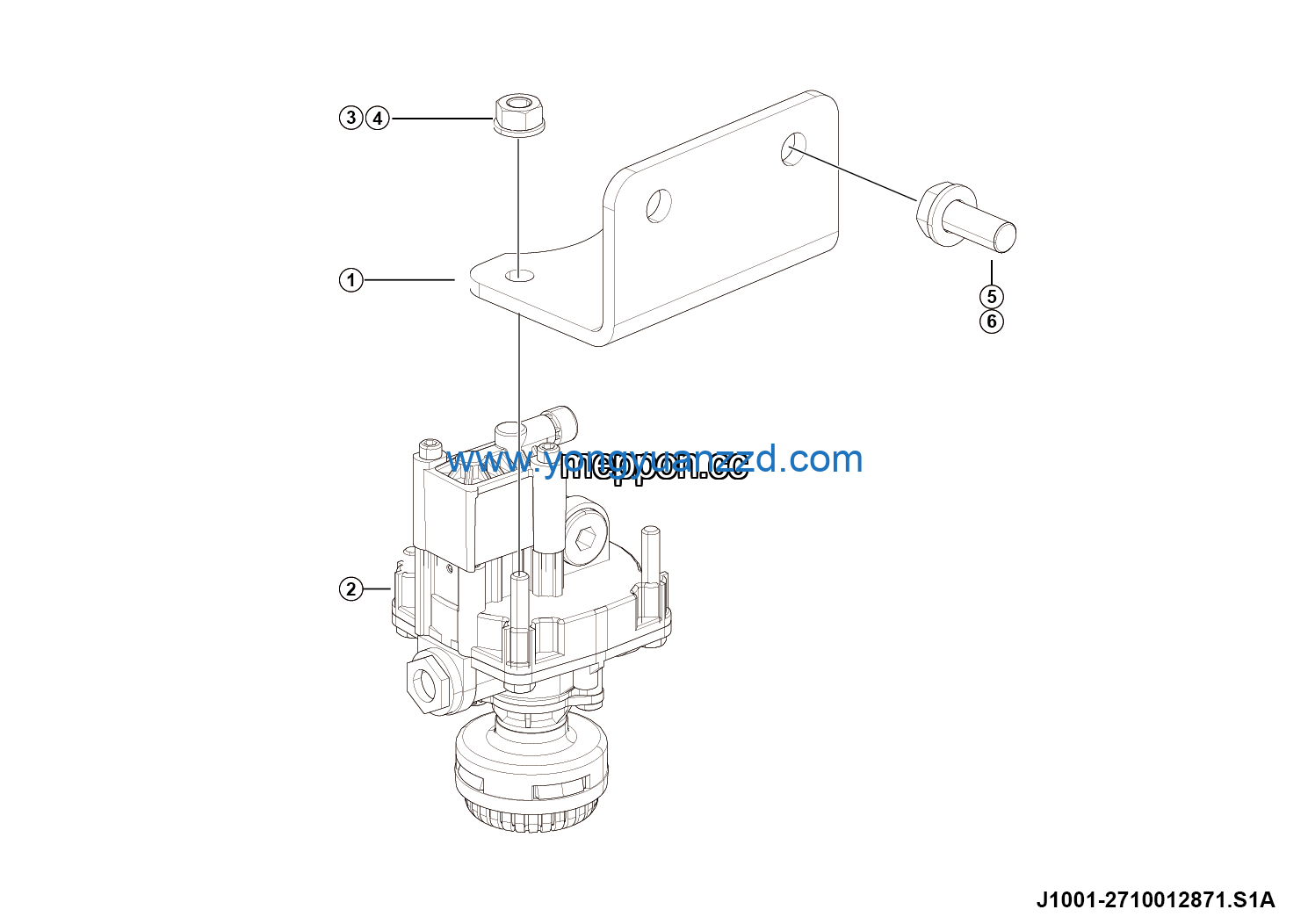

LGMG Off-Highway Dump Truck 2023 – Redundant braking valve assy – J1001-2710012871.S1A
Category: 2023 > Off-Highway Dump Truck > RTH136 > R1360Y3A0A102
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Relay valve fixing plate 100*70*60 | 27100128721 | 1 |
| 2 | Temporary stop relay valve 35673980640 | 4120709654 | 1 |
| 3 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 4 | Nut GB6170-M8EpZn-10 | 4013000031 | 2 |
| 5 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
