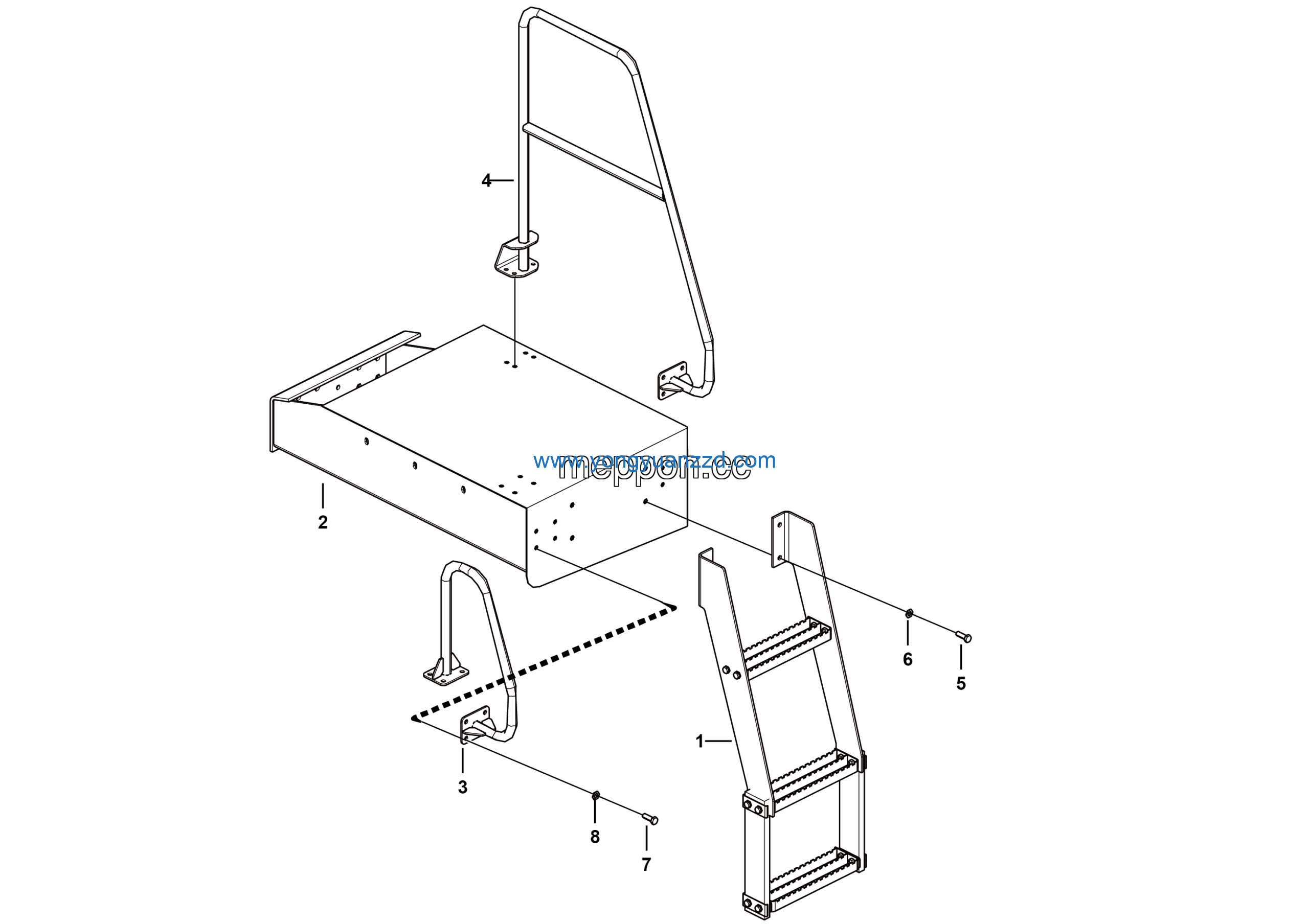

LGMG Off-Highway Dump Truck 2023 – Right pedal assembly – L3601-2736015915.S1A
Category: 2023 > Off-Highway Dump Truck > MT126H > C126HW3A0M001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Elevator assembly | 27360159181 | 1 |
| 2 | Right pedal welding | 27360159162 | 1 |
| 3 | Handrail welding | 27360159541 | 1 |
| 4 | Handrail welding | 27360159471 | 1 |
| 5 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 16 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 16 |
| 7 | Bolt GB5783-M12*35EpZn-8.8 | 4011000090 | 4 |
| 8 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
