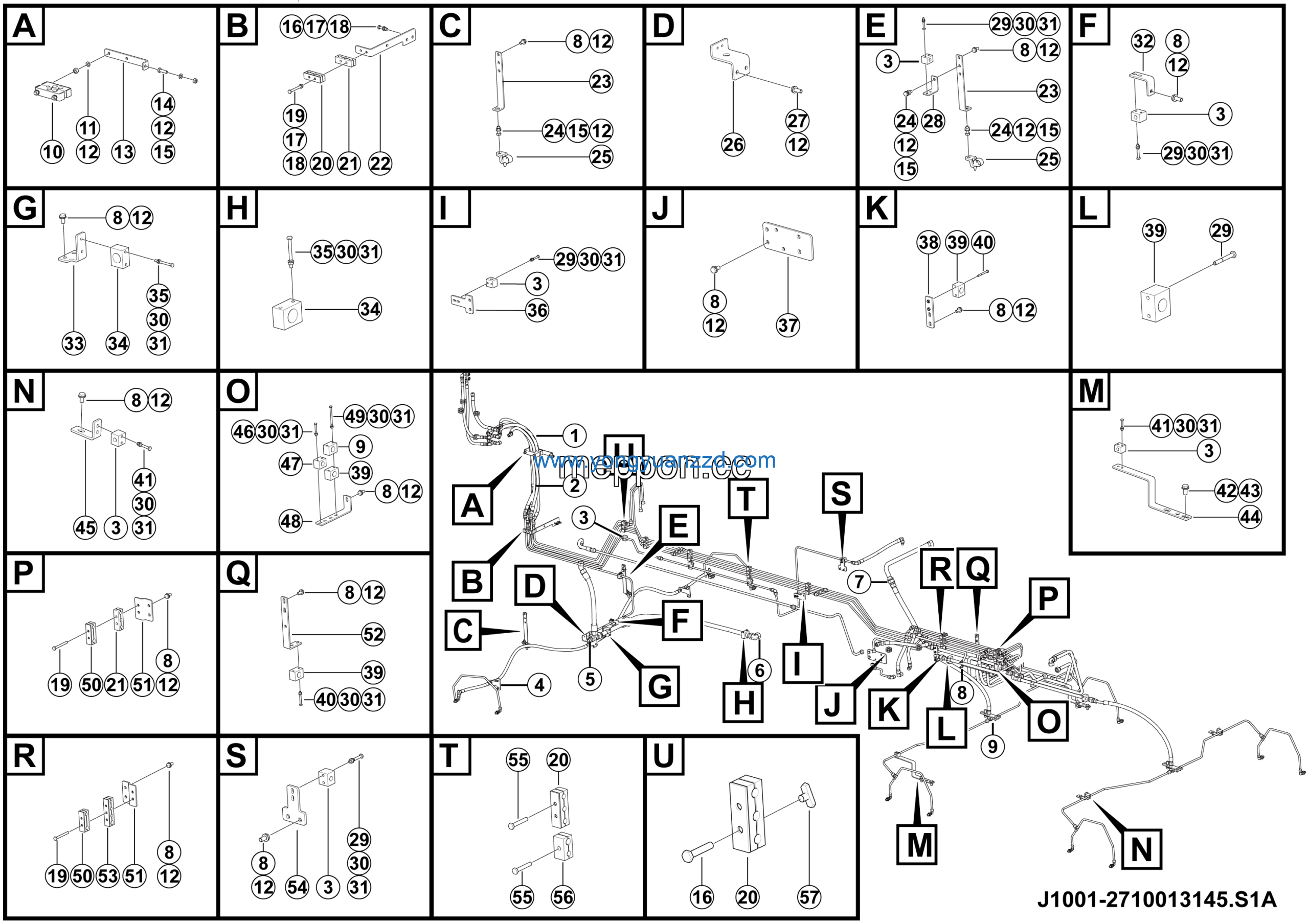

LGMG Off-Highway Dump Truck 2023 – Service brake accessories assy – J1001-2710013145.S1A
Category: 2023 > Off-Highway Dump Truck > RT100 > R1000W3A0M002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rubber plate assy for tube bank | 27150131811 | 1 |
| 2 | Nut GB6170-M12EpZn-8 | 4013000011 | 1 |
| 3 | Washer GB97.1-10EpZn-300HV | 4015000162 | 31 |
| 4 | Bracket 231*36*30 | 27100131351 | 1 |
| 5 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 1 |
| 6 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 7 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 4 |
| 8 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 9 | Nut GB6170-M8EpZn-8 | 4013000033 | 4 |
| 10 | Bolt GB5783-M8*75EpZn-8.8 | 4011000781 | 6 |
| 11 | Service brake lines assy | 27100131441 | 1 |
| 12 | Triple-pipe clamp 12-12-12 | 27100131201 | 6 |
| 13 | Triple-pipe clamp 12-12-12 | 27110115012 | 2 |
| 14 | High volt wire bracket | 27100128361 | 1 |
| 15 | Bracket 240*40*30 | 27100125911 | 2 |
| 16 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 3 |
| 17 | Cable tie 14400342 | 4130703098 | 2 |
| 18 | Plate | 27250101561 | 1 |
| 19 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 20 | L-shaped plate 60*60*30 | 27100128501 | 1 |
| 21 | Bolt GB5782-M6*45EpZn-8.8 | 4011000611 | 12 |
| 22 | Canvas socketet 510*400-ZD | 4190708678 | 1 |
| 23 | Washer GB97.1-6EpZn-300HV | 4015000207 | 28 |
| 24 | Nut GB6170-M6EpZn-8 | 4013000028 | 28 |
| 25 | L-bracket 75*54*30 | 27100126961 | 1 |
| 26 | Oil pipe bracket | 27100131741 | 2 |
| 27 | Tube clamp TLPG12-430 | 4120709341 | 3 |
| 28 | Bolt GB5782-M6*65EpZn-8.8 | 4011000869 | 6 |
| 29 | Fixing plate 110*75*6 | 27100131421 | 1 |
| 30 | Relief valve bracket | 27100131411 | 1 |
| 31 | Oil pipe bracket wldmt | 27100126141 | 1 |
| 32 | Tube clamp TLPG12-322 | 4120708229 | 7 |
| 33 | Tube clamp TLPG12-112 | 4120708226 | 9 |
| 34 | Bolt GB5782-M6*55EpZn-8.8 | 4011010517 | 4 |
| 35 | Bolt GB5782-M6*45flZnyc-8.8-480 | 4011010826 | 8 |
| 36 | Bolt GB5783-M14*30EpZn-8.8 | 4011000265 | 4 |
| 37 | Washer GB97.1-14EpZn-300HV | 4015000177 | 4 |
| 38 | Pipe clamp bracket 390*35*118 | 27100126151 | 2 |
| 39 | Pipe clamp bracket 90*30*60 | 27100126161 | 2 |
| 40 | Bolt GB5782-M6*50flZnyc-8.8-480 | 4011011346 | 2 |
| 41 | Tube clamp TLPG12-218 | 4120708228 | 1 |
| 42 | L-bracket 180*63*35 | 27100126951 | 1 |
| 43 | Bolt GB5782-M6*90EpZn-8.8 | 4011000871 | 2 |
| 44 | Seat | 27100117931 | 2 |
| 45 | Double-pipe clamp 12-15 | 27100131721 | 2 |
| 46 | Z-bracket wldmt | 27100126971 | 2 |
| 47 | Pipe clamp bracket 222*75*30 | 27100126241 | 1 |
| 48 | Quadruple-pipe clamp 12-12-12 -15 | 27100131291 | 1 |
| 49 | Bracket 100*75*6 | 27100126221 | 1 |
| 50 | Bolt GB5783-M8*50EpZn-8.8 | 4011000702 | 10 |
| 51 | Double-pipe clamp 15-12 | 27100128511 | 2 |
| 52 | Rail nut TT-F | 4120711817 | 2 |
| 53 | Reducing joint 2C-26-36 | 4129900329 | 1 |
| 54 | JOINT LGB143-03625 | 4041001211 | 1 |
| 55 | Adapter joint 2C-30-36 | 4120706815 | 1 |
| 56 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 26 |
| 57 | Seat | 27100117911 | 2 |
