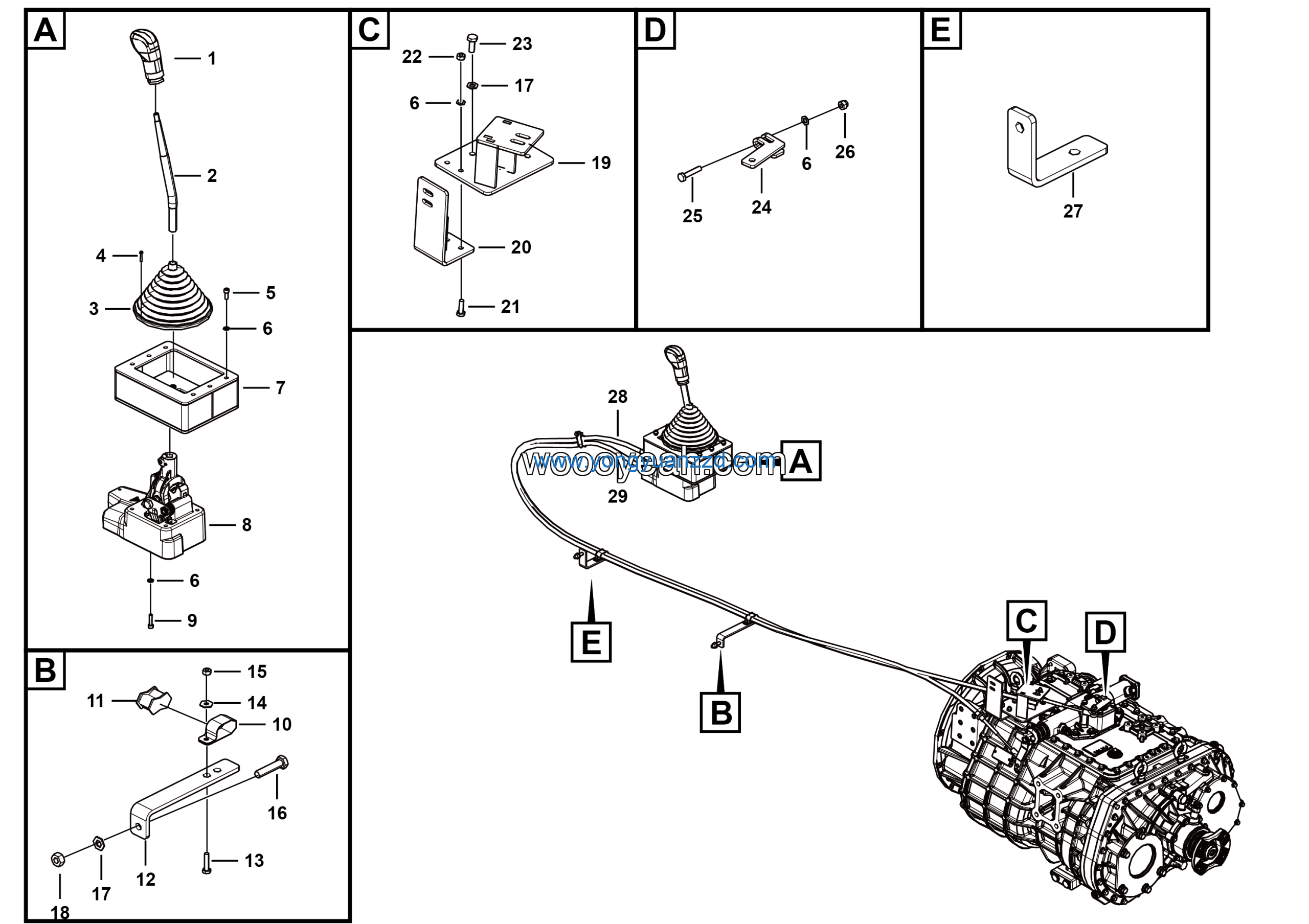

LGMG Off-Highway Dump Truck 2023 – Shift control assembly – C0501-2705011504.S1A
Category: 2023 > Off-Highway Dump Truck > MT96L > M096LW3A0M307
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Clamping band | 27050109741 | 3 |
| 2 | Grommet | 27050109751 | 3 |
| 3 | Support ⅱ | 27050106581 | 1 |
| 4 | Bolt GB5783-M6*25EpZn-8.8 | 4011000276 | 3 |
| 5 | Washer GB96.1-6EpZn-300HV | 4015000198 | 3 |
| 6 | Nut GB6170-M6EpZn-8 | 4013000028 | 3 |
| 7 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 2 |
| 8 | Washer GB97.1-10EpZn-300HV | 4015000162 | 5 |
| 9 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 10 | 1 | 27050115051 | 1 |
| 11 | Shift lever | 27050105251 | 1 |
| 12 | 1 | 27050115111 | 1 |
| 13 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 2 |
| 14 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 15 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 3 |
| 16 | Gear selector arm | 27050115301 | 1 |
| 17 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 1 |
| 18 | Nut GB889.1-M8EpZn-8 | 4013000210 | 1 |
| 19 | Support ⅰ | 27050106571 | 1 |
| 20 | Shift flexible shaft assy | 4110001440-001 | 1 |
| 21 | Shift flexible shaft assy | 4110002124-001 | 1 |
| 22 | Plate | 27050106181 | 1 |
| 23 | Dust cover assembly | 27050101191 | 1 |
| 24 | Screw GB818-M5*25EpZn-4.8 | 4014010009 | 4 |
| 25 | Screw GB70.1-M8*20EpZn-8.8 | 4014000211 | 6 |
| 26 | Washer GB97.1-8EpZn-300HV | 4015000072 | 13 |
| 27 | Manipulator connecting block | 27050106881 | 1 |
| 28 | Controller | 4110001321 | 1 |
| 29 | Screw GB70.1-M8*30EpZn-8.8 | 4011000448 | 4 |
