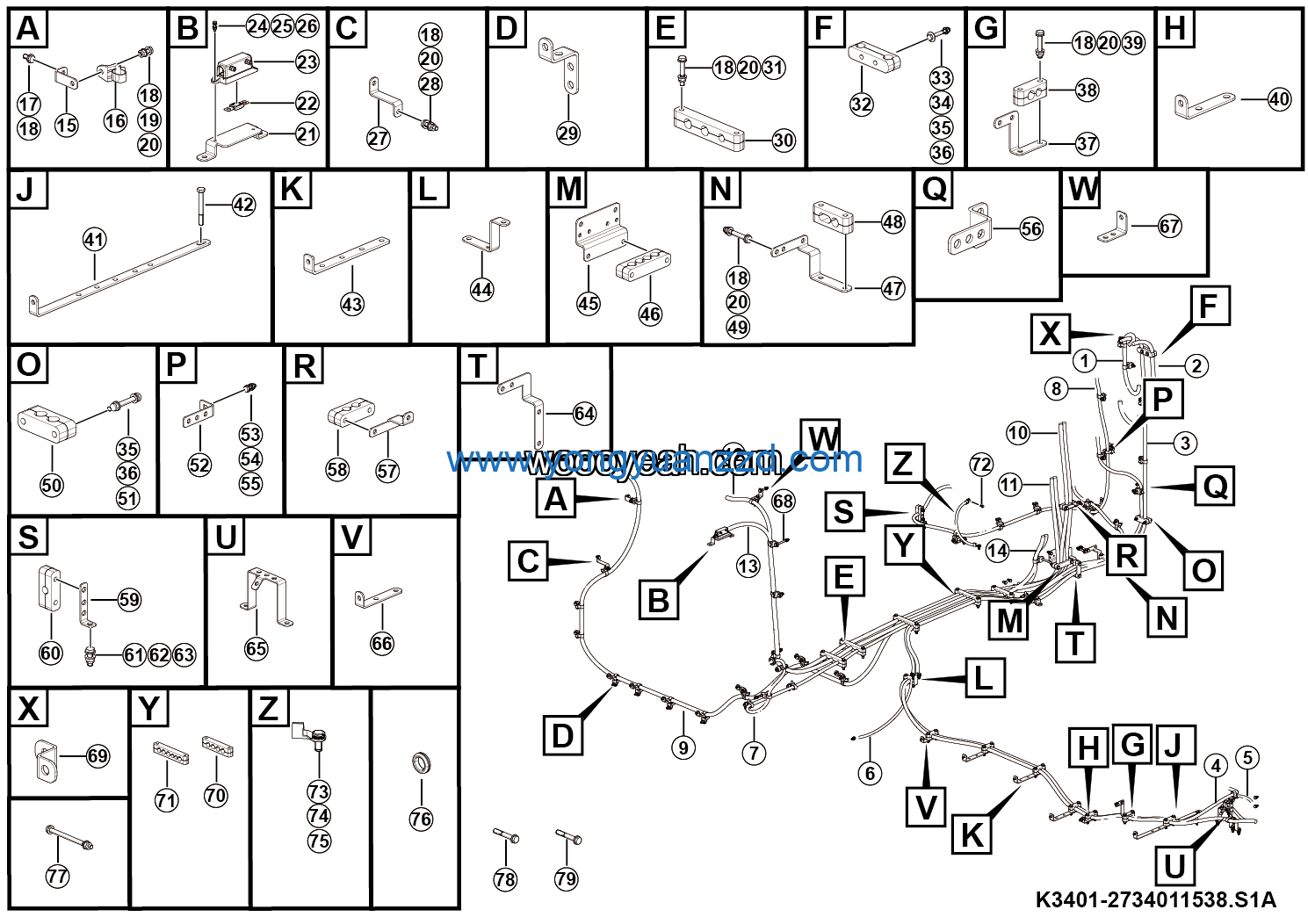

LGMG Off-Highway Dump Truck 2023 – Small electrical modules assy – K3401-2734011538.S1A
Category: 2023 > Off-Highway Dump Truck > EL100 > R1260Y3A0A601
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Master controller dc-dc converter negative wire 1540 | 27340115621 | 1 |
| 2 | Assist dcdc negative wire——1225 | 27340115641 | 1 |
| 3 | Master controller dc-dc converter 4960 | 27340115611 | 1 |
| 4 | Generator dc-dc converter + wire 3790 | 27340115681 | 1 |
| 5 | Generator dc-dc converter negative wire 580 | 27340115691 | 1 |
| 6 | Support3 | 27340113411 | 1 |
| 7 | Cable tie HS-J117 | 4130704969 | 39 |
| 8 | Bolt GB5783-M10*20EpZn-10.9 | 4011000759 | 25 |
| 9 | Washer GB97.1-10EpZn-300HV | 4015000162 | 188 |
| 10 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 23 |
| 11 | Steering controller positive wire-940 | 27340115581 | 1 |
| 12 | Nut GB6185.1-M10EpZn-10 | 4013010133 | 83 |
| 13 | Support | 27340113621 | 1 |
| 14 | Fuse ANM-200 | 4130705933 | 1 |
| 15 | Fuse seat ANM-C | 4130705928 | 1 |
| 16 | Bolt GB5783-M5*20EpZn-8.8 | 4011010924 | 2 |
| 17 | Washer GB97.1-5EpZn-300HV | 4015000110 | 4 |
| 18 | Nut GB6185.1-M5EpZn-8 | 4013010116 | 2 |
| 19 | Support2 | 27340113401 | 2 |
| 20 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 17 |
| 21 | Bracket | 27340110611 | 7 |
| 22 | Steering controller positive wire -1250 | 27340115591 | 1 |
| 23 | Pipe clamp half 210*30*20 | 27340115851 | 4 |
| 24 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 19 |
| 25 | Pipe clamp half 130*30*20 | 27340115801 | 2 |
| 26 | Bolt GB5782-M8*60EpZn-8.8 | 4011000718 | 2 |
| 27 | Washer GB96.1-8EpZn-300HV | 4015000256 | 2 |
| 28 | Washer GB97.1-8EpZn-300HV | 4015000072 | 8 |
| 29 | Nut GB6185.1-M8EpZn-10 | 4013010132 | 4 |
| 30 | Bracket 5 | 27340113331 | 1 |
| 31 | Pipe clamp half 90*30*18 | 27340115861 | 16 |
| 32 | Bolt GB5783-M10*60EpZn-8.8 | 4011010653 | 18 |
| 33 | Oil pump high voltage wire 1 (7050) | 27340115661 | 1 |
| 34 | Bracket 6 | 27340113341 | 1 |
| 35 | Support | 27340113841 | 1 |
| 36 | Bolt GB5782-M10*85EpZn-8.8 | 4011010016 | 1 |
| 37 | L-bracket 269*44*4 | 27340115771 | 3 |
| 38 | Bracket | 27340112791 | 1 |
| 39 | Bracket 7 | 27340113351 | 1 |
| 40 | Pipe clamp half 140*30*20 | 27340115791 | 2 |
| 41 | Bracket | 27340110571 | 1 |
| 42 | Pipe clamp half 111*30*20（21*2-80） | 27340115821 | 4 |
| 43 | Bolt GB5782-M10*75EpZn-8.8 | 4011000052 | 2 |
| 44 | Oil pump high voltage wire 2 (5930) | 27340115671 | 1 |
| 45 | Pipe clamp half 100*30*20 | 27340115811 | 2 |
| 46 | Bolt GB5782-M8*65EpZn-8.8 | 4011000301 | 2 |
| 47 | Bracket 45 | 27030139931 | 3 |
| 48 | Bolt GB5783-M8*25-8.8 | 4011000724 | 5 |
| 49 | Washer GB97.1-8-300HV | 4015000315 | 12 |
| 50 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 6 |
| 51 | 支架 | 27340112841 | 1 |
| 52 | Support1 | 27340113391 | 1 |
| 53 | Tube bank | 27340110531 | 2 |
| 54 | L-bracket 100*35*20 | 27340115731 | 2 |
| 55 | Earthing wire p50-8*10*350-1.8 | 27340115721 | 1 |
| 56 | Pipe clamp half 100*30*20 | 27340115751 | 2 |
| 57 | Bolt GB5783-M12*35EpZn-8.8 | 4011000090 | 2 |
| 58 | Washer GB97.1-12-300HV | 4015000313 | 4 |
| 59 | Nut GB6185.1-M12EpZn-10 | 4013010134 | 2 |
| 60 | Bracket 1 | 27340113291 | 1 |
| 61 | Bracket 1 | 27340112091 | 1 |
| 62 | Bracket | 27340112801 | 1 |
| 63 | Bracket 2 | 27340104491 | 1 |
| 64 | Bolt GB5782-M10*110EpZn-8.8 | 4011000797 | 1 |
| 65 | Bracket | 27340112831 | 1 |
| 66 | Earthing wire P50-10*10*600-1.8 | 2734011570-002 | 2 |
| 67 | Pipe clamp half 180*30*20（4*23.5） | 27340115831 | 2 |
| 68 | Pipe clamp half 210*30*20 | 27340115841 | 4 |
| 69 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 1 |
| 70 | Bolt GB5783-M8*20-8.8 | 4011000723 | 1 |
| 71 | Double sack wedge lock washer HF10 | 4190708409 | 4 |
| 72 | Washer GB862.2-10-65Mn | 4015010586 | 4 |
| 73 | Sheath LGB313-6*32 | 4043001111 | 1 |
| 74 | Bolt GB5782-M10*135EpZn-8.8 | 4011000311 | 1 |
| 75 | Bolt GB5783-M8*30-8.8 | 4011000725 | 1 |
