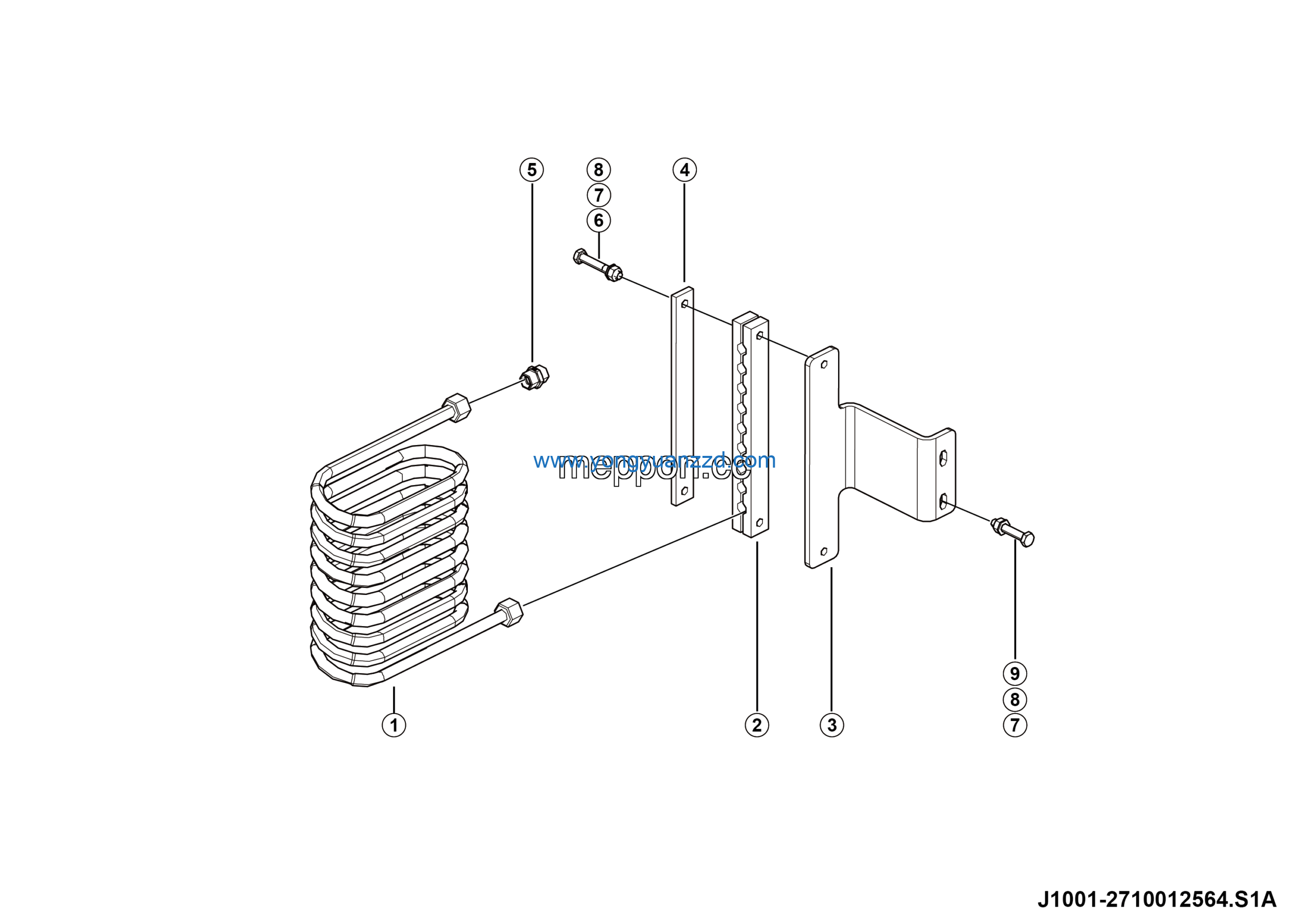

LGMG Off-Highway Dump Truck 2023 – Spiral pipe assy – J1001-2710012564.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE106H > C106HE0A0A406
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Spiral pipe φ16*1.5*4870 | 27100125671 | 1 |
| 2 | Rubber pipe clamp 294*30*14 | 27100125651 | 2 |
| 3 | Bent plate 295*140*120 | 27100125681 | 1 |
| 4 | Pressing plate 294*30*8 | 27100125662 | 1 |
| 5 | Straight joint 1C-22 | 4120707870 | 1 |
| 6 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
| 7 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 8 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 9 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 2 |
