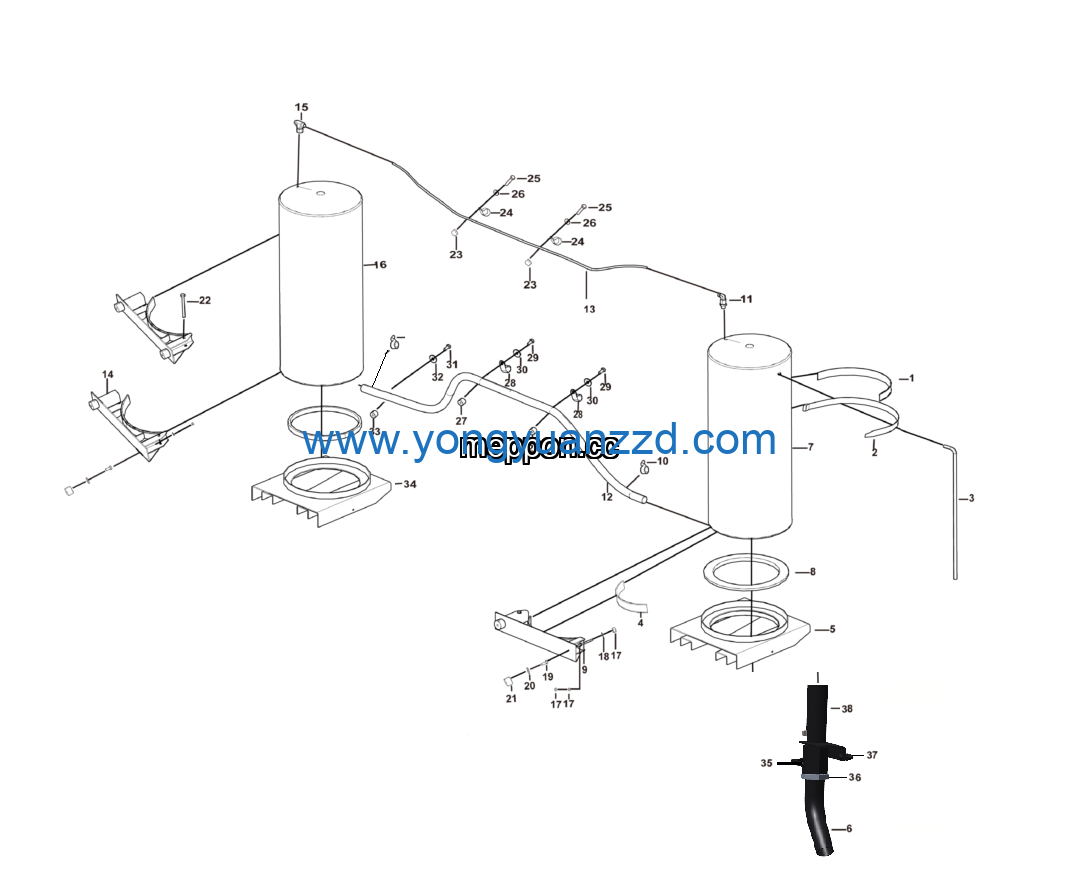

LGMG Off-Highway Dump Truck 2023 – Spray water tank assy – J3801-2738010638
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M057
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose clamp JB8870-D50 | 4017000009 | 4 |
| 2 | Combination joint LGB143-01810 | 4041001063 | 1 |
| 3 | 1 | 27380106361 | 1 |
| 4 | Hose assembly m18-2800 | 27380100262 | 1 |
| 5 | Seat | 27380106391 | 2 |
| 6 | Tee joint BC-18 | 4190001019 | 1 |
| 7 | Spray water tank LG21-PLSX-02 | 4120708921 | 1 |
| 8 | Nut GB6170-M12EpZn-8 | 4013000011 | 20 |
| 9 | Washer GB96.1-12EpZn-300HV | 4015000186 | 19 |
| 10 | Bolt GB5783-M16*35EpZn-8.8 | 4011000095 | 8 |
| 11 | Cushion belt | 27380102921 | 4 |
| 12 | Washer GB96.1-16EpZn-300HV | 4015000279 | 8 |
| 13 | Seatm16-65 | 27380102661 | 8 |
| 14 | Bolt GB5782-M12*110EpZn-8.8 | 4011000262 | 4 |
| 15 | Fuse base M8 | 27140102891 | 2 |
| 16 | Pipe clamp Ф13 | 27340100341 | 2 |
| 17 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 2 |
| 18 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 19 | Seat | 27140111531 | 4 |
| 20 | Pipe clamp LGB167-0846 | 4041010082 | 4 |
| 21 | Bolt GB5783-M12*20EpZn-8.8 | 4011000087 | 4 |
| 22 | Band assembly | 27380102371 | 4 |
| 23 | CUSHION SLEEVE LGB123-0846 | 4041001636 | 4 |
| 24 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 25 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 26 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 27 | Seat | 27380106411 | 1 |
| 28 | Two-way ball valve G1 1/4 | 4120002210 | 1 |
| 29 | Hexagon thin nut g1 1/4 | 27380102721 | 1 |
| 30 | Plate | 27380106431 | 1 |
| 31 | Pipe | 27380105671 | 1 |
| 32 | Hose assembly m18-1700 | 27380102342 | 1 |
| 33 | Rubber belt | 27380101851 | 4 |
| 34 | Seat | 27380106421 | 1 |
| 35 | Pipe | 27380102672 | 1 |
| 36 | Auxiliary water tank assy | 4120002011 | 1 |
| 37 | Rubber mat | 27380101711 | 2 |
| 38 | Seat | 27380106401 | 2 |
