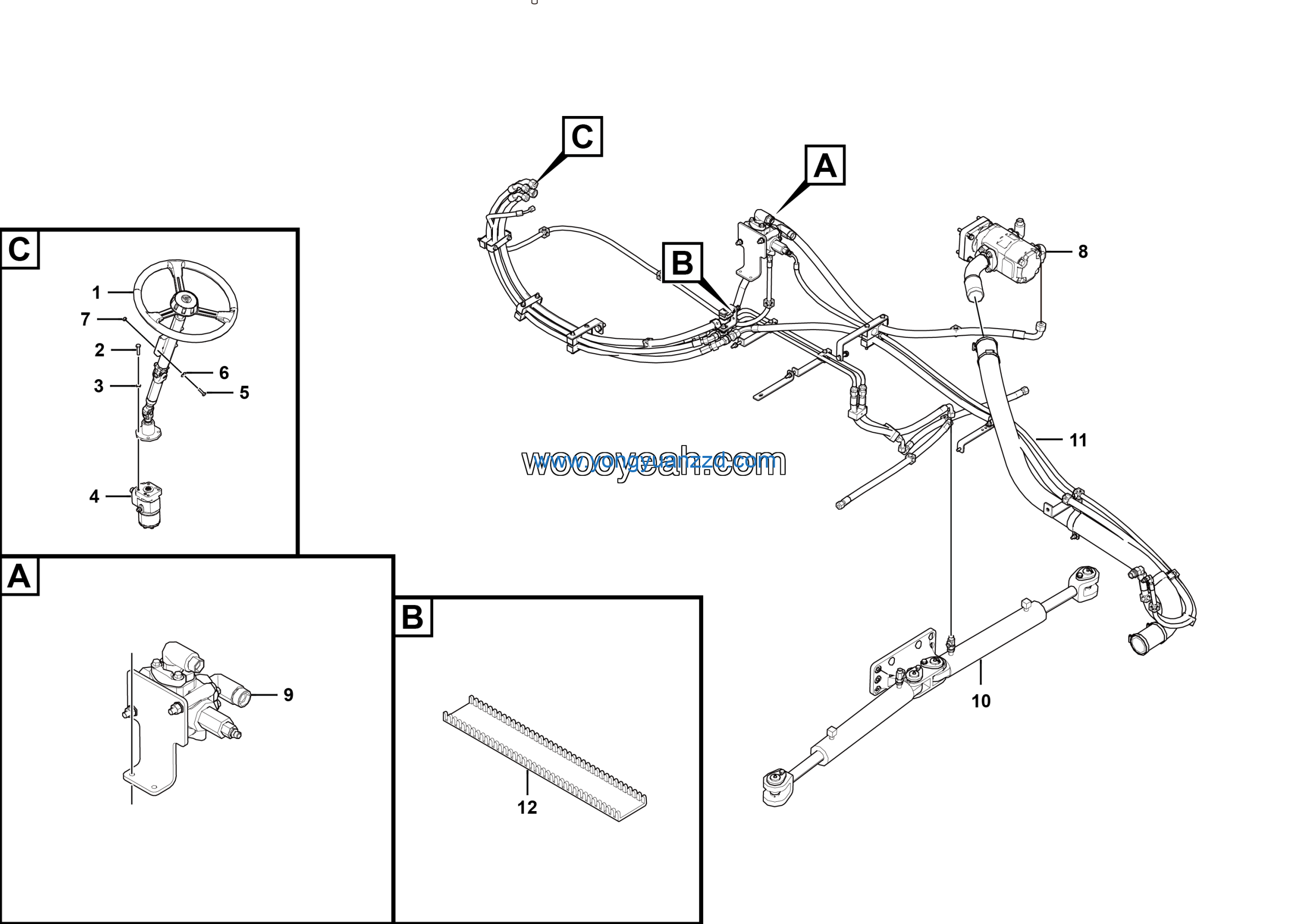

LGMG Off-Highway Dump Truck 2023 – Steering assy – H1501-2715012665
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M049
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Steering cylinder assy | 27150124951 | 1 |
| 2 | Asm-accessory | 27150126661 | 1 |
| 3 | String casing | 27140105021 | 1 |
| 4 | Steering column assy | 27150124231 | 1 |
| 5 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 4 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 7 | Steering gear assy | 27150125111 | 1 |
| 8 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 4 |
| 9 | Washer GB96.1-8EpZn-300HV | 4015000256 | 4 |
| 10 | Nut GB6170-M8EpZn-8 | 4013000033 | 4 |
| 11 | Pump assy | 27150125341 | 1 |
| 12 | Pressure-gradient control valve | 27150126731 | 1 |
