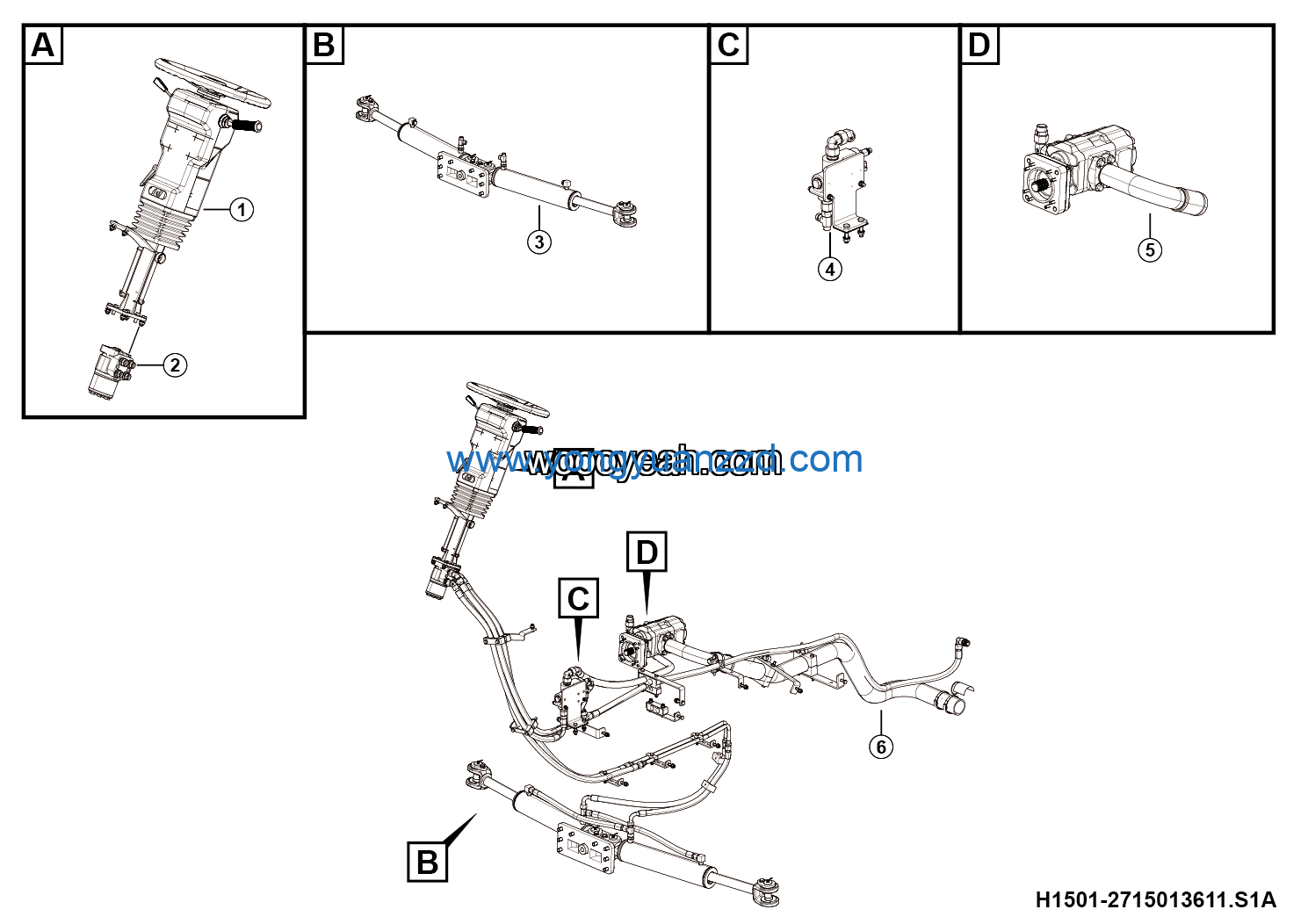

LGMG Off-Highway Dump Truck 2023 – Steering assy – H1501-2715013611.S1A
Category: 2023 > Off-Highway Dump Truck > CMT96H > C096HW3E0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Steering wheel module | 27150122261 | 1 |
| 2 | Steering gear assy-r01 | 27150135871 | 1 |
| 3 | Steering sylinder assembly | 27150124241 | 1 |
| 4 | Priority valve assy | 27150135881 | 1 |
| 5 | Gear pump installation | 27150135891 | 1 |
| 6 | Steering accessories | 27150136141 | 1 |
