LGMG Off-Highway Dump Truck 2023 – Steering cylinder assy – H1500-4120001483
Category: 2023 > Off-Highway Dump Truck > MT96HF > M096HW4A0M001

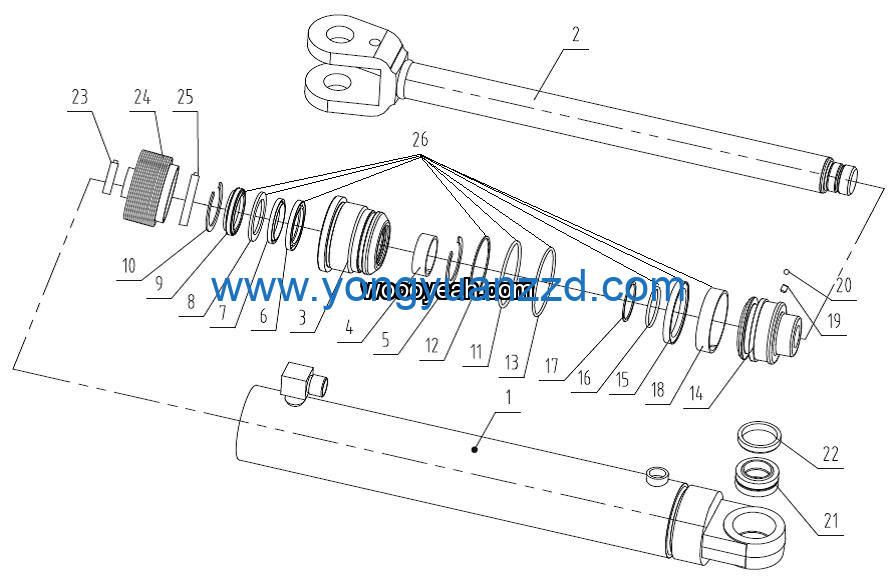

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Snap ring 24C090110（D60.3*1.5t） | 4120001483009 | 1 |
| 2 | O-ring 24K10750A (74.4*3.1) | 4120001483010 | 1 |
| 3 | Snap ring 24M10800C | 4120001483011 | 1 |
| 4 | O-ring 24K308001 (80*2.65) | 4120001483012 | 1 |
| 5 | Piston 24C106080 | 4120001483013 | 1 |
| 6 | Seal-Piston 24P208002 | 4120001483014 | 1 |
| 7 | O-ring 24K10450B | 4120001483015 | 1 |
| 8 | Snap ring 24M10500C | 4120001452018 | 1 |
| 9 | Support ring 24G208031 | 4120001483016 | 1 |
| 10 | Screw 401700154 (M6*8L) | 4120001483017 | 1 |
| 11 | Cylinder barrel assy 24A430630 | 4120001483001 | 1 |
| 12 | Steel ball 402200001 (D4) | 4120001483018 | 1 |
| 13 | Joint bearing 402100008 | 4120001483019 | 1 |
| 14 | Steel wire snap ring A 401100007 | 4120001483020 | 1 |
| 15 | Hose clamp 24TM10003 | 4120001483021 | 1 |
| 16 | Sheath 24W720050 | 4120001483022 | 1 |
| 17 | Hose clamp 24TM45003 | 4120001322021 | 1 |
| 18 | Steering cylinder repair kit HSGL-80*45*390-700 | 4120001483023 | 1 |
| 19 | Piston rod assy 24A410290 | 4120001483002 | 1 |
| 20 | Cylinder cover 24C105080 | 4120001483003 | 1 |
| 21 | Bush 24S245201 | 4120001483004 | 1 |
| 22 | Snap ring 24C090080（D53.3*1.5t） | 4120001483005 | 1 |
| 23 | Seal-Buffering 24H004514 | 4120001483006 | 1 |
| 24 | Piston rod seal 24F204503（45*55*6） | 4120001450002 | 1 |
| 25 | Backup ring 24E00451C（45*55*3） | 4120001483007 | 1 |
| 26 | Dust seal 24D204502（45*57*7/10） | 4120001483008 | 1 |
