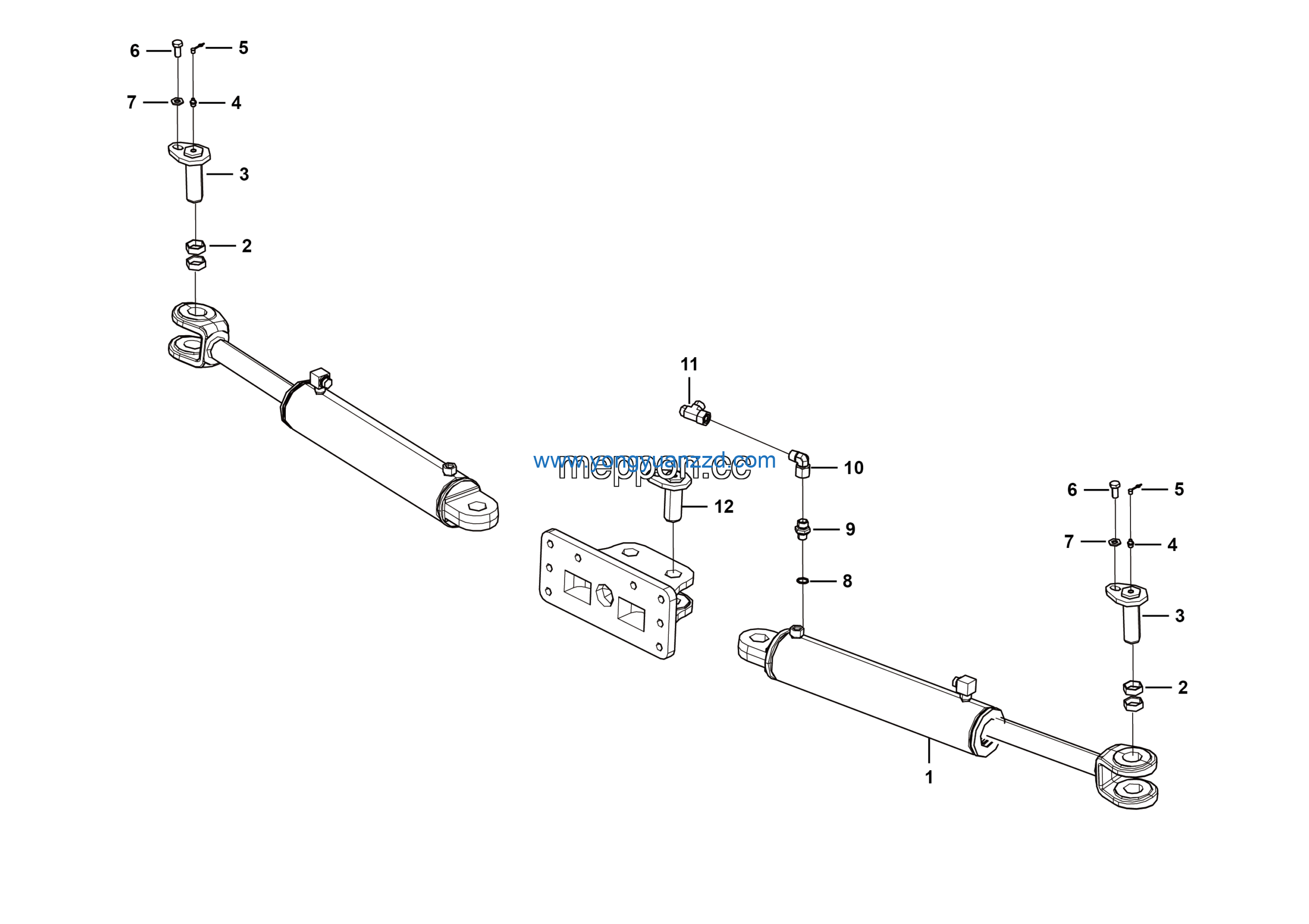

LGMG Off-Highway Dump Truck 2023 – STEERING CYLINDER ASSY – H1501-2715012834.S1A
Category: 2023 > Off-Highway Dump Truck > MT96L > M096LW3A0M302
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Combination joint LGB143-02213 | 4041001156 | 2 |
| 2 | Tee CC-22 | 4190001347 | 2 |
| 3 | Axis | 27150109901 | 2 |
| 4 | Steering cylinder HSGL-80*45*390-700 | 4120001483 | 2 |
| 5 | Sleeve | 27150109951 | 4 |
| 6 | Axis | 27150110951 | 2 |
| 7 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 8 | Butter nozzle cap JXHF-00006 | 4120000015 | 4 |
| 9 | Bolt GB5783-M12*25EpZn-8.8 | 4011000197 | 4 |
| 10 | Washer GB1230-12EpZn-45 | 4015000288 | 4 |
| 11 | O-ring GB3452.1-19.0*2.65G | 4030000280 | 2 |
| 12 | Straight joint LGB155-01822 | 4041000822 | 2 |
