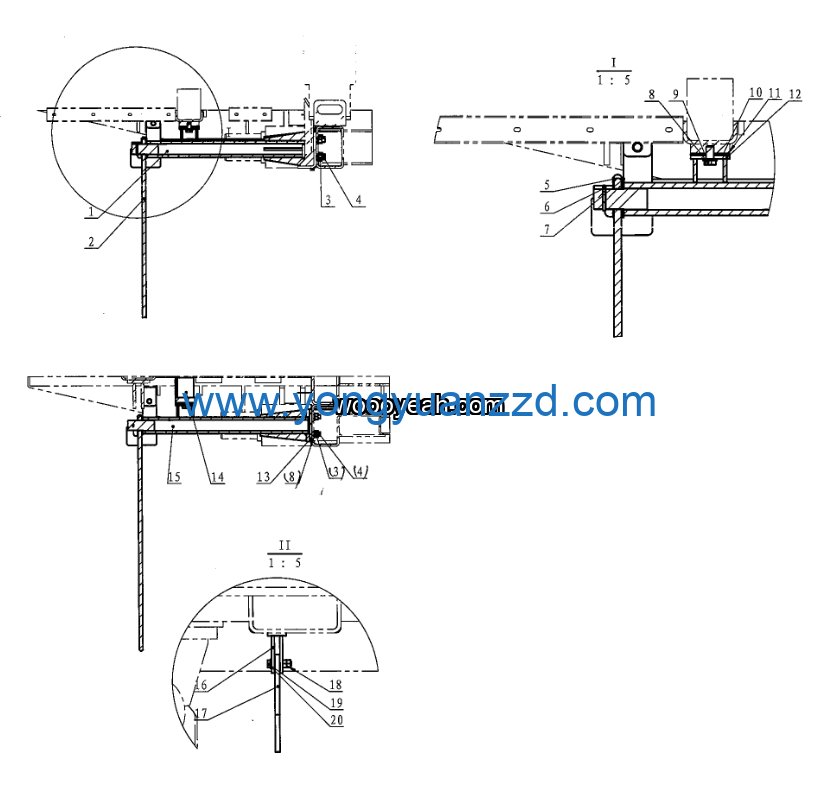

LGMG Off-Highway Dump Truck 2023 – Stone deflector assy – L1700-2717027419
Category: 2023 > Off-Highway Dump Truck > CMT96 > C0960WF82
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27170177262 | 4 |
| 2 | Plate | 27170177252 | 8 |
| 3 | Plate | 27170177952 | 4 |
| 4 | Plate | 27170251351 | 2 |
| 5 | Plate | 27170268111 | 2 |
| 6 | Plate | 27170251322 | 2 |
| 7 | Plate | 27170274301 | 4 |
| 8 | Plate | 27170274311 | 4 |
| 9 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 10 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 11 | Plate | 27170175152 | 2 |
| 12 | Bolt GB5782-M10*45EpZn-8.8 | 4011000451 | 4 |
| 13 | Plate | 27170261332 | 5 |
| 14 | Nut GB6170-M16EpZn-8 | 4013000016 | 16 |
| 15 | Bolt GB5782-M16*65EpZn-8.8 | 4011000459 | 16 |
| 16 | Plate | 27170157931 | 12 |
| 17 | Pin GB91-6.3*63EpZn-Q235A | 4016000113 | 4 |
| 18 | Plate | 27170157921 | 4 |
| 19 | Washer GB97.1-16EpZn-300HV | 4015000181 | 40 |
| 20 | Bolt GB5783-M16*30EpZn-8.8 | 4011000094 | 8 |
