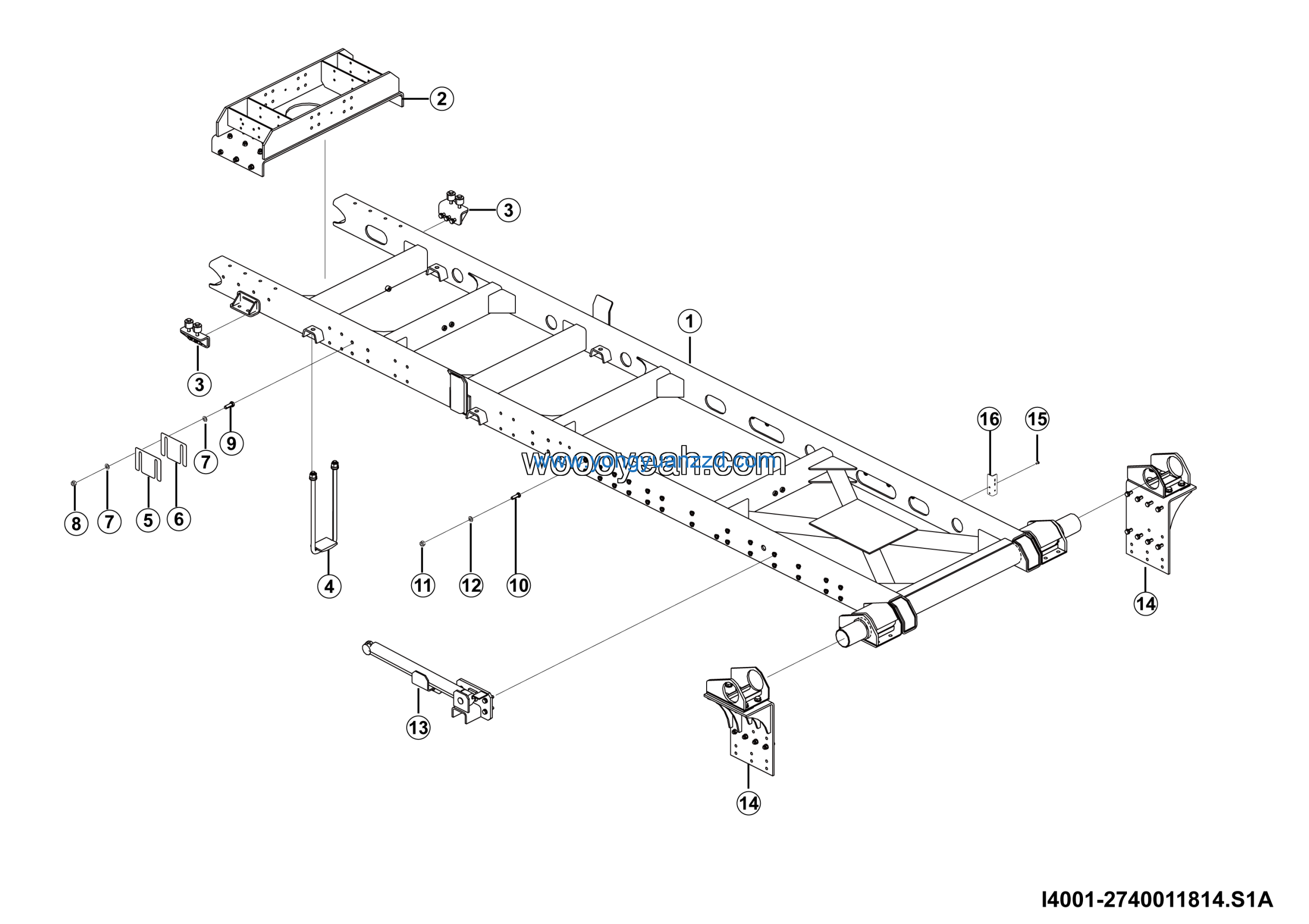

LGMG Off-Highway Dump Truck 2023 – Subframe installation – I4001-2740011814.S1A
Category: 2023 > Off-Highway Dump Truck > MT86H > M086HWG20
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5786-M16*1.5*50EpZn-8.8 | 4011000244 | 54 |
| 2 | Nut GB6171-M16*1.5EpZn-8 | 4013000096 | 54 |
| 3 | Washer GB97.1-16EpZn-300HV | 4015000181 | 108 |
| 4 | Auxiliary frame | 27400110321 | 1 |
| 5 | Rear flip mount assembly | 27400113981 | 1 |
| 6 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 2 |
| 7 | PLATE | 27170128381 | 1 |
| 8 | Subframe weldment | 27400115261 | 1 |
| 9 | AUXILIARY CARRIER | 27400102841 | 1 |
| 10 | Plate | 27400108401 | 2 |
| 11 | U-bolt mounting assy | 27400108351 | 4 |
| 12 | Adjustment gasket | 27400102132 | 4 |
| 13 | Adjustment gasket | 27400102122 | 4 |
| 14 | Washer GB97.1-18EpZn-300HV | 4015000182 | 32 |
| 15 | Nut GB6185.2-M18*1.5flZnyc-12-480 | 4013010239 | 16 |
| 16 | Bolt GB5785-M18*1.5*50flZnyc-12.9-480 | 4011010829 | 16 |
