LGMG Off-Highway Dump Truck 2023 – Suspension assy – G1200-2712017309
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M003

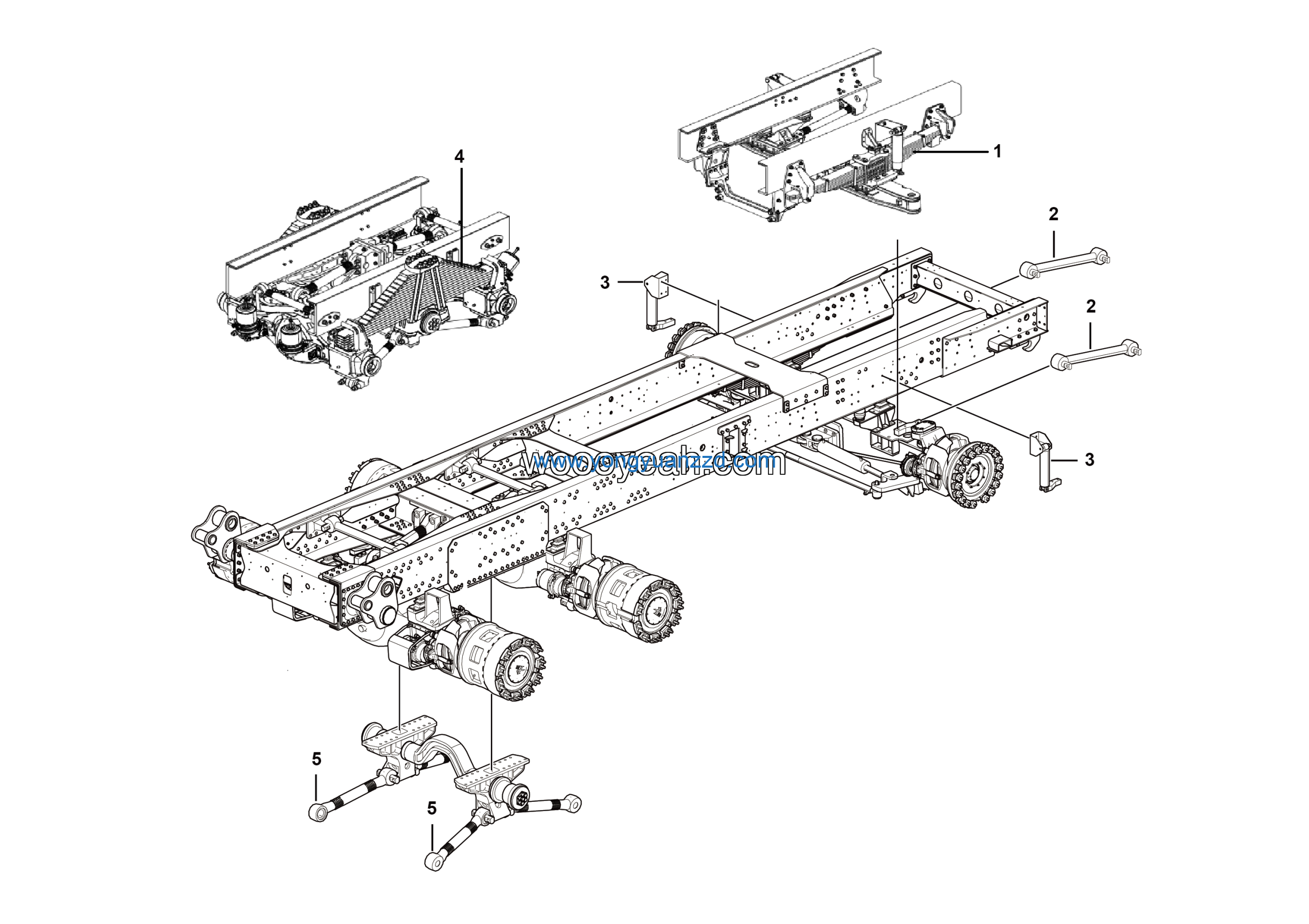

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pfront leaf-spring mounting assembly | 27120173181 | 1 |
| 2 | Front thrust rod install assembly | 27120114131 | 1 |
| 3 | Shock absorber assembly | 27120114141 | 1 |
| 4 | Frame | 27120173691 | 1 |
| 5 | Rear the thrusting rod mounting assembly | 27120173051 | 1 |
