LGMG Off-Highway Dump Truck 2023 – Suspension assy – G1201-2712017229
Category: 2023 > Off-Highway Dump Truck > CMT106 > C1060W3E0A012

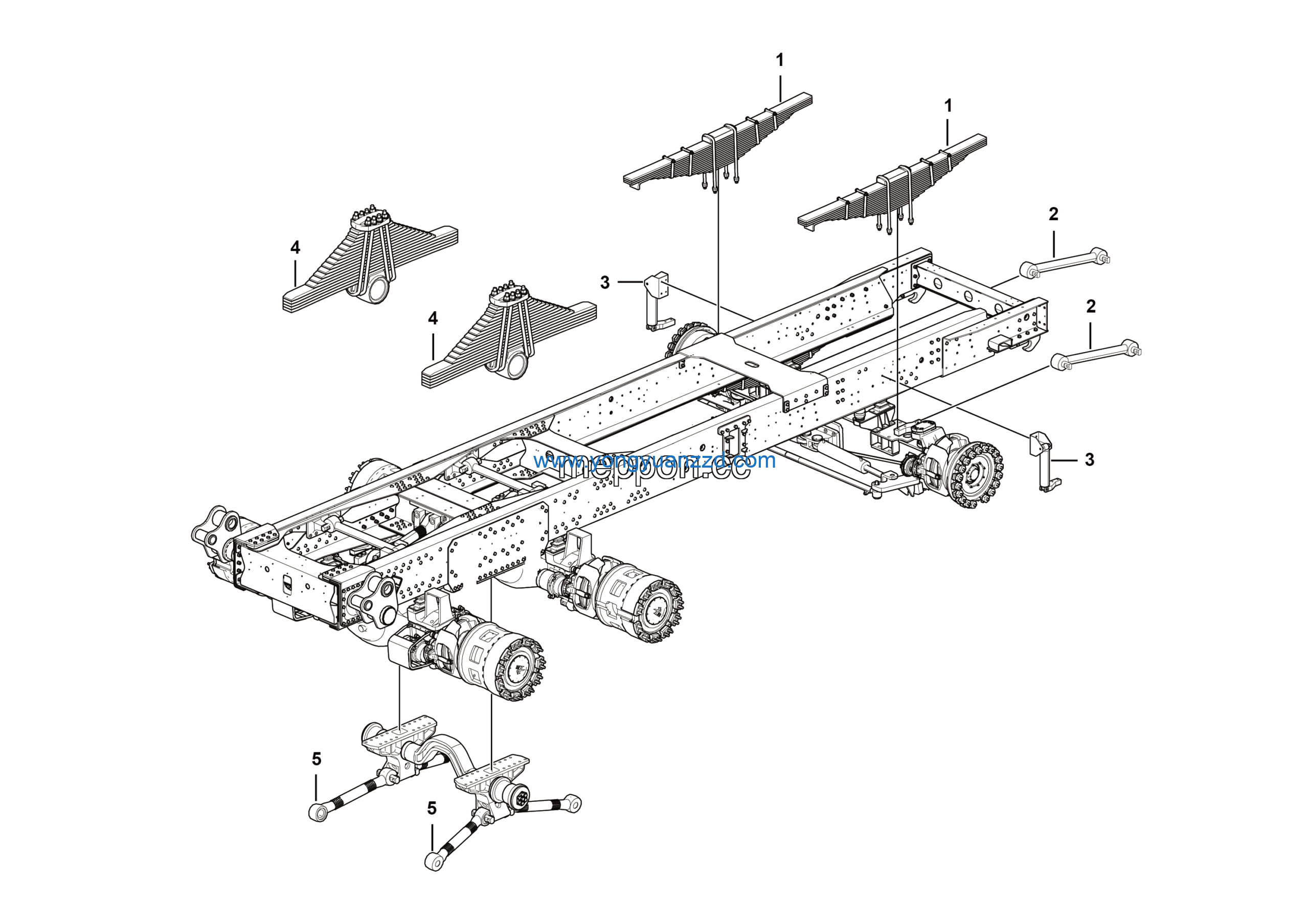

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Front leaf-spring mounting assembly | 27120172281 | 1 |
| 2 | Front thrust rod install assembly | 27120114131 | 1 |
| 3 | Shock absorber assembly | 27120114141 | 1 |
| 4 | Rear the spring assembly | 27120123241 | 1 |
| 5 | Rear the thrusting rod mounting assembly | 27120122471 | 1 |
