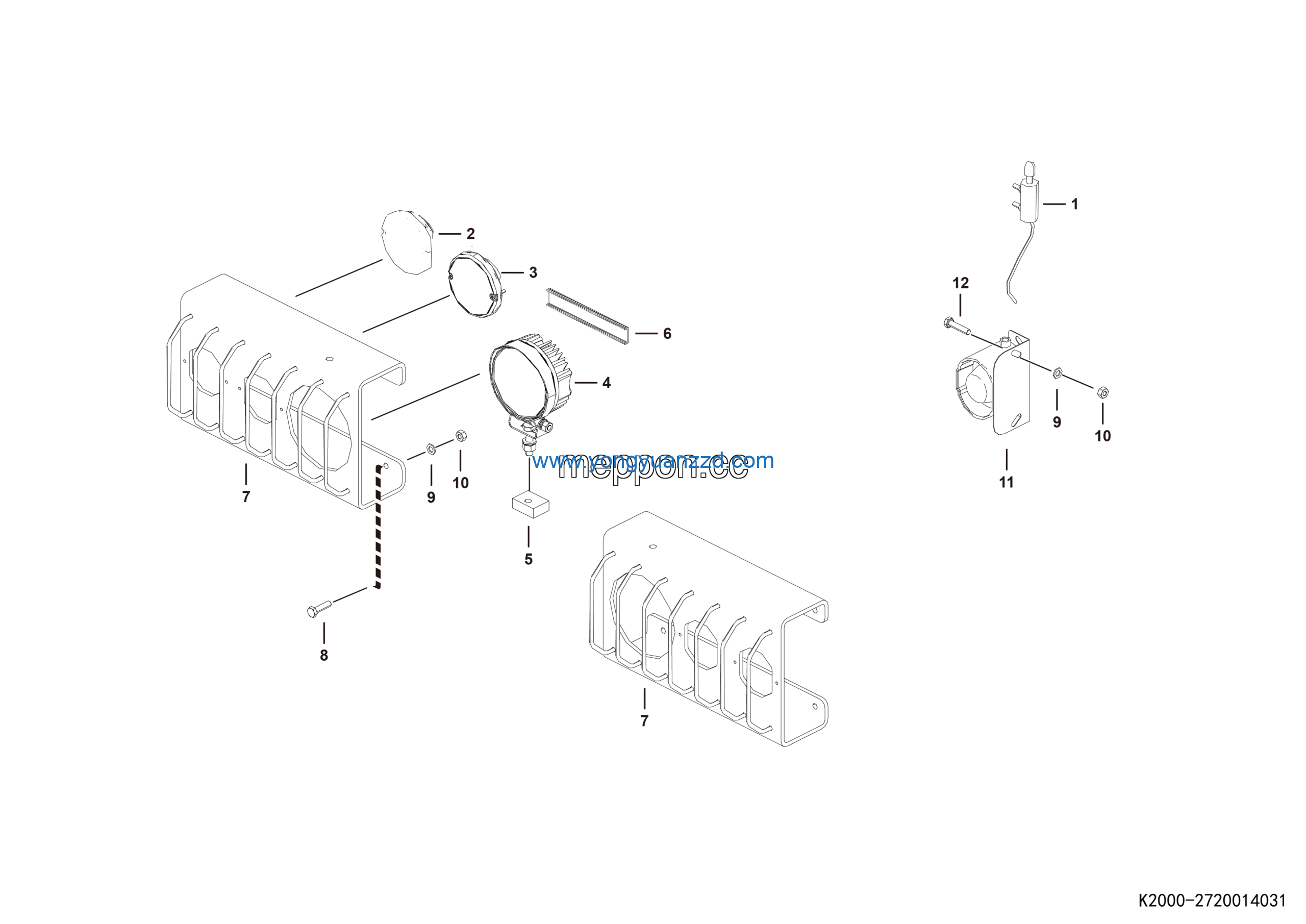

LGMG Off-Highway Dump Truck 2023 – Tail signal module – K2000-2720014031
Category: 2023 > Off-Highway Dump Truck > CMT60A > C060AW3E0A002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M8EpZn-8 | 4013000033 | 10 |
| 2 | Reverse buzzer DDB101-LG | 4130000294 | 1 |
| 3 | Bolt GB5783-M8*35EpZn-8.8 | 4011000195 | 2 |
| 4 | Cargo lifting switch XJK-010-09 | 4130000641 | 1 |
| 5 | Direction-indicator lamp HY-088Y-5LED | 4130000908 | 2 |
| 6 | Brake & position light HY-088Y-5-1LED | 4130000909 | 2 |
| 7 | LED Floodlamp SM6272 | 4130000610 | 2 |
| 8 | Rubber insert | 27200104361 | 2 |
| 9 | Guard | 27140105031 | 2 |
| 10 | Frame | 27200106981 | 2 |
| 11 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 8 |
| 12 | Washer GB97.1-8EpZn-300HV | 4015000072 | 10 |
