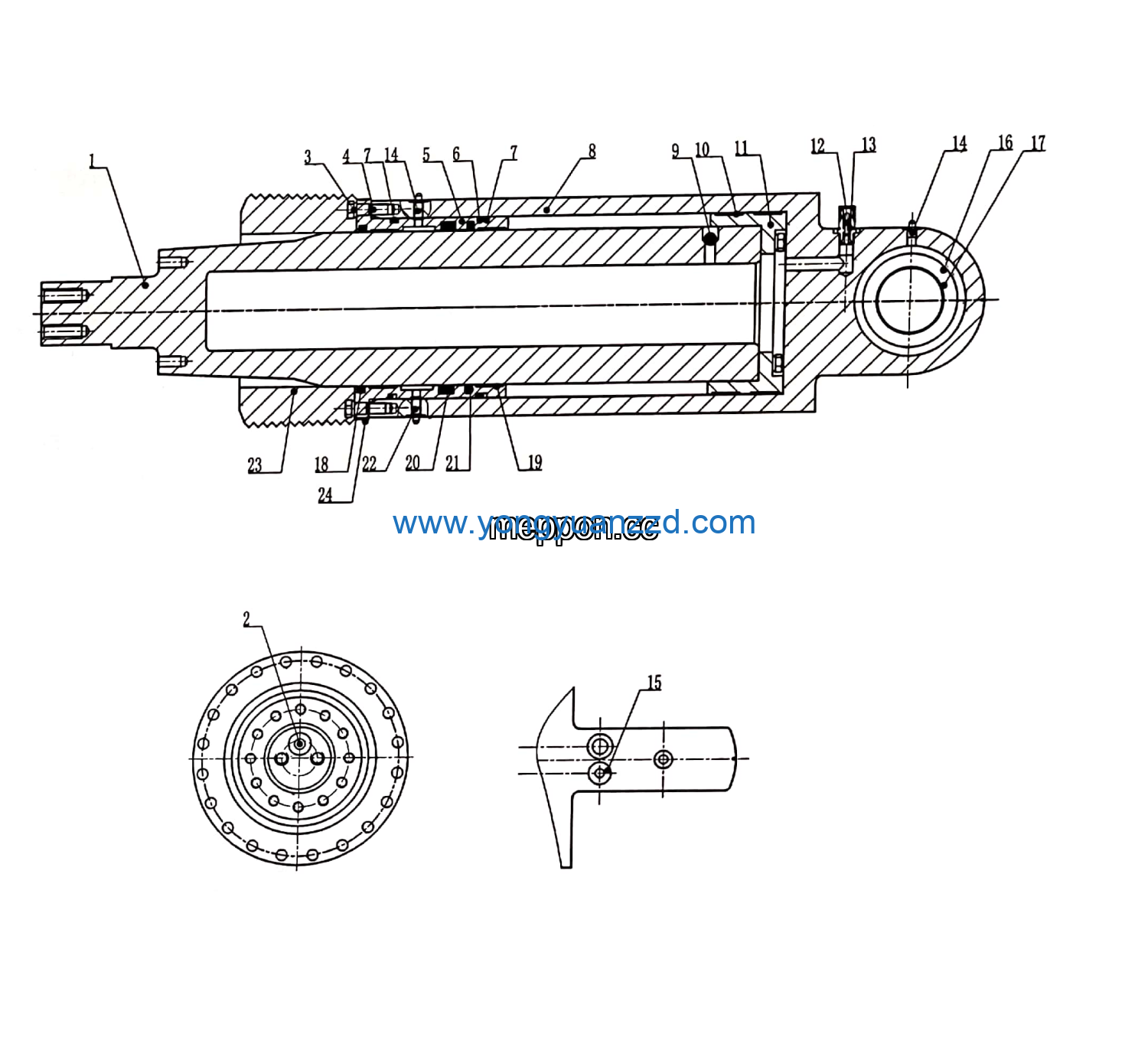

LGMG Off-Highway Dump Truck 2023 – THE FRONT OIL AND GAS SPRING ASSEMBLY – G0700-4110705000
Category: 2023 > Off-Highway Dump Truck > EL100 > R1260Y3A0A601
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Guide belt 1104040731 | 4110705000010 | 2 |
| 2 | Front suspension piston 1104041470 | 4110705000011 | 1 |
| 3 | Inflatable valve 1104040159 (QXF-32) | 4110705000001 | 1 |
| 4 | O-ring 1104040507 | 4110705000013 | 1 |
| 5 | Oil cup 1104040461 | 4110705000014 | 2 |
| 6 | ED block 1104041536 | 4110705000015 | 1 |
| 7 | Retaining ring 1108110016 | 4110705000016 | 1 |
| 8 | Bearing 1104040169 | 4110705000017 | 1 |
| 9 | Dust ring 1104040737 | 4110705000018 | 1 |
| 10 | Guide belt 1176000145 | 4110705000019 | 2 |
| 11 | Front suspension piston rod 1104041477 | 4110705000012 | 1 |
| 12 | U-ring 1104040733 | 4110705000020 | 1 |
| 13 | Stefan 1104041537 | 4110705000021 | 1 |
| 14 | Pressure relief valve 1104040458 | 4110705000022 | 1 |
| 15 | Dust cover 1104041468 | 4110705000023 | 1 |
| 16 | Clamp 1104040739 | 4110705000024 | 1 |
| 17 | ED block 1104040957 | 4110705000002 | 1 |
| 18 | Bolt 1108010249 | 4110705000003 | 30 |
| 19 | Elastic pad 1108060013 | 4110705000004 | 30 |
| 20 | Guide sleeve 1104040685 | 4110705000005 | 1 |
| 21 | Protection ring 1104040738 | 4110705000006 | 1 |
| 22 | O-ring 1104040736 | 4110705000007 | 2 |
| 23 | Front suspension cylinder welding assy 1102000235 | 4110705000008 | 1 |
| 24 | Steel ball 1104040158 | 4110705000009 | 1 |
