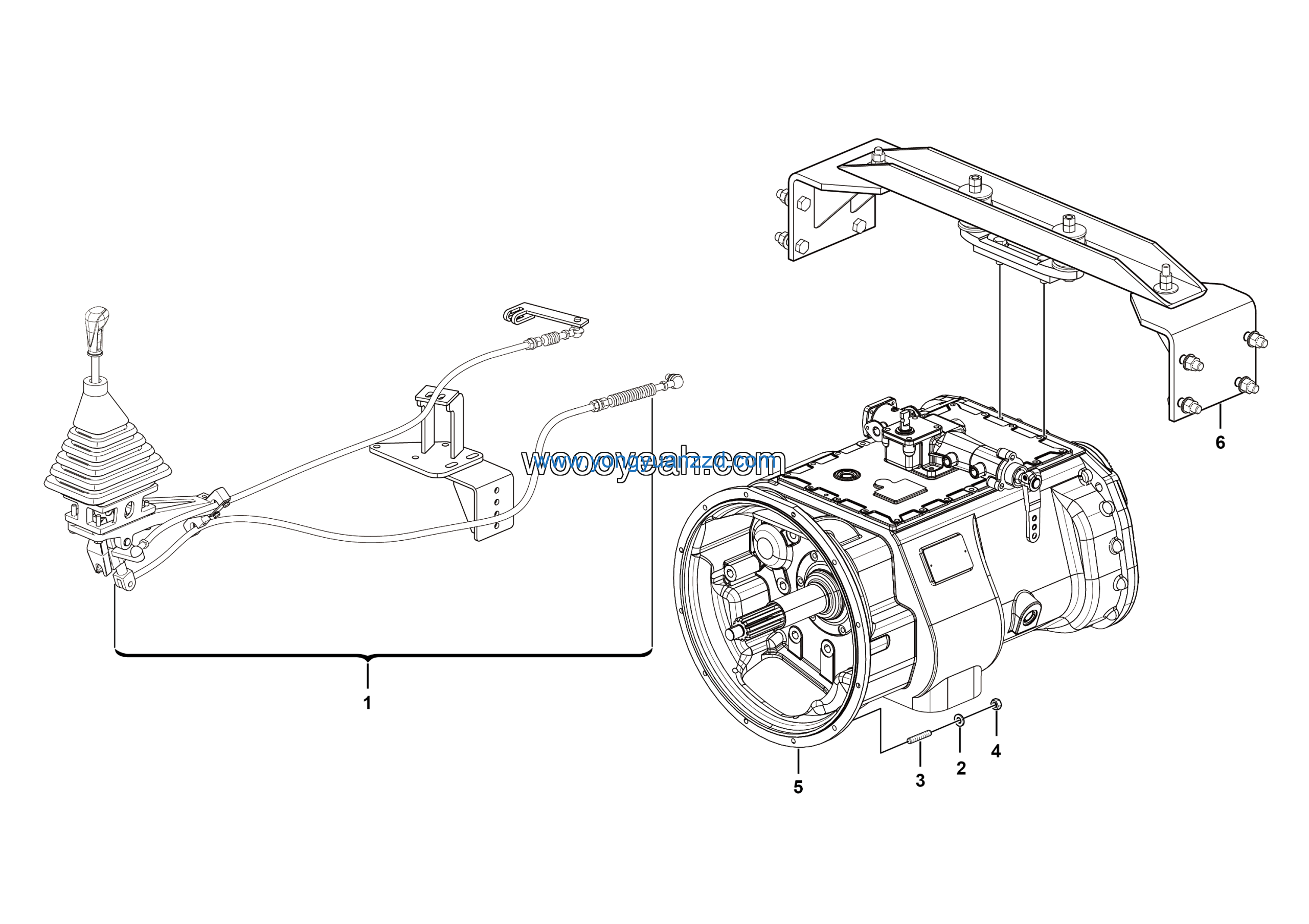

LGMG Off-Highway Dump Truck 2023 – Transmission assy – C0500-2705011028
Category: 2023 > Off-Highway Dump Truck > MT86H > M086HWE74
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | VARIABLE SPEED CONTROL ASSEMBLY | 27050103521 | 1 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 12 |
| 3 | STUD GB899-M10*45EpZn-8.8 | 4012010201 | 12 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 12 |
| 5 | Transmission box assy 7DS200+QH70L | 4110705416 | 1 |
| 6 | Transmission anchorage assembly | 27050105211 | 1 |
