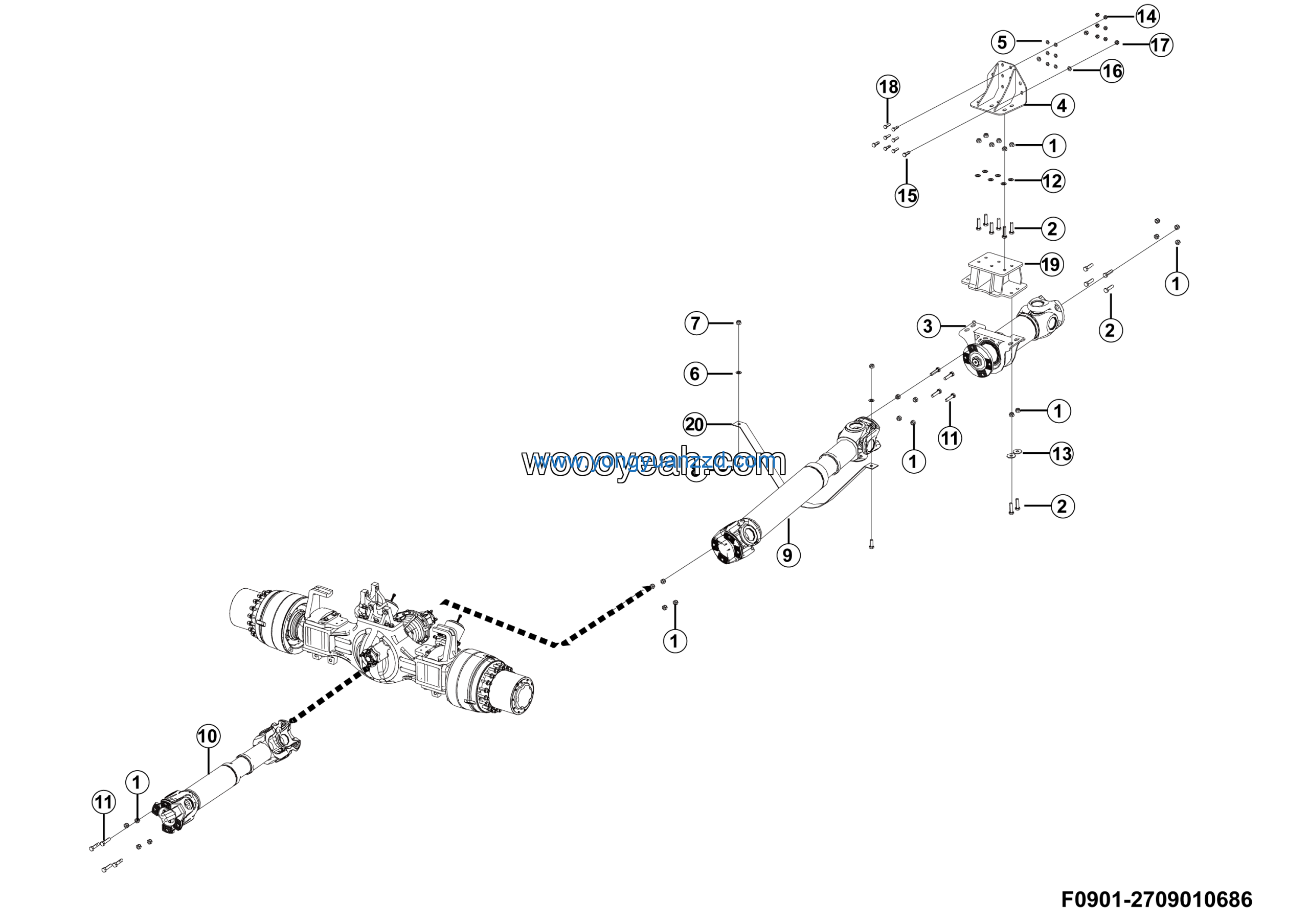

LGMG Off-Highway Dump Truck 2023 – Transmission shaft assy – F0901-2709010686
Category: 2023 > Off-Highway Dump Truck > CMT96 > C0960WF86
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | RR trabsmission shaft | 4110001384 | 1 |
| 2 | Bolt GB5785-M14*1.5*55flZnyc-12.9-480 | 4011011613 | 8 |
| 3 | Washer GB97.1-14flZnyc-300HV-480 | 4015010341 | 6 |
| 4 | Washer GB96.1-14flZnyc-300HV-480 | 4015010371 | 4 |
| 5 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 6 |
| 6 | Bolt GB5783-M12*35EpZn-8.8 | 4011000090 | 2 |
| 7 | Washer GB97.1-12EpZn-300HV | 4015000168 | 2 |
| 8 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 9 | Bolt GB5783-M10*35EpZn-10.9 | 4011000569 | 6 |
| 10 | Nut GB6185.2-M14*1.5-12 | 4013010266 | 30 |
| 11 | Bolt GB5786-M14*1.5*50flZnyc-12.9-480 | 4011010642 | 14 |
| 12 | Front drive shaft LG09-QCDZ-610 | 4110706880 | 1 |
| 13 | Reinforcing support weldment | 27090106832 | 1 |
| 14 | Washer GB97.1-10EpZn-300HV | 4015000162 | 6 |
| 15 | Washer GB97.1-14EpZn-300HV | 4015000177 | 2 |
| 16 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 17 | Bolt GB5783-M14*35EpZn-8.8 | 4011000191 | 2 |
| 18 | FR transmission shaft LG09-QCDZ-1275 | 4110706558 | 1 |
