LGMG Off-Highway Dump Truck 2023 – Upper thrust rod assy LG12-STG-738 – G0700-4110705649
Category: 2023 > Off-Highway Dump Truck > MT106H > M106HW3A0M318

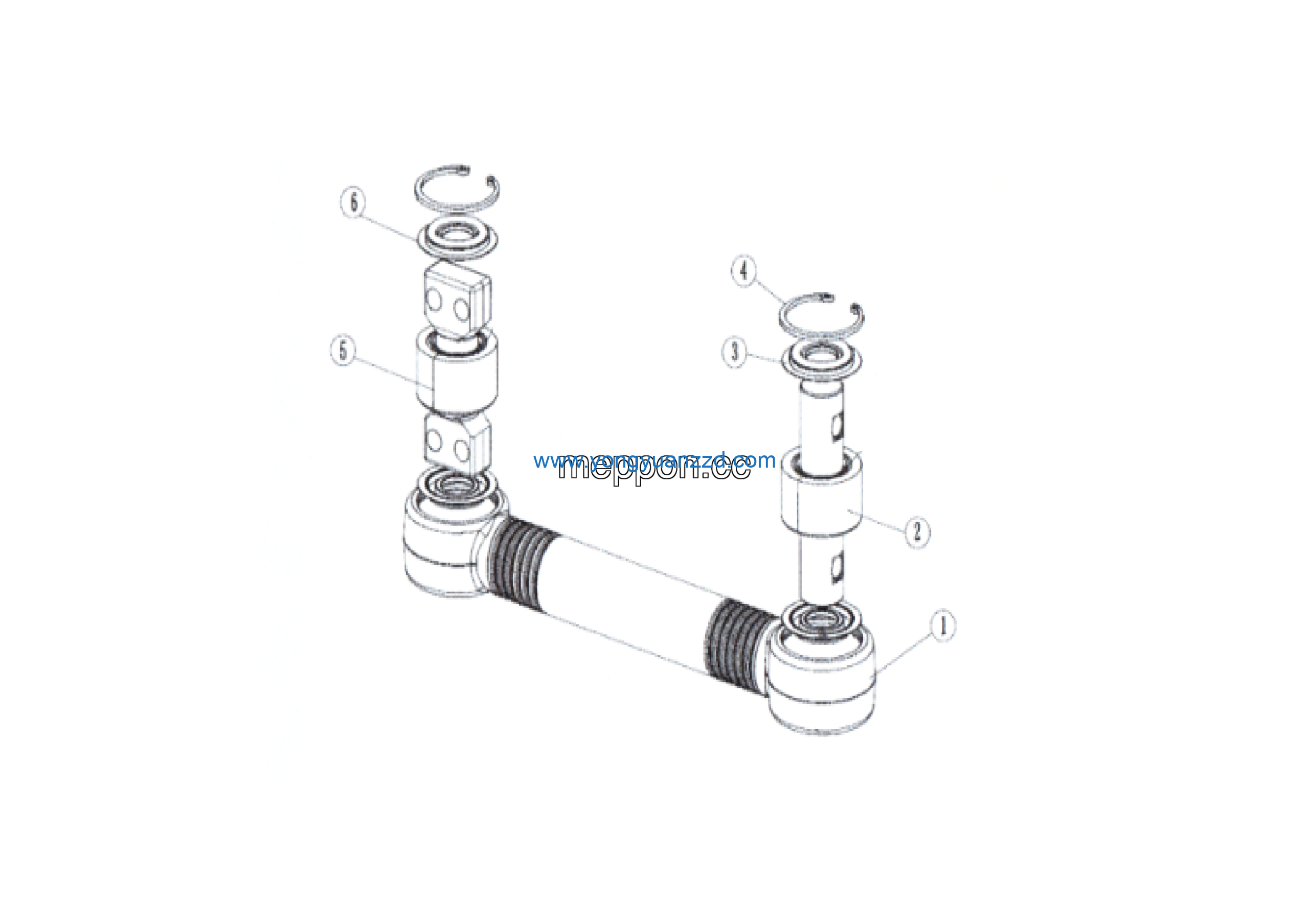

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Upper thrust rod body 738 | 4110705649001 | 1 |
| 2 | Joint spherical pin | 4110001985005 | 1 |
| 3 | Scraper seal | 4110001985002 | 1 |
| 4 | Retaining ring for hole | 4110001985004 | 1 |
| 5 | Double hole joint ball pin assy | 4110705577001 | 1 |
| 6 | Scraper seal | 4110705577002 | 1 |
