LGMG Off-Highway Dump Truck 2023 – zc – H6000-2760000174
Category: 2023 > Off-Highway Dump Truck > MT96L > M096LW3A0M305

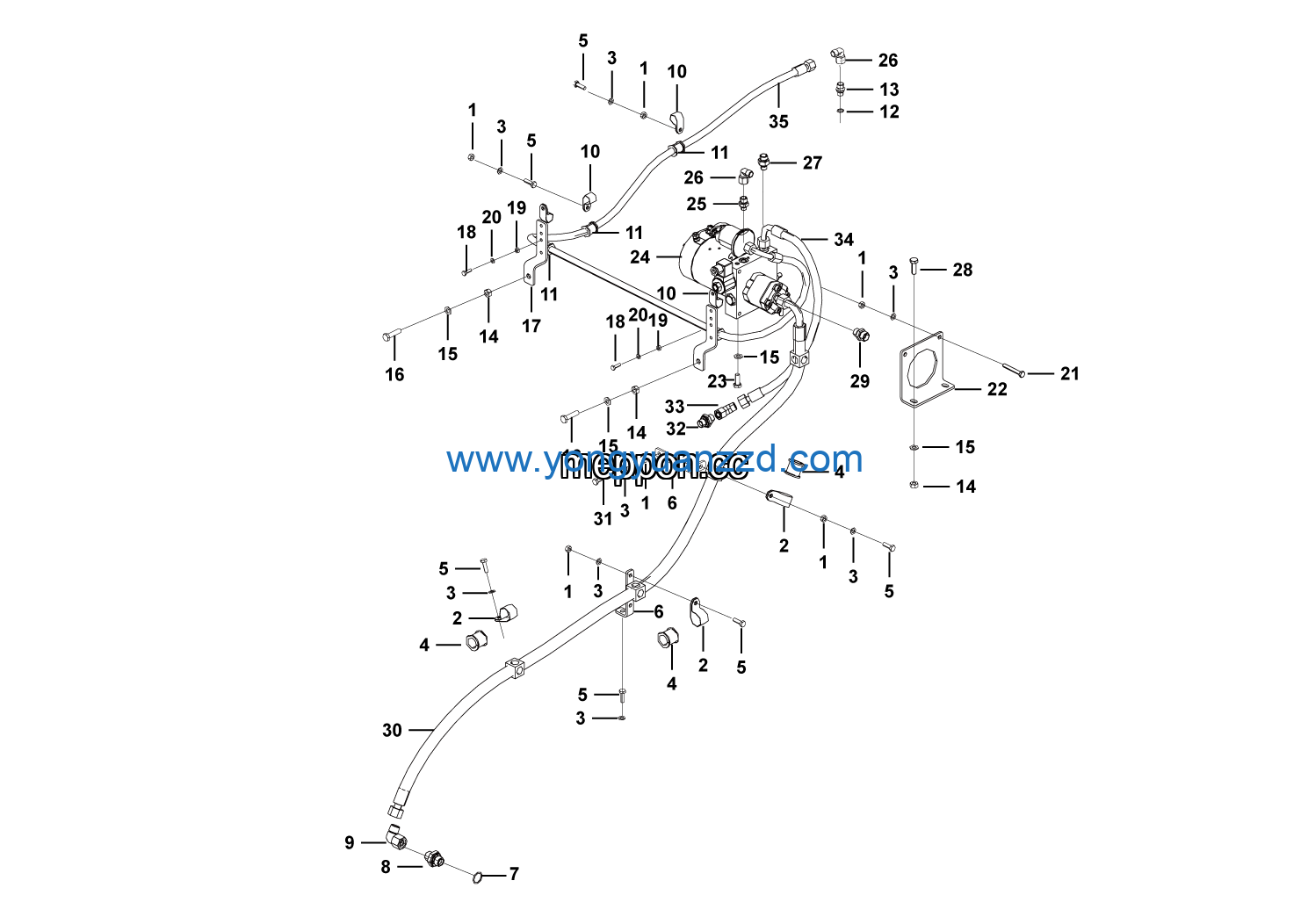

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe clamp LGB167-0116 | 4041001132 | 4 |
| 2 | Cushion sleeve LGB123-0116 | 4041001252 | 4 |
| 3 | O-ring LGB168-11124 | 4041000767 | 1 |
| 4 | Column end 1CG-16-04 | 4120702912 | 1 |
| 5 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 6 |
| 7 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 2 |
| 8 | Support | 27150127521 | 2 |
| 9 | Bolt GB5783-M6*20EpZn-8.8 | 4011000101 | 2 |
| 10 | Nut GB6170-M6EpZn-8 | 4013000028 | 2 |
| 11 | Nut GB6170-M8EpZn-8 | 4013000033 | 7 |
| 12 | Washer GB97.1-6EpZn-300HV | 4015000207 | 2 |
| 13 | BOLT GB5783-M8*55EpZn-8.8 | 4011010609 | 2 |
| 14 | Plate | 27150112741 | 1 |
| 15 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 16 | Power unit | 4120702906 | 1 |
| 17 | Straight joint 1CB-16-04WD | 4120001369 | 1 |
| 18 | Combination joint LGB143-01608 | 4041001023 | 2 |
| 19 | Straight joint 1CB-18-04WD | 4120708214 | 1 |
| 20 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 21 | Straight joint 1CB-22-06WD | 4120005156 | 1 |
| 22 | Pipe clamp LGB167-0426 | 4041001169 | 3 |
| 23 | Hose LGB165-006170 | 4120711568 | 1 |
| 24 | Bolt GB5783-M8*35EpZn-8.8 | 4011000195 | 1 |
| 25 | Straight joint LGB155-01818 | 4041000111 | 1 |
| 26 | JOINT LGB143-11810 | 4041001464 | 1 |
| 27 | Hose LGB165-005065 | 4041000851-003 | 1 |
| 28 | Hose LGB128-004260 | 4041010658-002 | 1 |
| 29 | Washer GB97.1-8EpZn-300HV | 4015000072 | 9 |
| 30 | Cushion sleeve LGB123-0426 | 4041001484 | 3 |
| 31 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 6 |
| 32 | Plate | 27100118691 | 2 |
| 33 | O-ring GB3452.1-23.6*2.65G | 4030000097 | 1 |
| 34 | Straight joint LGB155-02222 | 4041000109 | 1 |
| 35 | Combination joint LGB143-02213 | 4041001156 | 1 |
