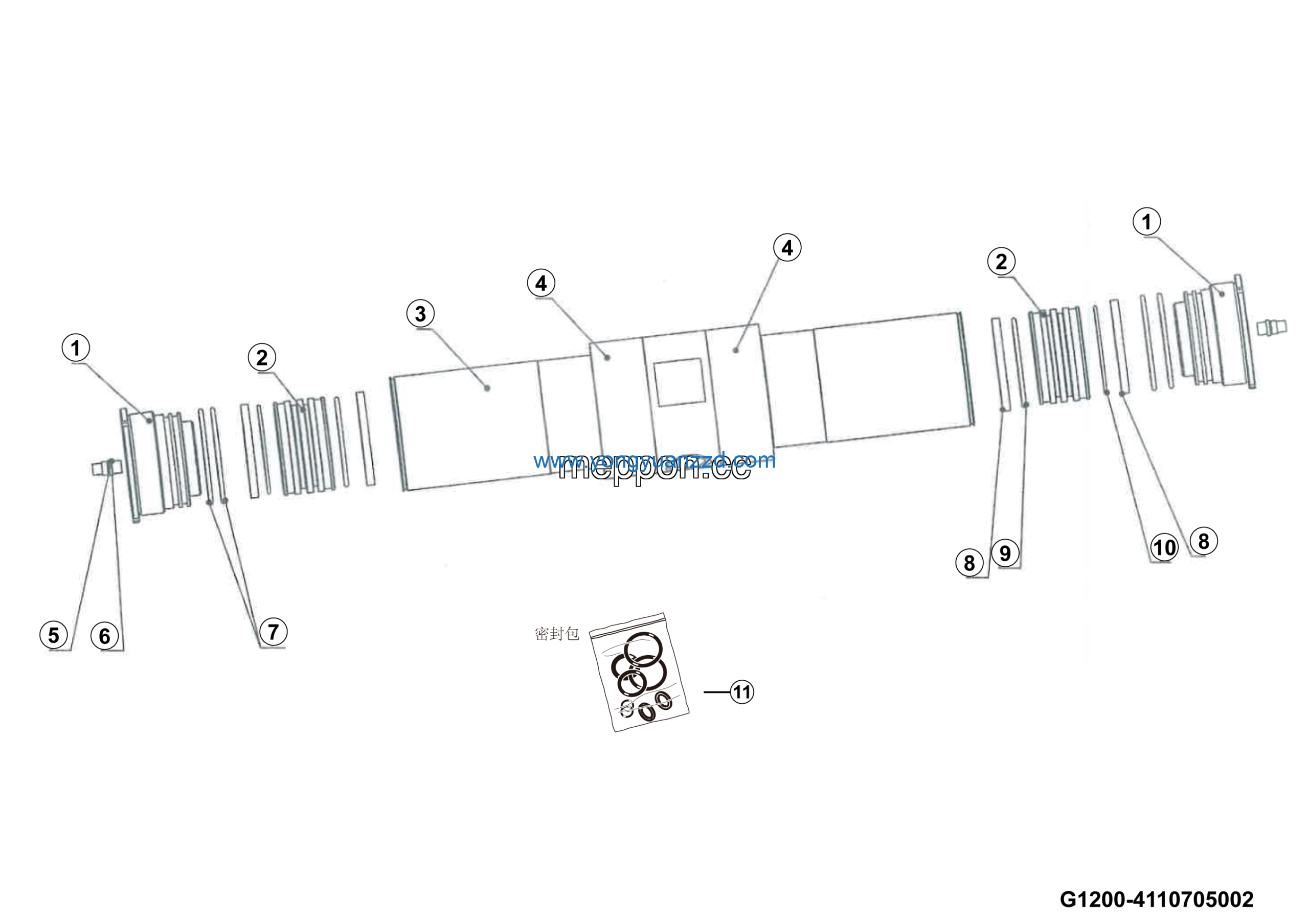

LGMG Off-Highway Dump Truck 2024 – Accumulator assy sxnq-120-282 – G1200-4110705002
Category: 2024 > Off-Highway Dump Truck > RTH136 > R1000Y3A0A106
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Stepseal 104.9*120*6.3 | 4110705002010 | 2 |
| 2 | Accumulator seal kit | 4110705002011 | 1 |
| 3 | Gas chamber cap | 4110705002001 | 2 |
| 4 | Floating piston | 4110705002002 | 2 |
| 5 | Cylinder barrel | 4110705002003 | 1 |
| 6 | Separator | 4110705002004 | 2 |
| 7 | Gas charging valve | 4110705002005 | 2 |
| 8 | O-ring 1104040507 | 4110705000013 | 2 |
| 9 | O-ring φ109*5.3 | 4110705002007 | 4 |
| 10 | Guide band 115*120*9.7 | 4110705002008 | 4 |
| 11 | Aq seal 107*120*8.3 | 4110705002009 | 2 |
