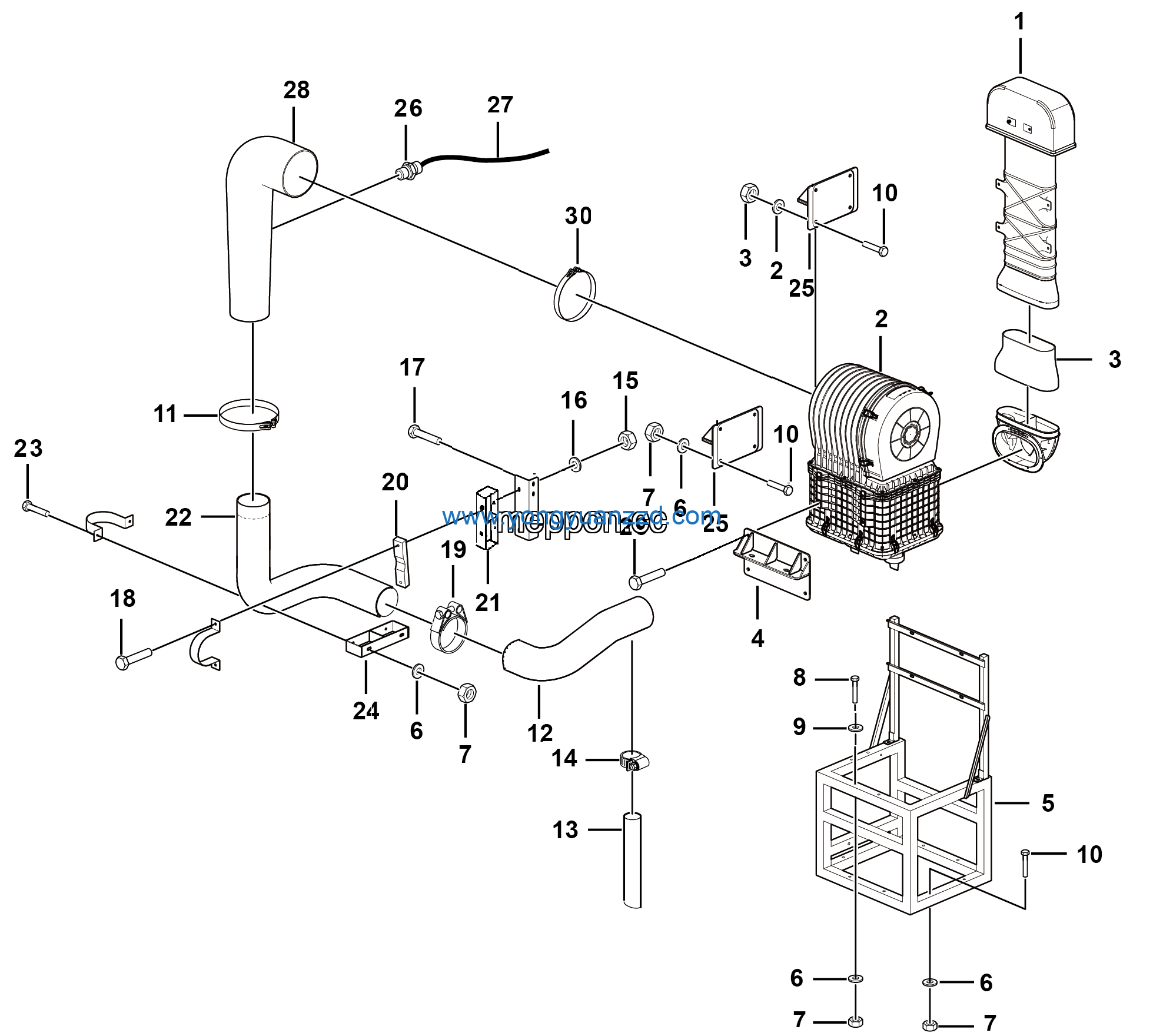

LGMG Off-Highway Dump Truck 2024 – Air filter assy – A1800-2718010442.S1B
Category: 2024 > Off-Highway Dump Truck > CMT66A > C066AW3E0A004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M12*155EpZn-8.8 | 4011000392 | 6 |
| 2 | No longer used | 4019010001 | 3 |
| 3 | Cargo tank assembly | 27180104451 | 1 |
| 4 | Pipe | 27180102192 | 1 |
| 5 | Hose clamp JB8870-D32 | 4017000011 | 2 |
| 6 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 7 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 8 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 2 |
| 9 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 4 |
| 10 | Tube clamp | 27180103371 | 2 |
| 11 | High level intake assy | 4190002593 | 1 |
| 12 | Rubber pad | 27180103401 | 2 |
| 13 | Cargo tank | 27180104501 | 2 |
| 14 | Air reservoir fixed bracket | 27180104441 | 1 |
| 15 | Bolt GB5782-M12*75EpZn-8.8 | 4011000874 | 6 |
| 16 | Plate | 27180104461 | 1 |
| 17 | Support assembly ⅱ | 27180103021 | 1 |
| 18 | Vacuum level alarm | 4110001427 | 1 |
| 19 | Wire | 27200107621 | 1 |
| 20 | Service brake assembly | 27180104431 | 1 |
| 21 | Bolt GB16674.1-M10*25EpZn-12.9 | 4011010295 | 8 |
| 22 | Air filter assy（Donaldson） | 4190002628 | 1 |
| 23 | T-bolt clamp φ188-φ196 | 4190002630 | 1 |
| 24 | Connecting hose | 4190002594 | 1 |
| 25 | Support assembly ⅰ | 27180102961 | 1 |
| 26 | Support | 27180105251 | 1 |
| 27 | Washer GB96.1-12EpZn-300HV | 4015000186 | 14 |
| 28 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 14 |
| 29 | Bolt GB5782-M12*165EpZn-8.8 | 4011000057 | 2 |
| 30 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
