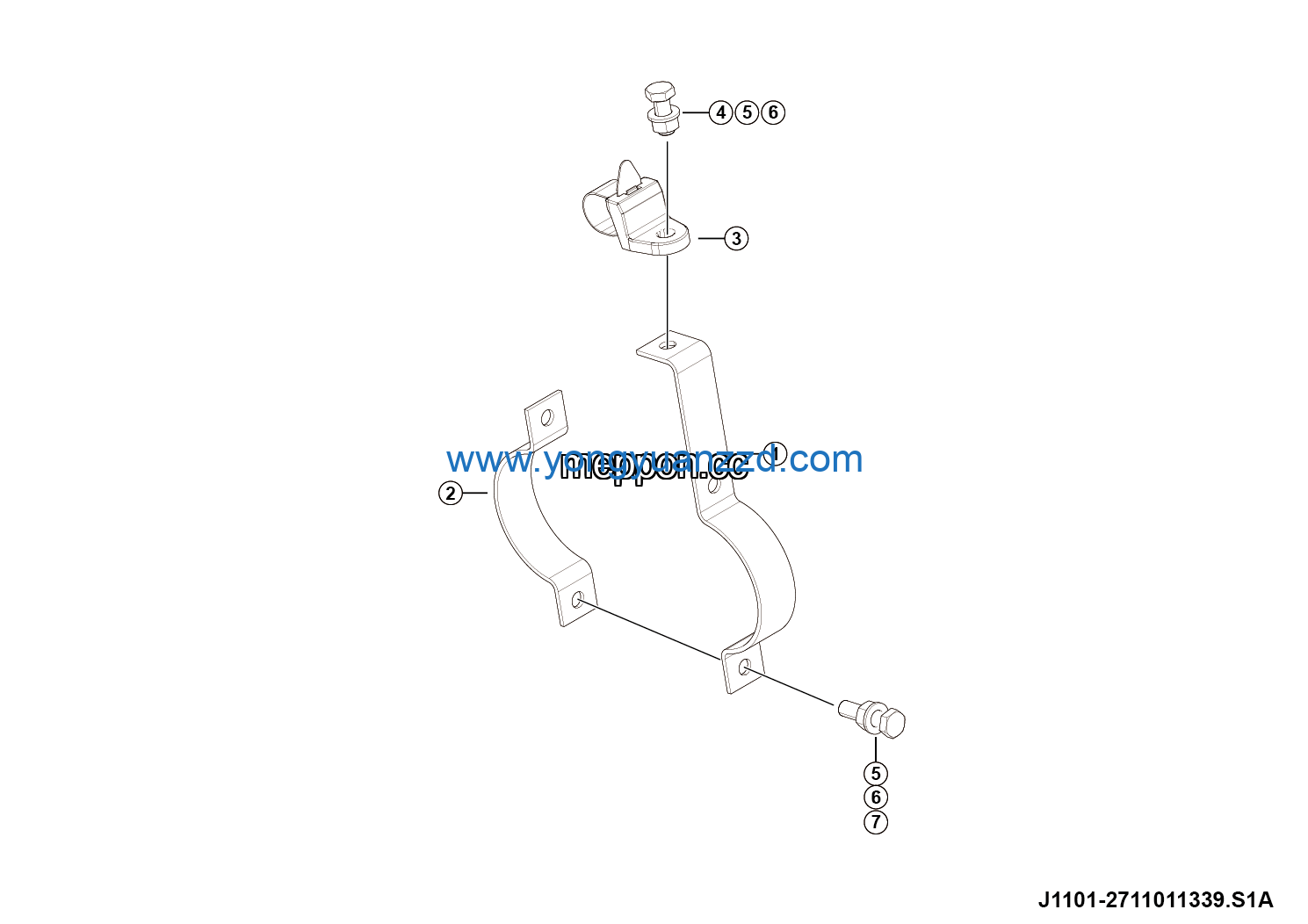

LGMG Off-Highway Dump Truck 2024 – Air hose fixing bracket assy 02 – J1101-2711011339.S1A
Category: 2024 > Off-Highway Dump Truck > CMT106H > C106HW3E0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Support | 27100108931 | 1 |
| 2 | Bracket 2 | 27100108201 | 1 |
| 3 | Cable tie HS-J117 | 4130704969 | 1 |
| 4 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 3 |
| 6 | Nut GB6170-M10EpZn-8 | 4013000007 | 3 |
| 7 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 2 |
