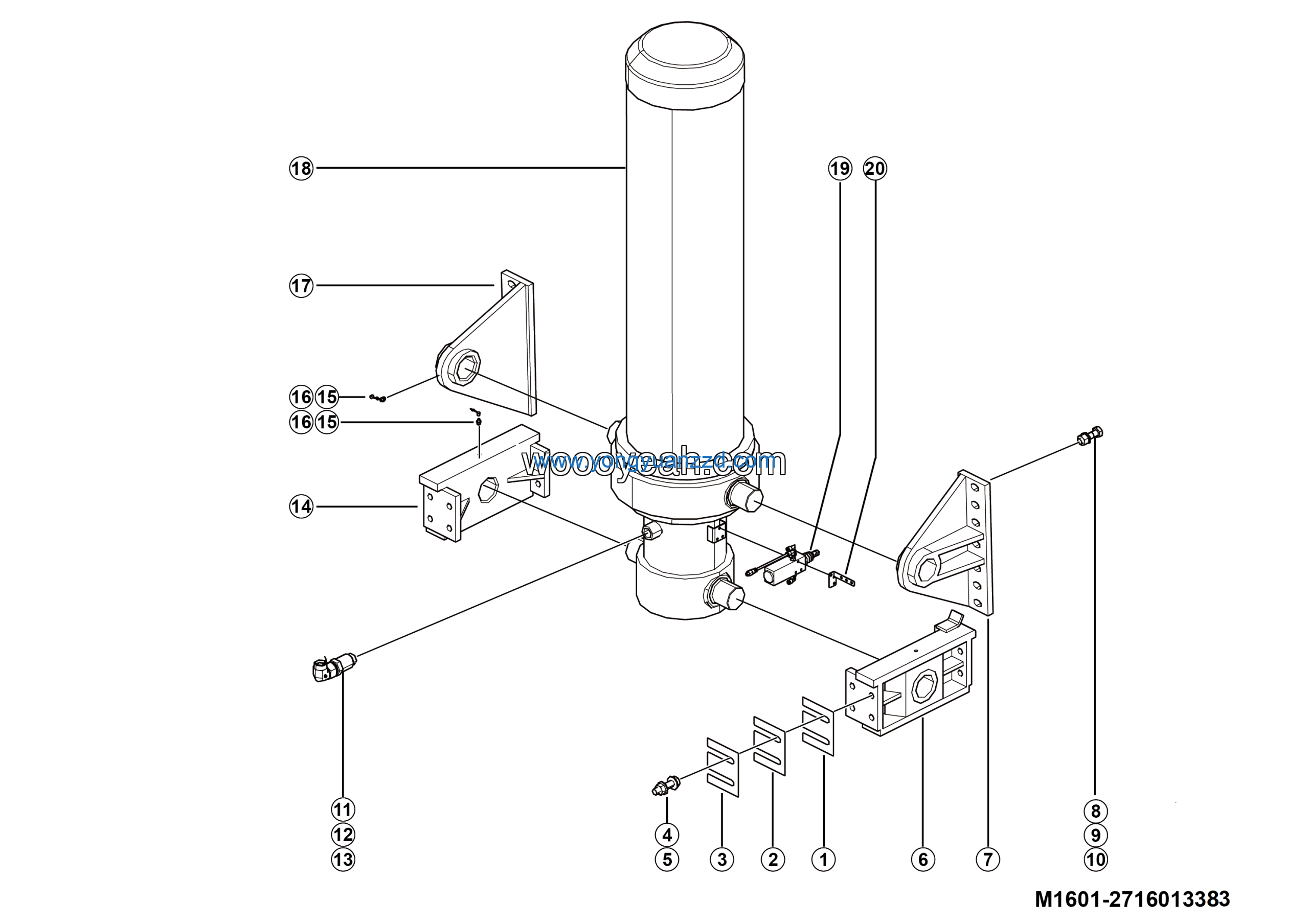

LGMG Off-Highway Dump Truck 2024 – ASM-202 super oil cylinder – M1601-2716013383
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M338
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M20flZnyc-12-480 | 4013010256 | 20 |
| 2 | JOINT LGB143-03625 | 4041001211 | 1 |
| 3 | Nipple | 27160120241 | 1 |
| 4 | O-ring GB3452.1-32.5*2.65G | 4030000276 | 1 |
| 5 | Frame bracket（RH） | 4120710299 | 1 |
| 6 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 7 | Butter nozzle cap JXHF-00006 | 4120000015 | 4 |
| 8 | Upr bracket 01823511 | 4120712004 | 1 |
| 9 | Lifting cylinder 4TG-F202*5060ZZ-02Q | 4120711415 | 1 |
| 10 | Limit valve | 4120001018 | 1 |
| 11 | Trimmed gasket | 27160106411 | 1 |
| 12 | Plate | 27160128621 | 1 |
| 13 | Trimmed gasket | 27160106421 | 1 |
| 14 | Trimmed gasket | 27160106431 | 1 |
| 15 | Bolt QC340-M18*1.5*60EpZn-10.9 | 4011011616 | 16 |
| 16 | Nut GB6177.2-RLM18*1.5EpZn-10 | 4013010546 | 16 |
| 17 | Frame bracket（LH） | 4120710300 | 1 |
| 18 | Upr bracket 01823510 | 4120712003 | 1 |
| 19 | Bolt GB5782-M20*70flZnyc-12.9-480 | 4011010764 | 20 |
| 20 | Washer GB1230-20EpZn-45 | 4015000002 | 20 |
