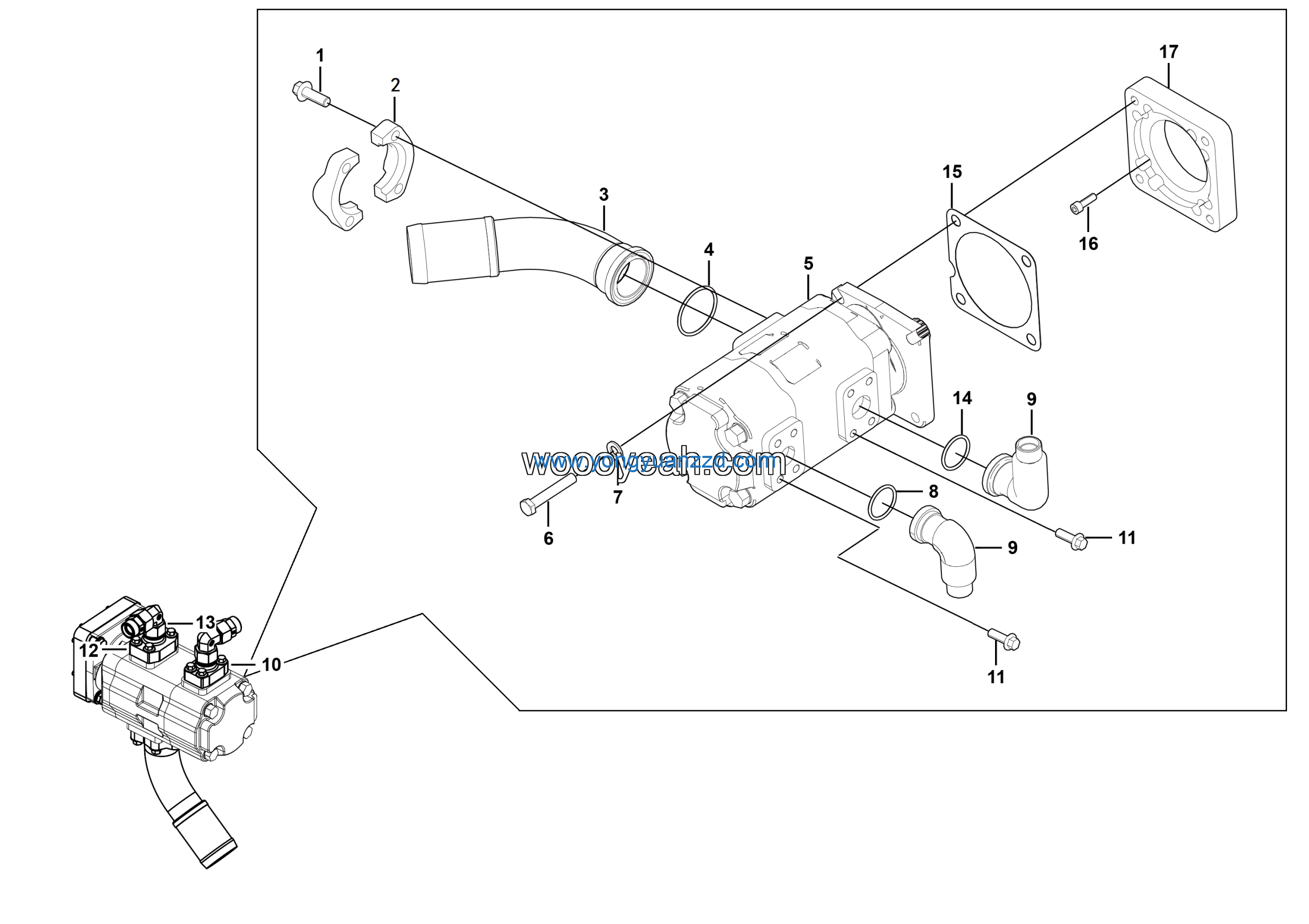

LGMG Off-Highway Dump Truck 2024 – ASM-6350 Gear Pump assy K01 – H1501-2715012534
Category: 2024 > Off-Highway Dump Truck > CMT96 > C0960WG18
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Joint | 27150123831 | 1 |
| 2 | Bolt GB16674.1-M10*35EpZn-8.8 | 4011000164 | 8 |
| 3 | Joint | 27150123841 | 1 |
| 4 | Joint DA22LOMDCF | 4120710847 | 2 |
| 5 | O-ring GB3452.1-37.5*3.55G | 4030000029 | 1 |
| 6 | Washera | 27150112891 | 1 |
| 7 | Screw GB70.1-M8*25EpZn-12.9 | 4014010141 | 8 |
| 8 | CARGO TANK ASSEMBLY | 27150113721 | 1 |
| 9 | Bolt GB16674.1-M12*35EpZn-8.8 | 4011000477 | 4 |
| 10 | Split flange LGB117-320760 | 4041000009 | 1 |
| 11 | Pipe | 27160110101 | 1 |
| 12 | O-ring GB3452.1-56.0*3.55G | 4030000133 | 1 |
| 13 | Gear pump 63/50-LG01 | 4120709580 | 1 |
| 14 | Bolt GB5783-M12*35flZnyc-12.9-480 | 4011010579 | 4 |
| 15 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 16 | O-ring GB3452.1-32.5*3.55G | 4030000026 | 1 |
| 17 | Combination joint LGB143-03019 | 4041001262 | 2 |
