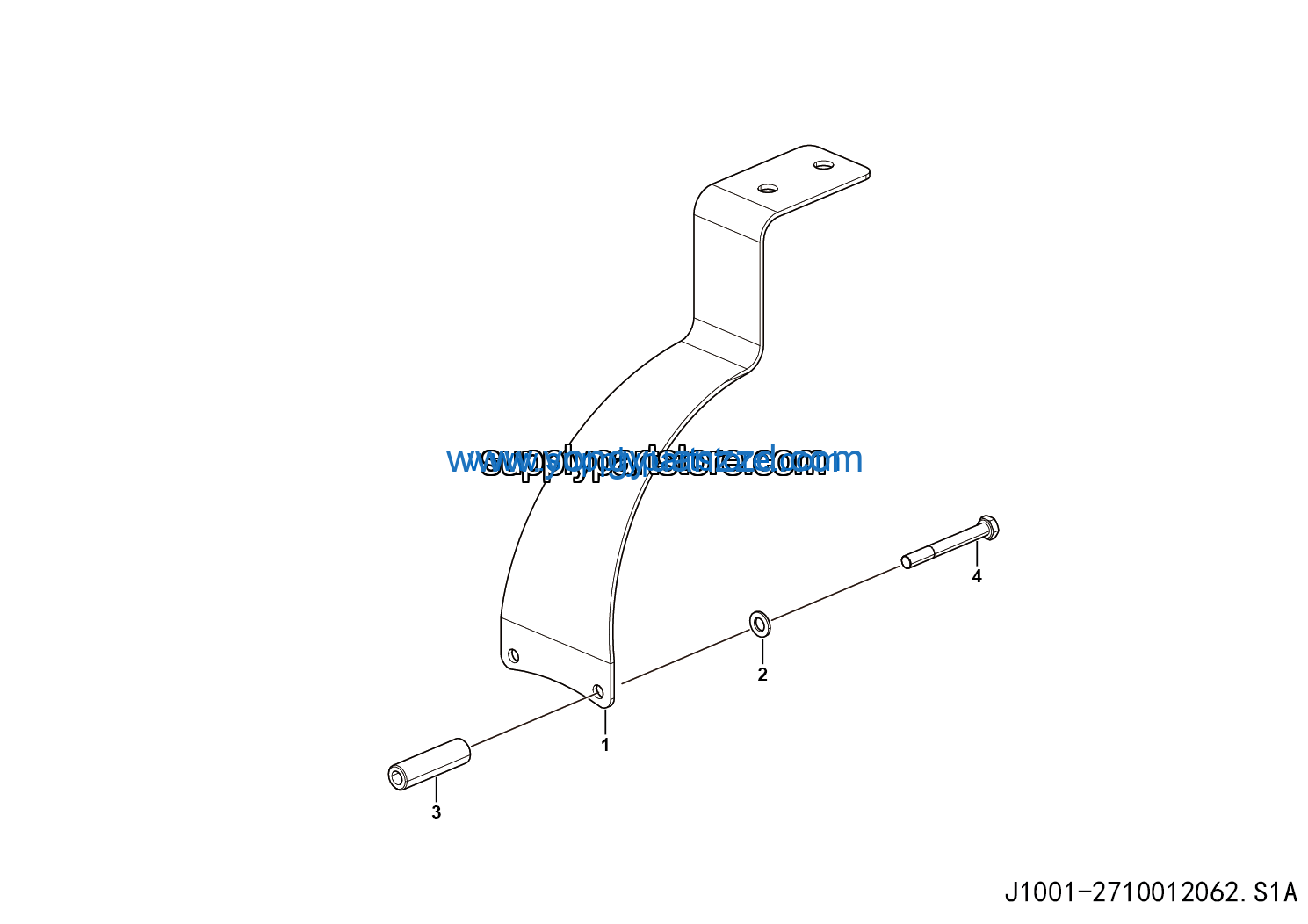

LGMG MT106H 2025 – ASM-Air Pipe Support Installation assy 02 – J1001-2710012062.S1A
Category: 2025 > MT106H > M106HW3A0M703M106HW3A0M703
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe bracket | 27100107402 | 1 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 3 | Sleeve | 27100107421 | 2 |
| 4 | Bolt GB5782-M10*85EpZn-8.8 | 4011010016 | 2 |
