LGMG Off-Highway Dump Truck 2024 – ASM-BRACKET – H1502-2715013071.S1A
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M373

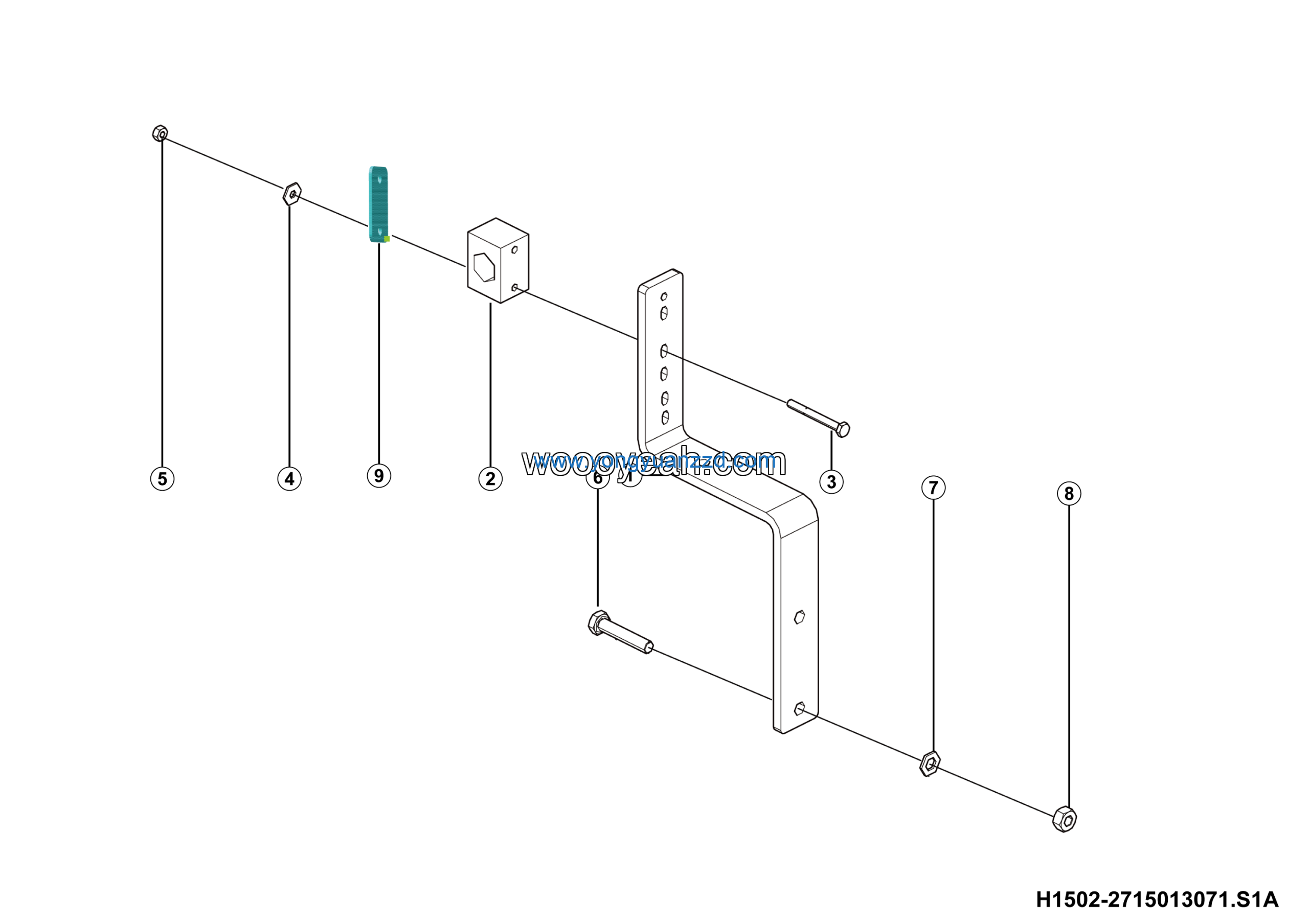

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Z type bracket 345*40*153 | 27150132441 | 1 |
| 2 | Pipe clamp TLPG-325 | 4120712636 | 2 |
| 3 | Bolt GB5782-M6*55EpZn-8.8 | 4011010517 | 4 |
| 4 | Washer GB96.1-6flZnyc-300HV-480 | 4015010296 | 4 |
| 5 | Nut GB6170-M6EpZn-8 | 4013000028 | 4 |
| 6 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 2 |
| 7 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 8 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 9 | Blind flange 48*30*3 | 27150132491 | 1 |
