LGMG Off-Highway Dump Truck 2024 – ASM-Bracket installation assy 02 – H1501-2715012475.S1A
Category: 2024 > Off-Highway Dump Truck > CMT106 > C1060W3E0A116

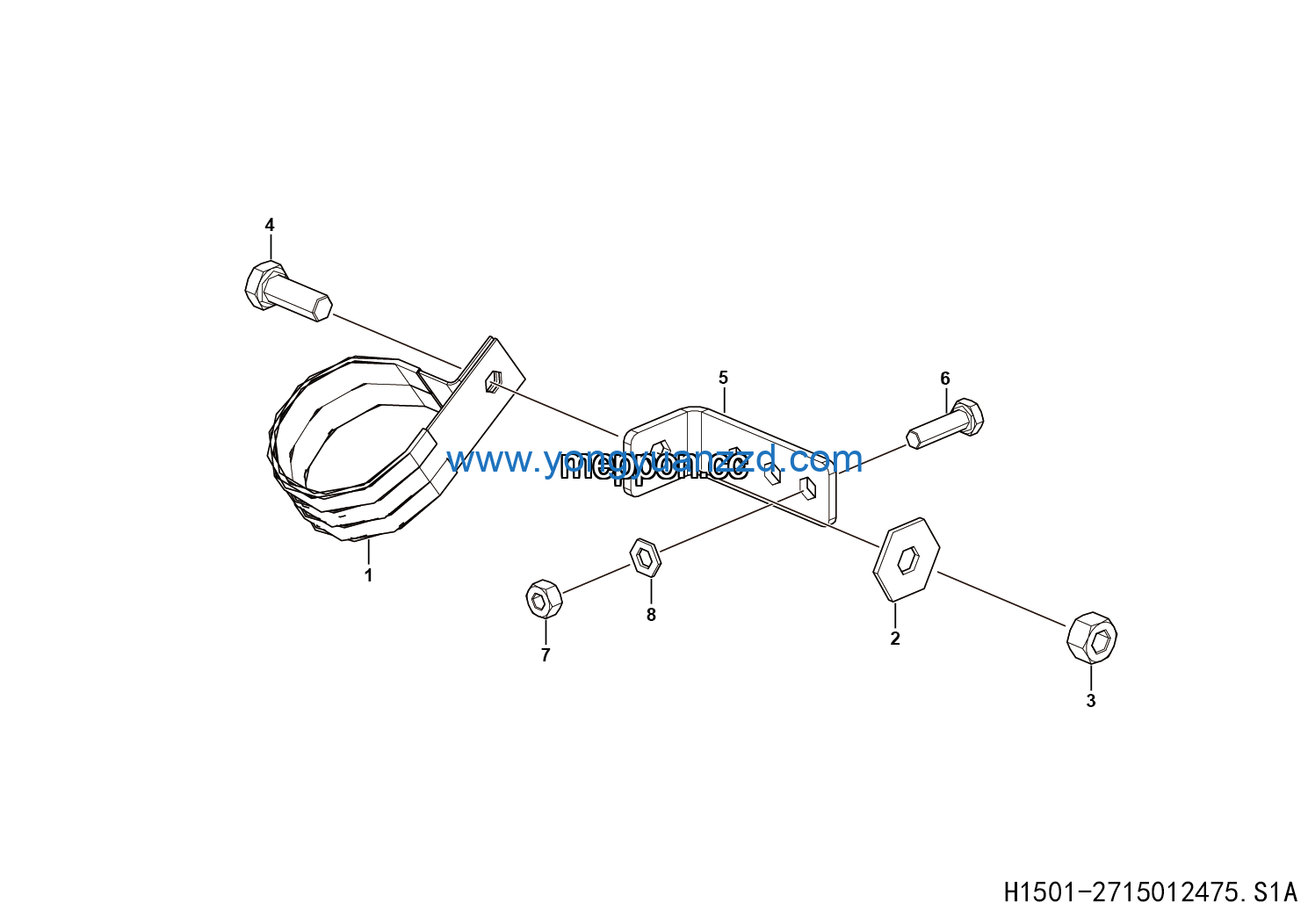

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Clip | 27160123011 | 1 |
| 2 | Washer GB96.1-14EpZn-300HV | 4015000188 | 1 |
| 3 | Nut GB6170-M14EpZn-8 | 4013000013 | 1 |
| 4 | Bolt GB5783-M14*35EpZn-8.8 | 4011000191 | 1 |
| 5 | Plate | 27150120821 | 1 |
| 6 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 1 |
| 7 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 8 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
