LGMG Off-Highway Dump Truck 2024 – ASM-JSFZJ – M1601-2716013183.S1A
Category: 2024 > Off-Highway Dump Truck > MT116H > M116HY3A0M013

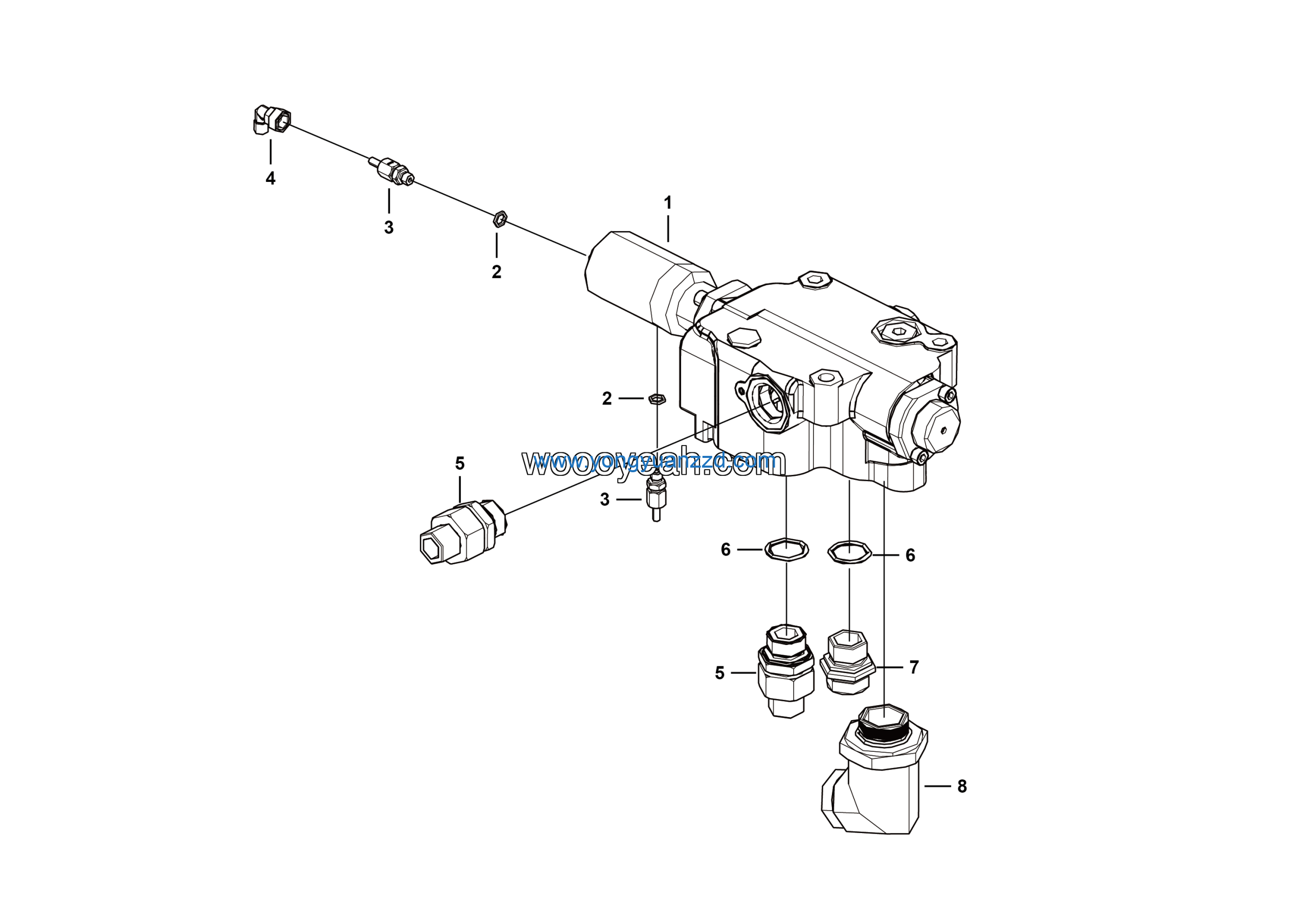

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Lifting valve | 4120002439 | 1 |
| 2 | Copper washer 10 | 27100101091 | 2 |
| 3 | Vertical nipple | 27130111131 | 2 |
| 4 | Combination joint LGB143-01205 | 4041010126 | 1 |
| 5 | Straight joint 1CH-30-33 | 4120001887 | 2 |
| 6 | O-ring LGB168-12931 | 4041000765 | 2 |
| 7 | Straight joint LGB120-03633 | 4041000577 | 1 |
| 8 | Connector | 27160116192 | 1 |
