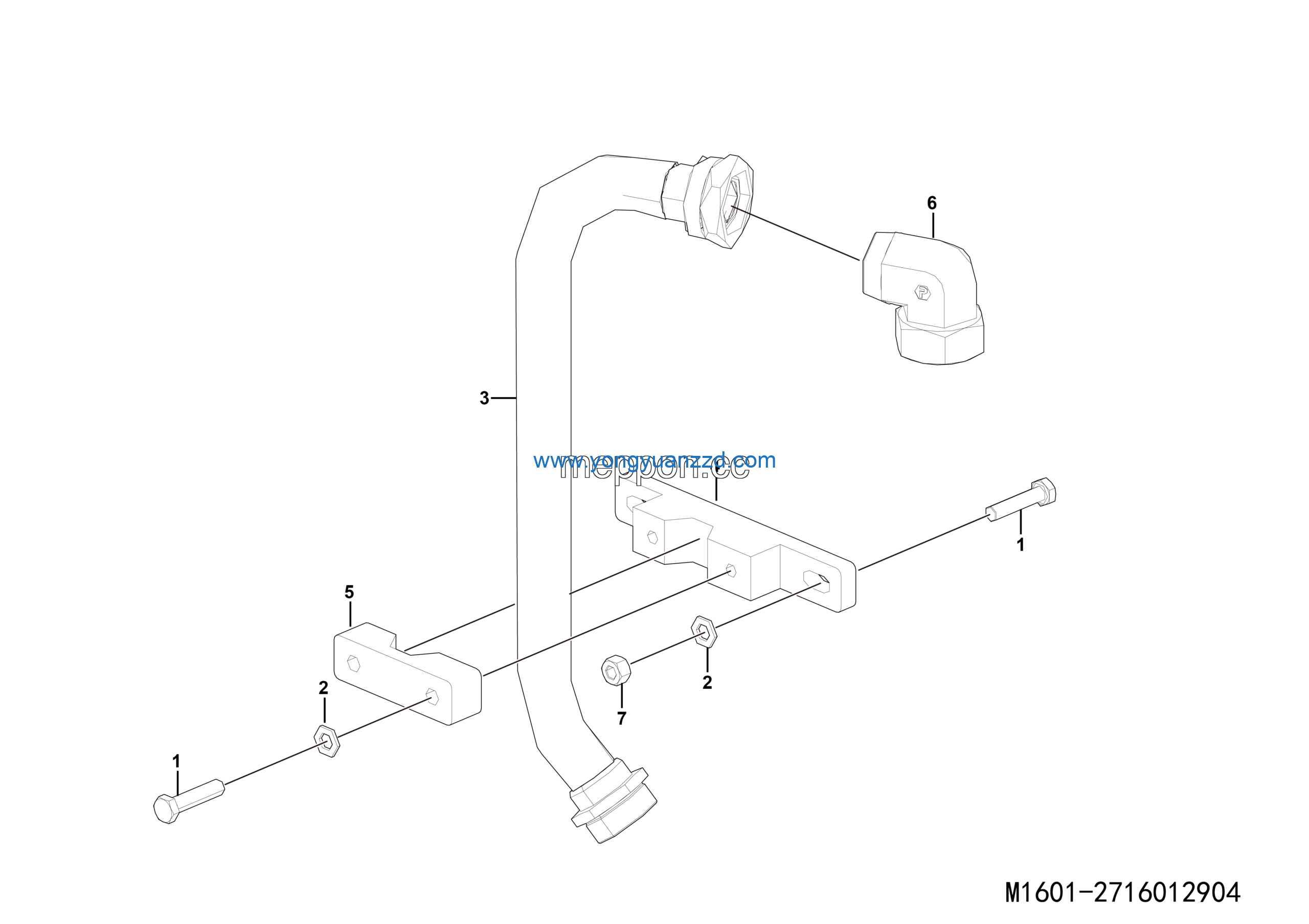

LGMG Off-Highway Dump Truck 2024 – ASM-Oil Return pipe Installation assy – M1601-2716012904
Category: 2024 > Off-Highway Dump Truck > CMT66A > C066AW3E0A006
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M12*50EpZn-8.8 | 4011000064 | 4 |
| 2 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 3 | Outlet air pipe of filter | 27160114451 | 1 |
| 4 | Block1 | 27160112172 | 1 |
| 5 | Block2 | 27160112182 | 1 |
| 6 | 90°Joint 2C9-52Z | 4120002479 | 1 |
| 7 | Nut GB6170-M12EpZn-8 | 4013000011 | 2 |
