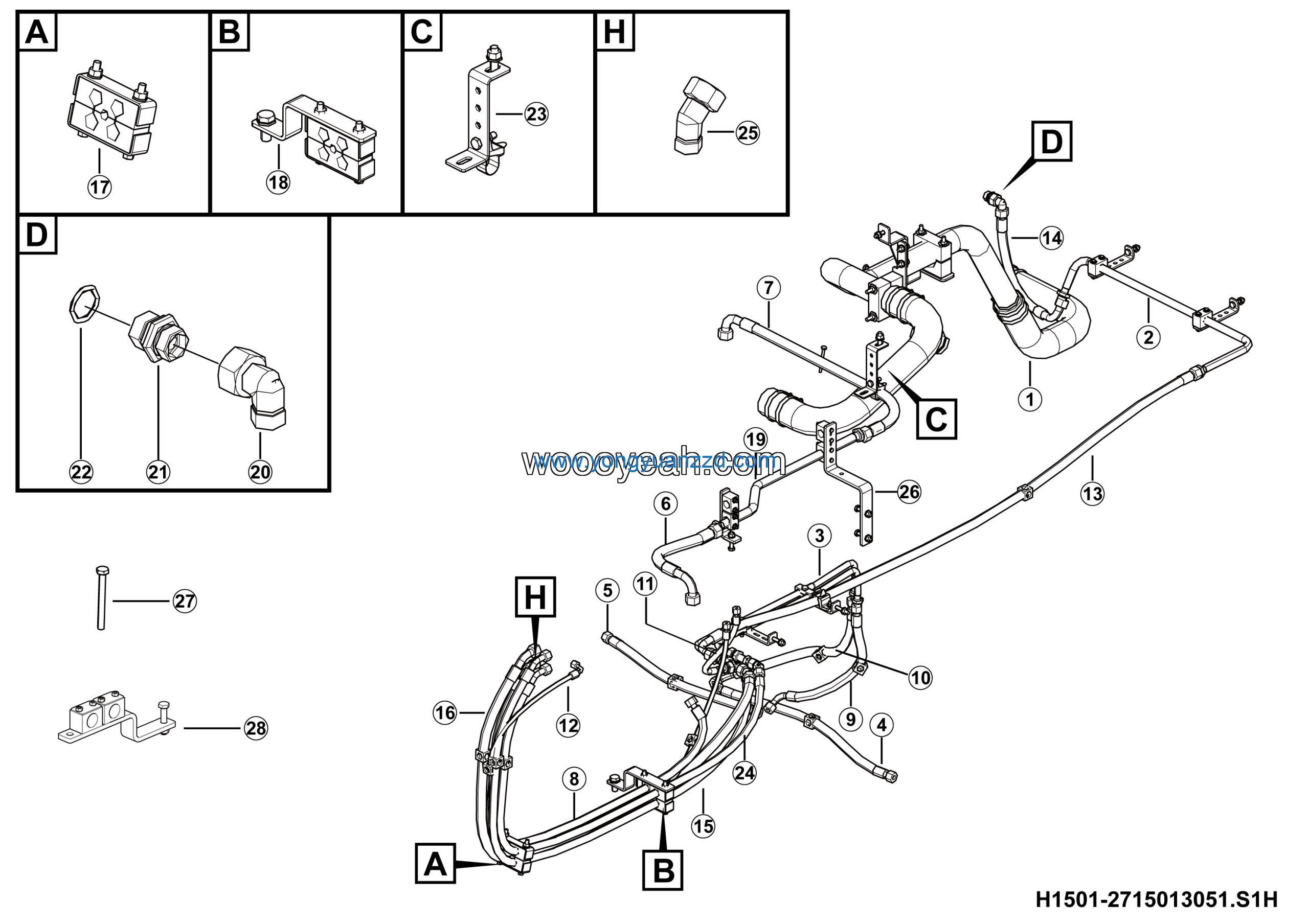

LGMG Off-Highway Dump Truck 2024 – Asm-pipe – H1501-2715013051.S1H
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M378
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose F451TCCACF151508-850-SG | 4120712107 | 1 |
| 2 | 胶管F481CACA080804-410 | 4120708196-002 | 1 |
| 3 | Hose F481CACF080804-1900 | 4120714626 | 1 |
| 4 | HoseF681CACF181810-2150 | 4120712109-001 | 1 |
| 5 | Hose F681CACF181810-600 | 4120712110 | 1 |
| 6 | Hose LGB129-006187 | 4041010379-014 | 1 |
| 7 | Hose LGB166-010180 | 4041010169-006 | 1 |
| 8 | Pipe rubber clamp assy | 27150120831 | 1 |
| 9 | Asm-bracket | 27150127801 | 1 |
| 10 | Pipe wldmt | 27160141831 | 1 |
| 11 | Asm-oil suction hose | 27150131281 | 1 |
| 12 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 13 | Straight joint LGB120-02628 | 4041000796 | 1 |
| 14 | O-ring LGB168-12331 | 4041000779 | 1 |
| 15 | Asm-bracket | 27150130571 | 1 |
| 16 | Hose LGB129-006187 | 4041010379-015 | 1 |
| 17 | Combination joint LGB143-12213 | 4041001218 | 1 |
| 18 | Asm-bracket | 27150130711 | 1 |
| 19 | Bolt GB5782-M6*65EpZn-8.8 | 4011000869 | 4 |
| 20 | Bracket assy 01 | 27150145771 | 1 |
| 21 | Asm-pipe | 27150131301 | 1 |
| 22 | Asm-pipe | 27150130551 | 1 |
| 23 | Hose F351TCCACA151508-670-AG | 4120715207-001 | 1 |
| 24 | Hose F351TCCACA151508-670-AG | 4120715207 | 1 |
| 25 | Hose F351CACF222212-510-FS | 4120715205-001 | 1 |
| 26 | Hose F351TCCACF222212-950 | 4120712104 | 1 |
| 27 | Hose F451TCCACA151510-1350 | 4120712451 | 1 |
| 28 | Hose F451TCCACF151508-650-SG | 4120712108 | 1 |
