LGMG Off-Highway Dump Truck 2024 – ASM-Power Unit Installation assy – H0600-2760000082
Category: 2024 > Off-Highway Dump Truck > MT126H > C126HC3A0M007

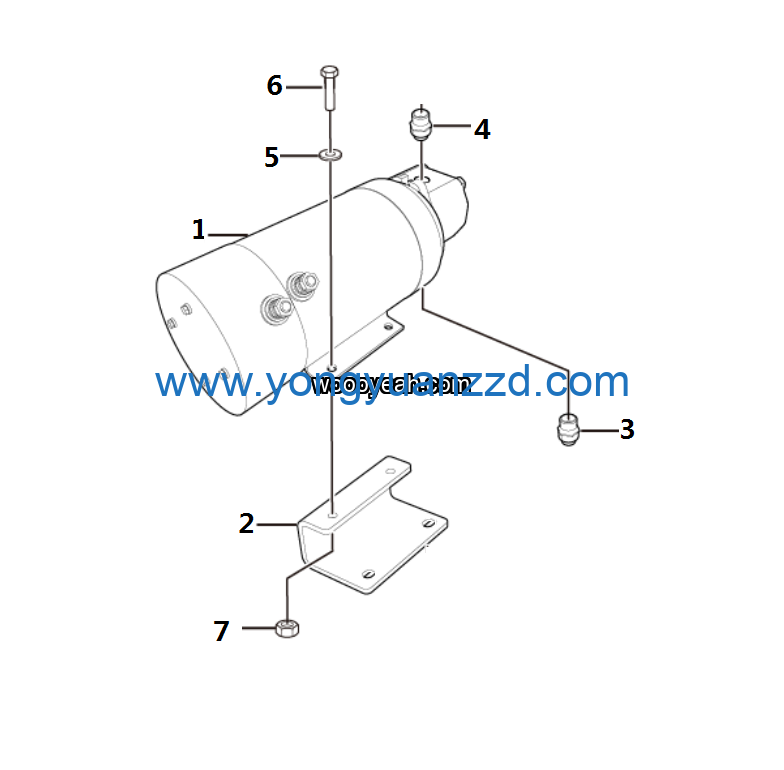

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Power unit LG60-DLDY-01 | 4120708068 | 1 |
| 2 | Plate | 27600000671 | 2 |
| 3 | Straight joint 1CB-26-08WD | 4120001370 | 1 |
| 4 | Straight joint 1CB-16-08 | 4120708245 | 1 |
| 5 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 6 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 7 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 4 |
