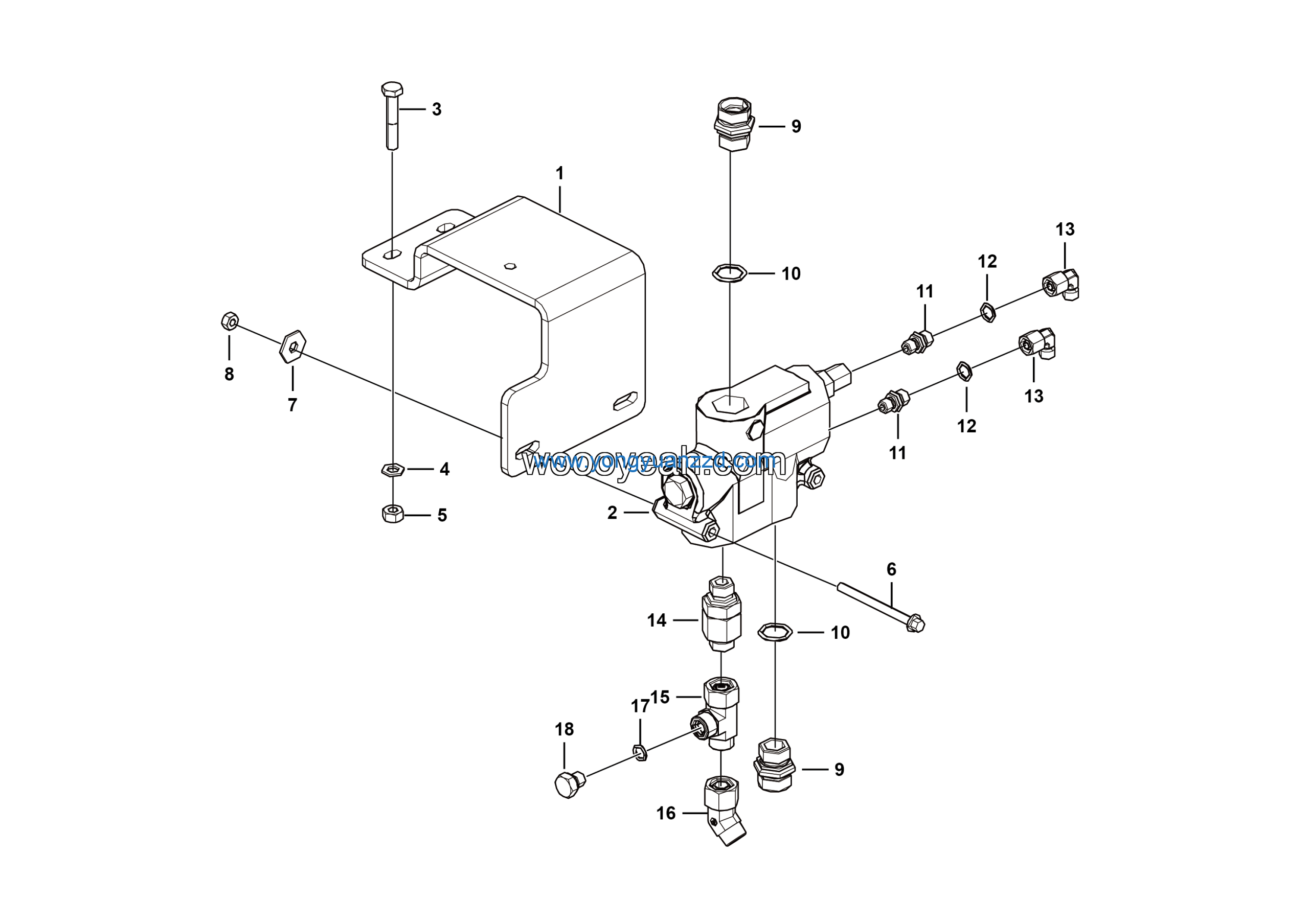

LGMG Off-Highway Dump Truck 2024 – ASM-Priority valve assembly – H1501-2715013062.S1A
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M346
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | O-ring LGB168-12331 | 4041000779 | 2 |
| 2 | Straight joint LGB120-01412 | 4041000131 | 2 |
| 3 | O-ring LGB168-10924 | 4041000784 | 2 |
| 4 | Combination joint LGB143-01406 | 4041001047 | 2 |
| 5 | Check valve SY-RV-L15-JM22*1.5-0.5 | 4120708098 | 1 |
| 6 | Pressure test tee | 27150108791 | 1 |
| 7 | Combination joint LGB143-12213 | 4041001218 | 1 |
| 8 | O-ring LGB168-11124 | 4041000767 | 1 |
| 9 | Plug LGB135-11019 | 4041000772 | 1 |
| 10 | Fixed bracket welding | 27150131391 | 1 |
| 11 | Priority valve VLE-150 | 4120708802 | 1 |
| 12 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 2 |
| 13 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 14 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 15 | Bolt GB16674.1-M8*90EpZn-8.8 | 4011000493 | 2 |
| 16 | Washer GB96.1-10EpZn-300HV | 4015000197 | 2 |
| 17 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 18 | Straight joint LGB120-03028 | 4041000188 | 2 |
