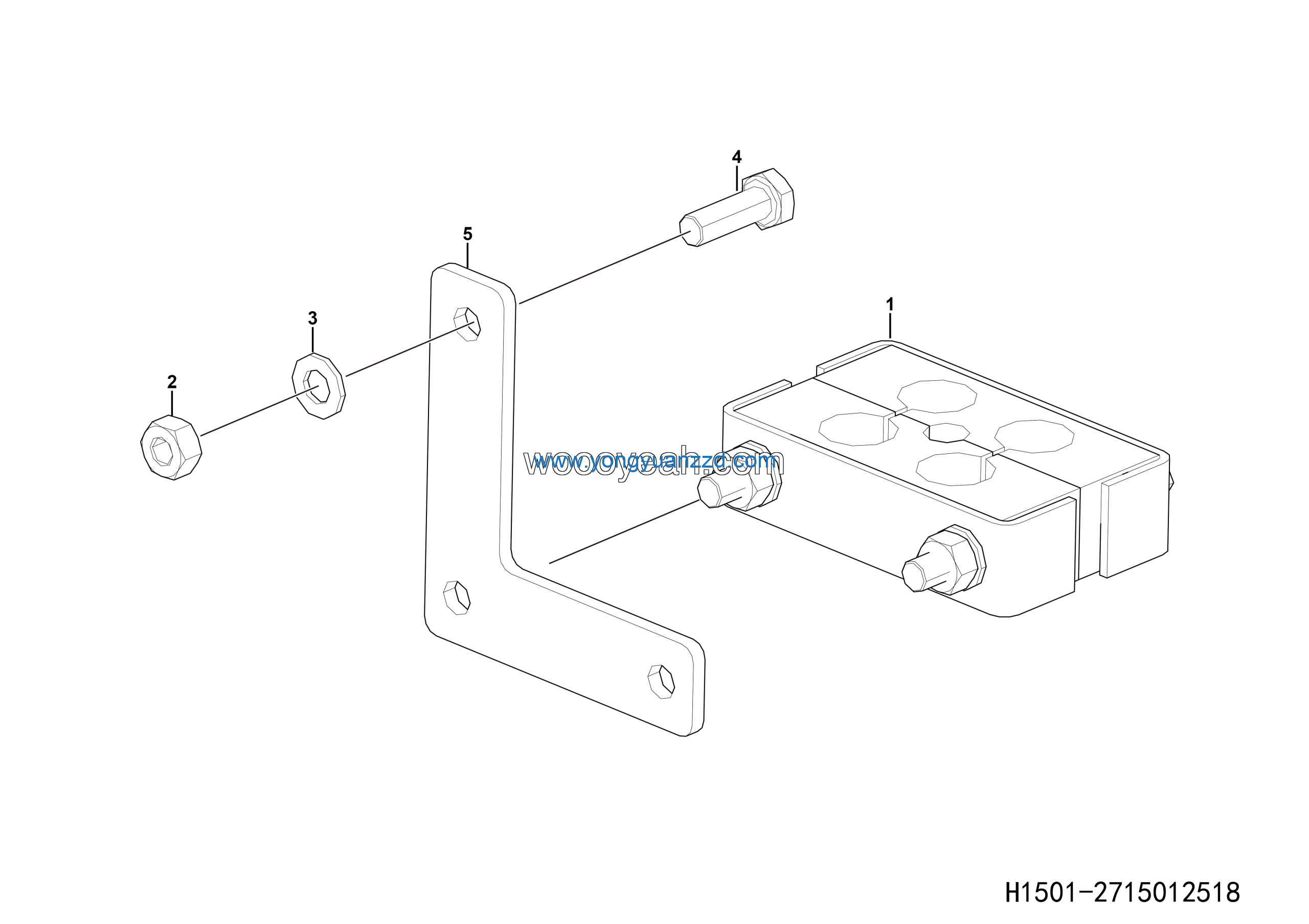

LGMG Off-Highway Dump Truck 2024 – ASM-Steering pipe installation assy – H1501-2715012518
Category: 2024 > Off-Highway Dump Truck > CMT66A > C066AW3E0A004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe rubber clamp assy | 27150120831 | 1 |
| 2 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 3 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 4 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 1 |
| 5 | Plate | 27150115981 | 1 |
