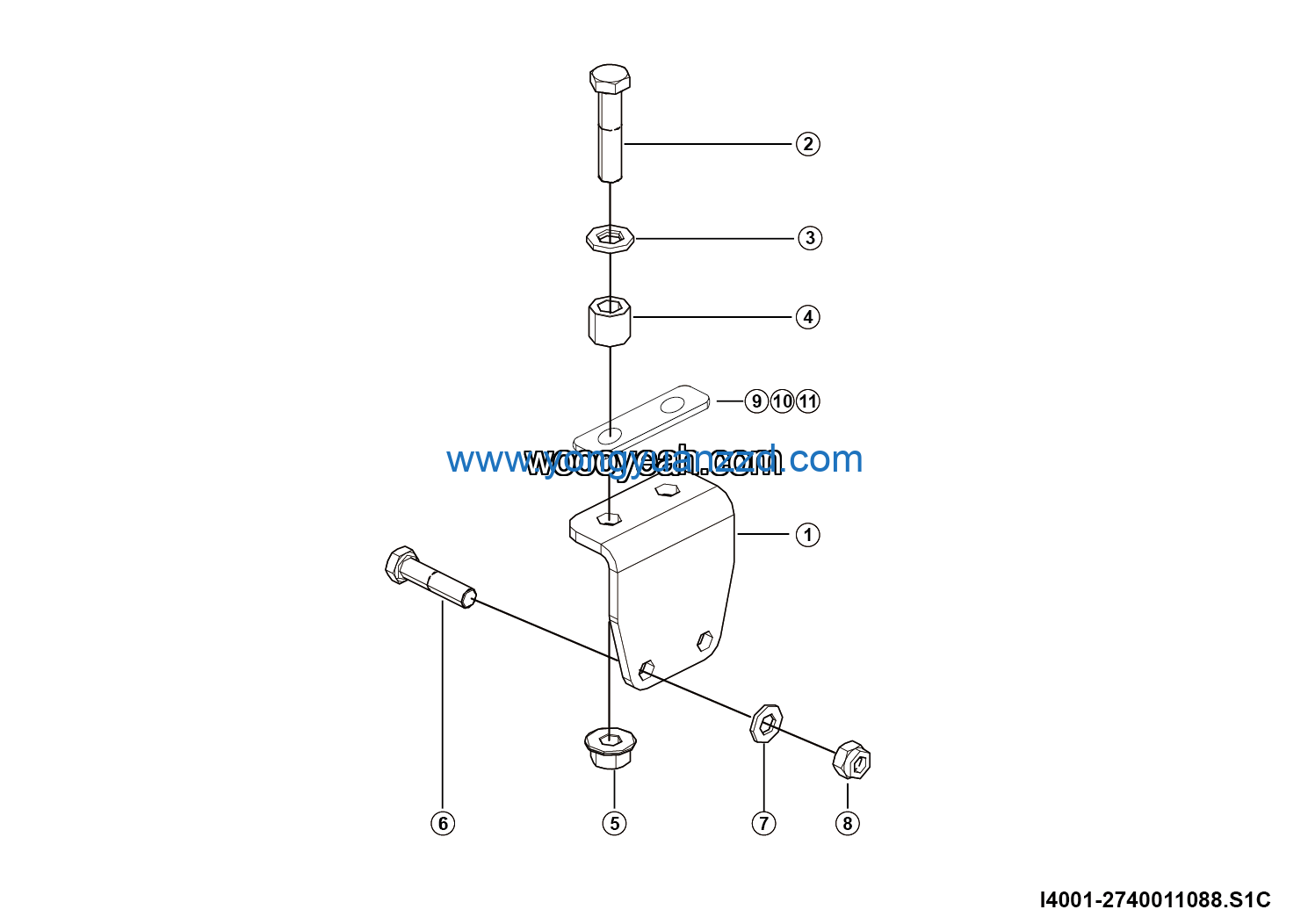

LGMG Off-Highway Dump Truck 2024 – Auxiliary Frame – I4001-2740011088.S1C
Category: 2024 > Off-Highway Dump Truck > MT116L > M116LW3A0M801
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Adjusting gasket 160*50*1 | 27400115981 | 1 |
| 2 | Adjusting gasket 160*50*0.5 | 27400115991 | 1 |
| 3 | Connecting seat weldment | 27400110892 | 1 |
| 4 | Bolt GB5785-M20*1.5*90flZnyc-12.9-480 | 4011010622 | 2 |
| 5 | Washer GB1230-20EpZn-45 | 4015000002 | 2 |
| 6 | Auxiliary frame | 27400110952 | 2 |
| 7 | Nut GB6177.2-RLM20*1.5EpZn-10 | 4013010547 | 2 |
| 8 | Bolt GB5785-M18*1.5*75flZnyc-12.9-480 | 4011010571 | 2 |
| 9 | Washer GB1230-18EpZn-45 | 4015010219 | 2 |
| 10 | Nut GB6185.2-M18*1.5flZnyc-12-480 | 4013010239 | 2 |
| 11 | Adjusting gasket 160*50*2 | 27400115971 | 1 |
