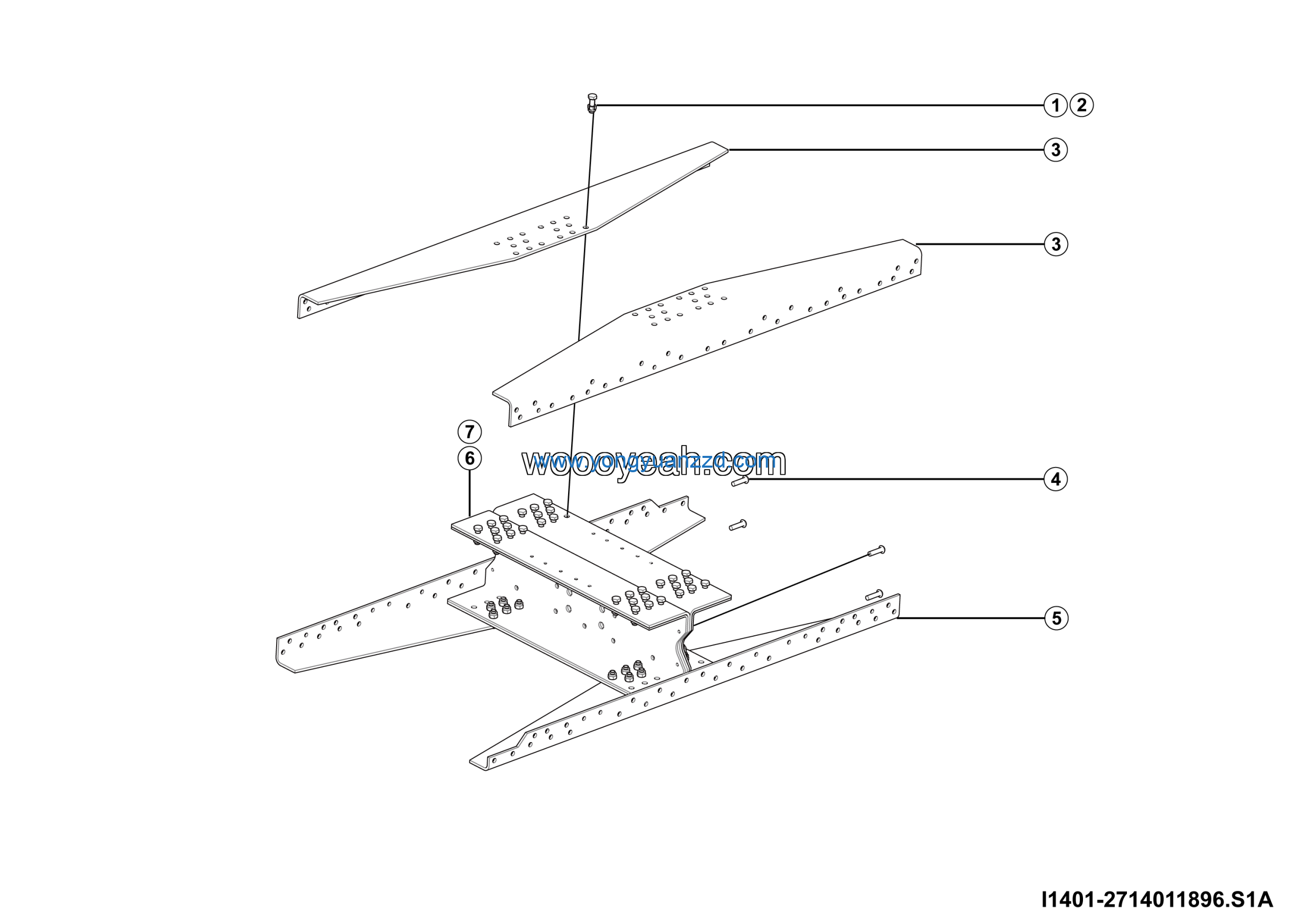

LGMG Off-Highway Dump Truck 2024 – Balance shaft reinforce transverse beam assembly – I1401-2714011896.S1A
Category: 2024 > Off-Highway Dump Truck > MT86H > M086HWG48
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5786-M18*1.5*55-12.9 | 4011010739 | 52 |
| 2 | NUT GB6185-M18*1.5EpZn-12 | 4013010252 | 52 |
| 3 | Reinforce beam up plate | 27140118972 | 2 |
| 4 | RIVET GB867-16*60 | 4019000137 | 4 |
| 5 | Reinforce beam down attaching plate | 27140118982 | 2 |
| 6 | Beam | 27140124461 | 2 |
| 7 | Within beam | 27140124472 | 2 |
