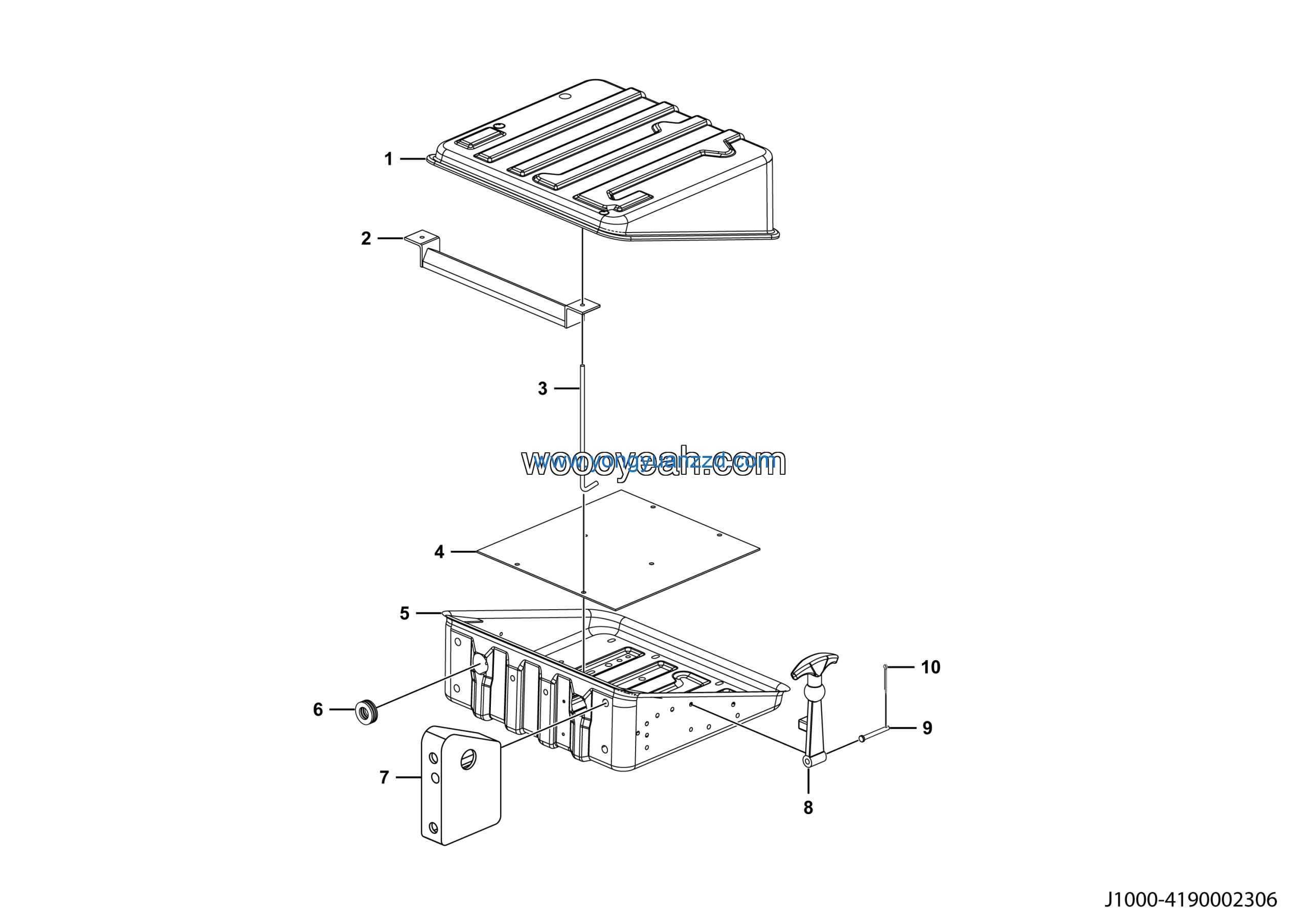

LGMG Off-Highway Dump Truck 2024 – Battery box assy – J1000-4190002306
Category: 2024 > Off-Highway Dump Truck > MT50 > M0500WA04
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pin GB91-1*10EpZn-Q235A | 4016000096 | 2 |
| 2 | Battery box cover | 4110000026 | 1 |
| 3 | Battery box fixing bracket | 4190002128 | 2 |
| 4 | Metal hook | 4190002237 | 4 |
| 5 | Lower rubber sheet | 4110000069 | 1 |
| 6 | Battery box | 4190002305 | 1 |
| 7 | Threading sheath | 4120000222 | 1 |
| 8 | Battery box bracket | 4110000027 | 2 |
| 9 | Rubber hook | 4110000028 | 2 |
| 10 | Pin GB882-B4*50EpZn-35 | 4016010103 | 2 |
