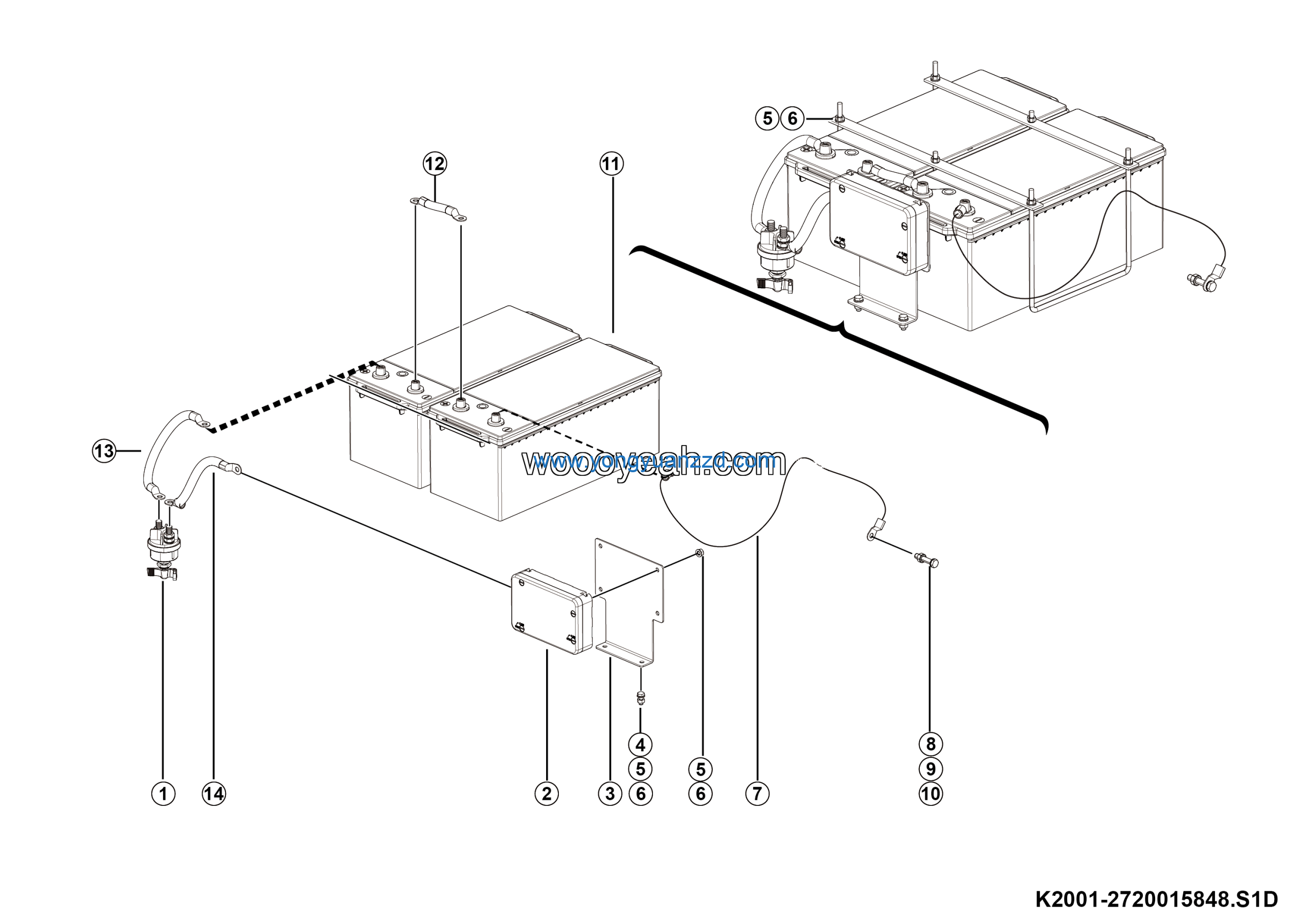

LGMG Off-Highway Dump Truck 2024 – Battery box elec module – K2001-2720015848.S1D
Category: 2024 > Off-Highway Dump Truck > MT116H > M116HY3A0M038
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 2 | Battery 6-QW-180MF | 4130000582 | 2 |
| 3 | Wirep95*160 | 27200134181 | 1 |
| 4 | Wirep70*300 | 27200134202 | 1 |
| 5 | Power cable p95*280 | 27200174361 | 1 |
| 6 | Main power switch AE-1411-18M | 4130702800 | 1 |
| 7 | High current splitter assy | 4130712648 | 1 |
| 8 | Large current deconcentrator bracket | 27200106531 | 1 |
| 9 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 2 |
| 10 | Washer GB97.1-8EpZn-300HV | 4015000072 | 10 |
| 11 | Nut GB6170-M8EpZn-8 | 4013000033 | 12 |
| 12 | Battery ground wire p95*450 | 27200156811 | 1 |
| 13 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 1 |
| 14 | Washer GB862.2-10-65Mn | 4015010586 | 2 |
