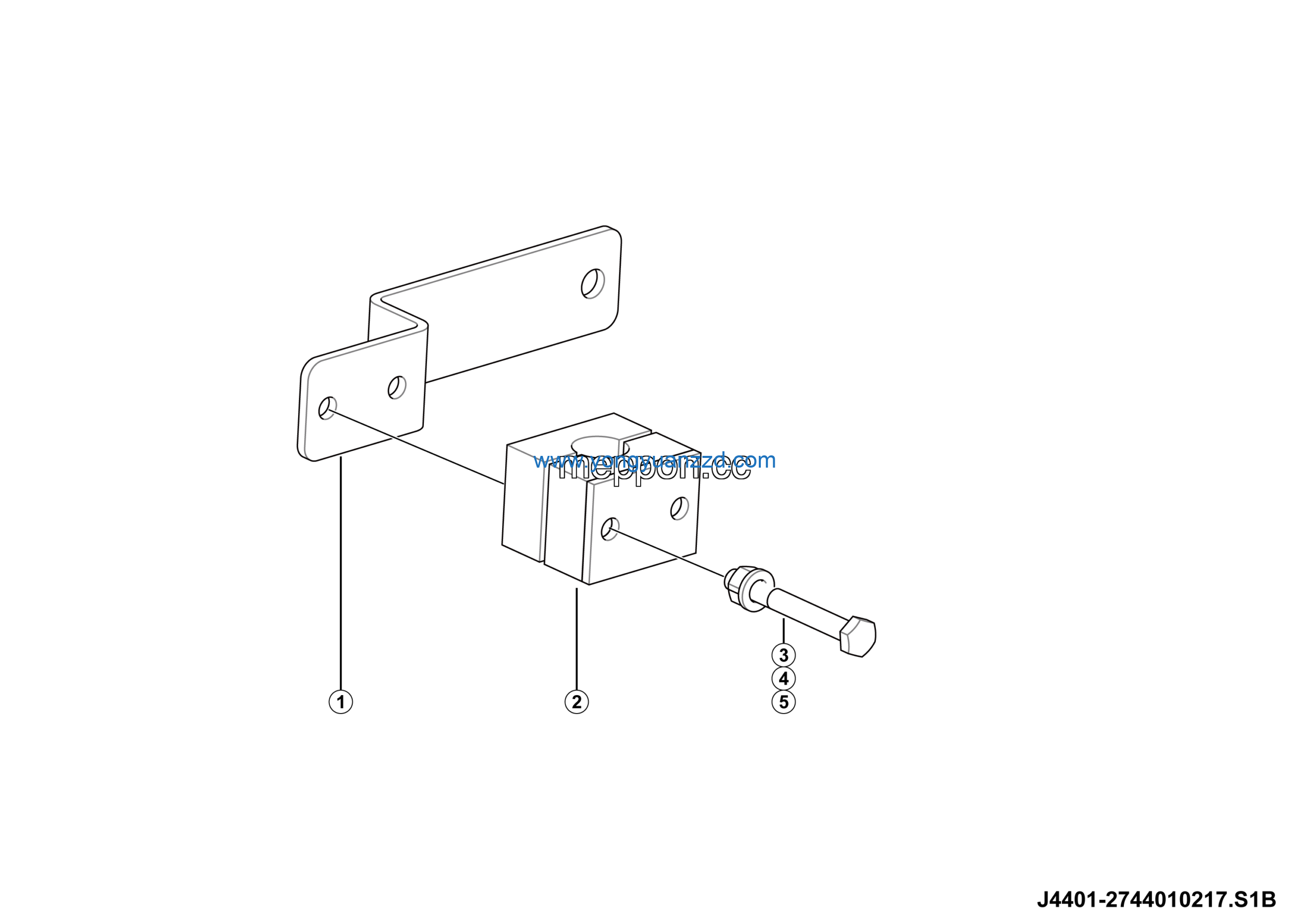

LGMG Off-Highway Dump Truck 2024 – Bracket assy 02 – J4401-2744010217.S1B
Category: 2024 > Off-Highway Dump Truck > KT25 > M0250Y3E0M102
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate 30×60×3 | 27440102071 | 1 |
| 2 | Tube clamp TLPG16-216 | 4120710944 | 1 |
| 3 | Bolt GB5782-M6*50EpZn-8.8 | 4011000523 | 2 |
| 4 | Plate 30×60×3 | 27440102511 | 2 |
| 5 | Nut GB6170-M6EpZn-8 | 4013000028 | 2 |
