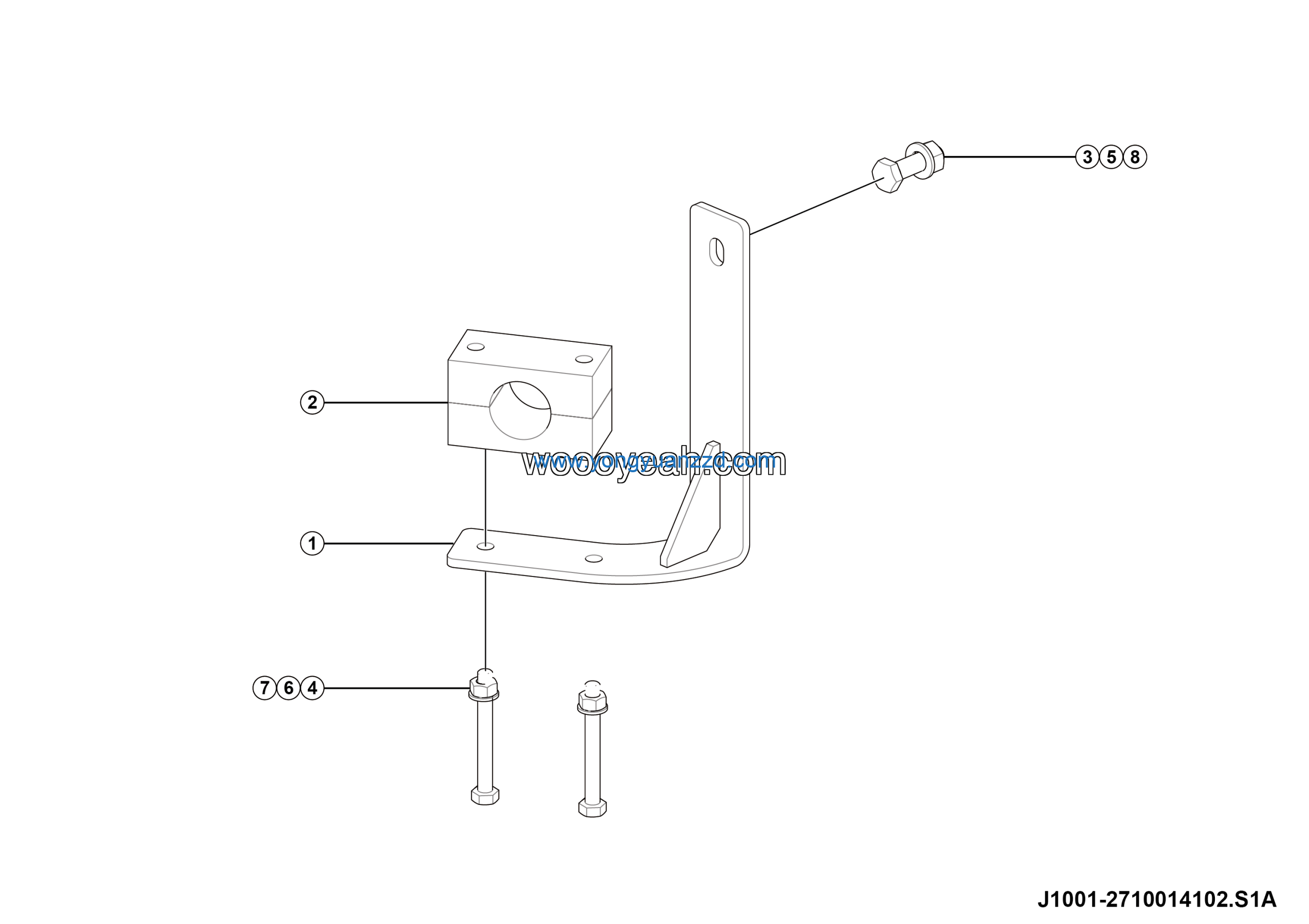

LGMG Off-Highway Dump Truck 2024 – Bracket assy 05 – J1001-2710014102.S1A
Category: 2024 > Off-Highway Dump Truck > MTH116M > M116MY3A2AU004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket wldmt 02 | 27100141041 | 1 |
| 2 | Pipe clamp 34 | 27100138151 | 2 |
| 3 | Bolt GB5783-M10*35flZnyc-8.8-480 | 4011010727 | 1 |
| 4 | Bolt GB5782-M8*70flZnyc-8.8-480 | 4011011466 | 2 |
| 5 | Nut GB6170-M10flZnyc-8-480 | 4013010289 | 1 |
| 6 | Nut GB6170-M8flznyc-8-480 | 4013010291 | 2 |
| 7 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 2 |
| 8 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 1 |
