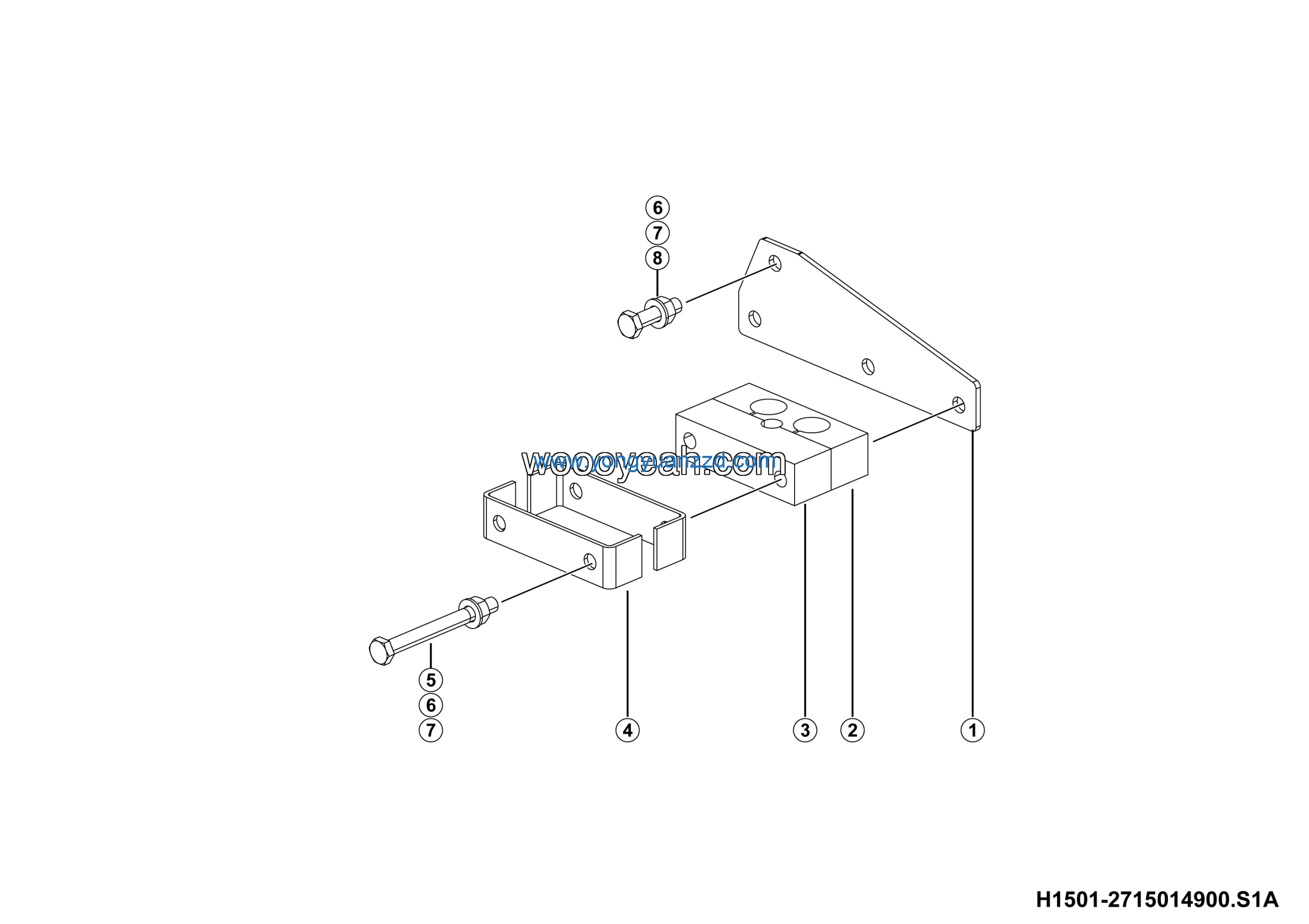

LGMG Off-Highway Dump Truck 2024 – Bracket assy 16 – H1501-2715014900.S1A
Category: 2024 > Off-Highway Dump Truck > MTH116M > M116MY3A2AU004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27150119151 | 1 |
| 2 | Block | 27150108321 | 1 |
| 3 | Rubber block 110*30*34 | 27150148091 | 1 |
| 4 | Plate | 27150108421 | 2 |
| 5 | Bolt GB5782-M10*100flZnyc-8.8-480 | 4011011157 | 2 |
| 6 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 4 |
| 7 | Nut GB6170-M10flZnyc-8-480 | 4013010289 | 4 |
| 8 | Bolt GB5783-M10*40flZnyc-8.8-480 | 4011010706 | 2 |
