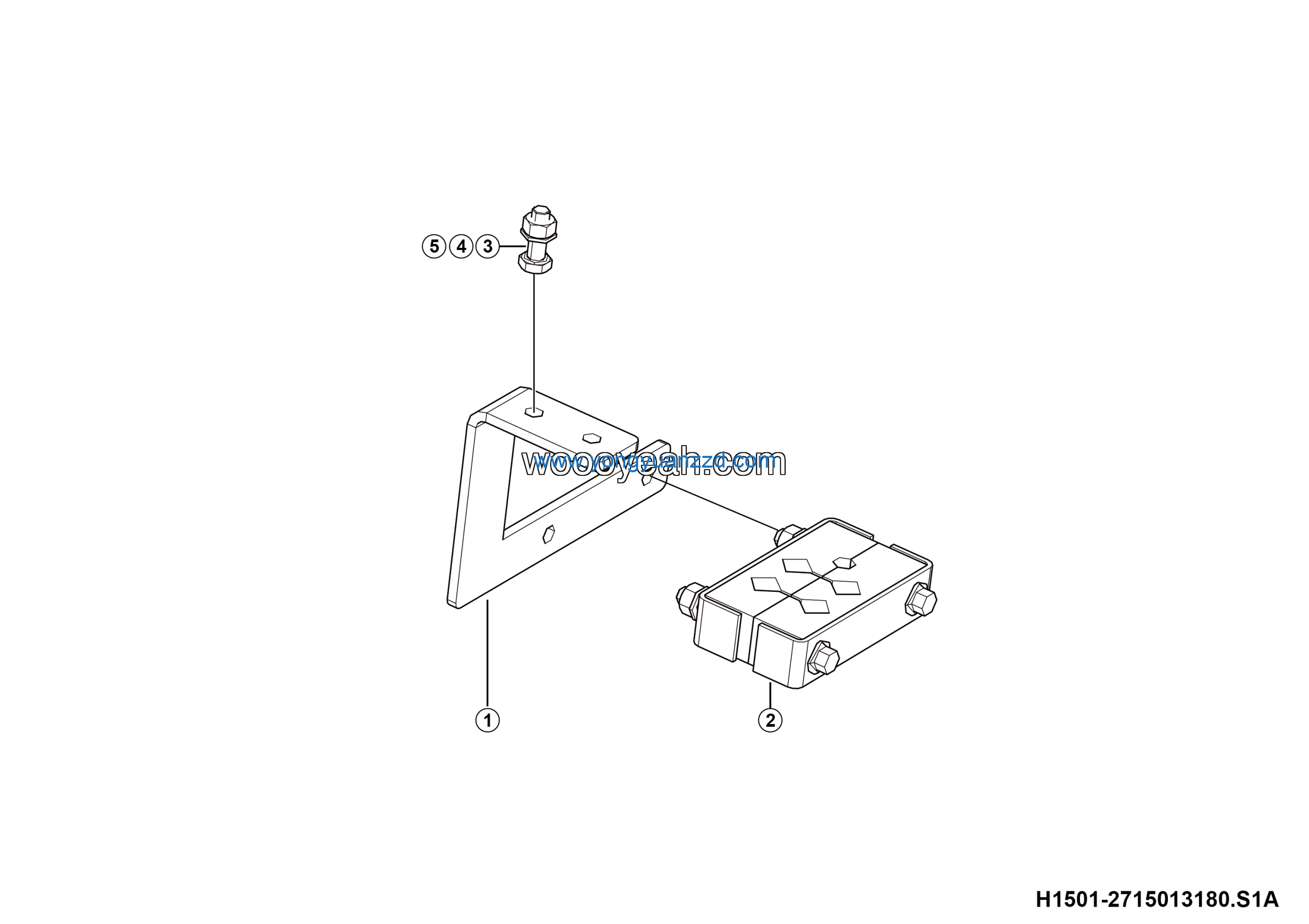

LGMG Off-Highway Dump Truck 2024 – Bracket assy – H1501-2715013180.S1A
Category: 2024 > Off-Highway Dump Truck > MTE106H > C106HE0A0A903
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket 200*130*6 | 27150131951 | 1 |
| 2 | Rubber plate assy for tube bank | 27150131811 | 1 |
| 3 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
