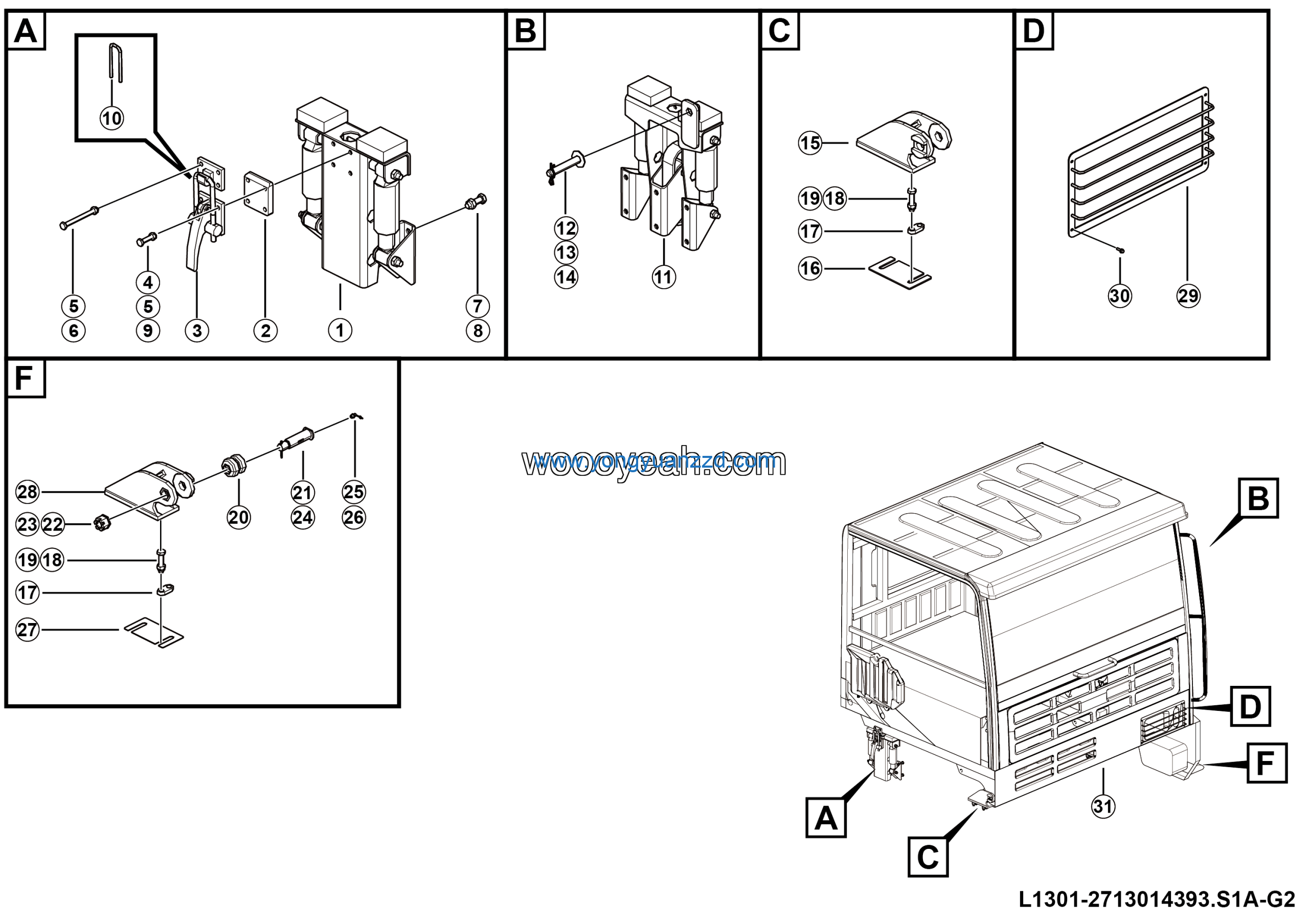

LGMG Off-Highway Dump Truck 2024 – Cab assy – L1301-2713014393.S1A-G2
Category: 2024 > Off-Highway Dump Truck > MT116H > M116HY3A0M036
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | U-polit | 27130117912 | 2 |
| 2 | Left rear suspension assembly | 27130117861 | 1 |
| 3 | Pipe | 27130117631 | 1 |
| 4 | Retaining ring | 27130117601 | 1 |
| 5 | Sping | 27130117641 | 1 |
| 6 | Plate | 27130121032 | 1 |
| 7 | Adjustment shim | 27130103081 | 1 |
| 8 | Plate | 27130119932 | 4 |
| 9 | Bolt GB5783-M14*60flZnyc-12.9-480 | 4011010612 | 8 |
| 10 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 8 |
| 11 | Right rear suspension assembly | 27130117891 | 1 |
| 12 | Front suspension lining | 27130104471 | 2 |
| 13 | Roller alxe | 27130133601 | 2 |
| 14 | Washer GB97.1-24EpZn-300HV | 4015000167 | 2 |
| 15 | Nut GB9459-M24*2-8 | 4013000274 | 2 |
| 16 | Pin GB91-4*45EpZn-Q235A | 4016000057 | 2 |
| 17 | Butter nozzle cap JXHF-00006 | 4120000015 | 2 |
| 18 | Grease nipple JB7940.1-M10*1 | 4030000065 | 2 |
| 19 | Adjustment shim 1 | 27130103091 | 1 |
| 20 | Sign | 27130120992 | 1 |
| 21 | Air conditioner assembly | 27360154701 | 2 |
| 22 | Plate | 27130117291 | 2 |
| 23 | Bolt GB16674.1-M5*16EpZn-8.8 | 4011010372 | 8 |
| 24 | Tiltable left-mounted cab lg13-jss-3379 | 4190713379 | 1 |
| 25 | Mechanical lock assy | 4190002377 | 2 |
| 26 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 8 |
| 27 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 16 |
| 28 | Bolt GB5782-M10*110EpZn-8.8 | 4011000797 | 8 |
| 29 | Bolt GB5783-M14*55EpZn-8.8 | 4011010254 | 12 |
| 30 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 12 |
| 31 | Washer GB93-10-65Mn | 4015000025 | 8 |
