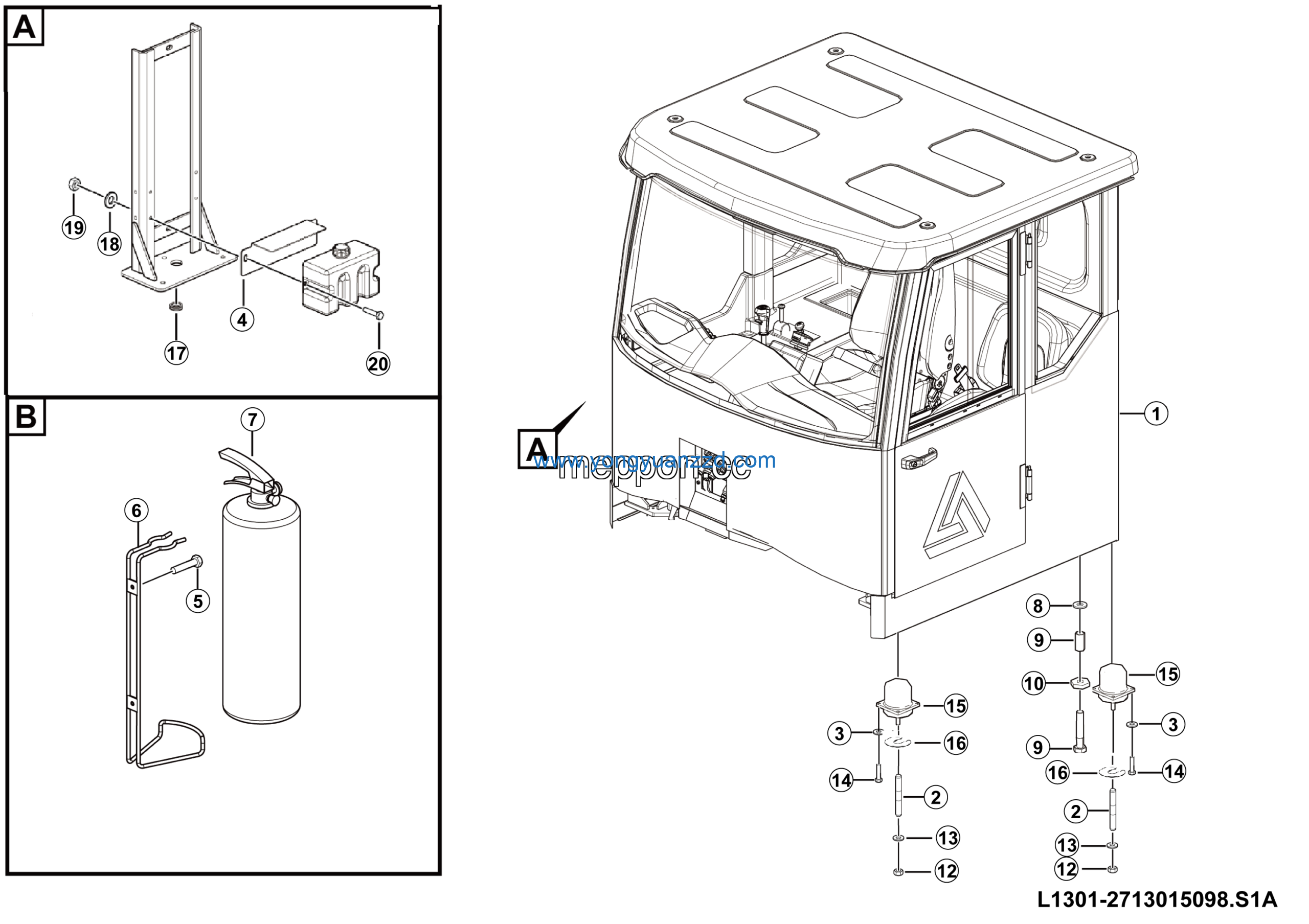

LGMG Off-Highway Dump Truck 2024 – Cab installation – L1301-2713015098.S1A
Category: 2024 > Off-Highway Dump Truck > CMT96 > C0960WG16
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Spring | 27130116051 | 2 |
| 2 | Bolt GB5785-M30*2*155EpZn-8.8 | 4011000397 | 2 |
| 3 | Nut GB6185.2-M20*2flZnyc-12-480 | 4013010564 | 4 |
| 4 | NORD-LOCK WASHER NL20sp | 4190709187 | 4 |
| 5 | Bolt GB5783-M10*35EpZn-10.9 | 4011000569 | 16 |
| 6 | Shock absorber 10107-01-A1 | 4190709116 | 4 |
| 7 | Adjusting shim 120*1.5 | 27130143421 | 4 |
| 8 | Rubber sleeve | 28219900091 | 1 |
| 9 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 10 | Nut GB889.1-M8EpZn-8 | 4013000210 | 2 |
| 11 | Cab assy LG13-JSS-1065 | 4190711065 | 1 |
| 12 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 2 |
| 13 | Stud m20*2*90 | 27130143511 | 4 |
| 14 | Washer GB97.1-10EpZn-300HV | 4015000162 | 16 |
| 15 | Plate | 27130119081 | 1 |
| 16 | Screw GB818-M5*12EpZn-4.8 | 4014000048 | 2 |
| 17 | Fire extinguisher bracket | 4190003487 | 1 |
| 18 | Fire extinguisher | 4190003486 | 1 |
| 19 | Washer GB97.1-30EpZn-300HV | 4015000119 | 2 |
| 20 | PLATE | 27360117531 | 2 |
