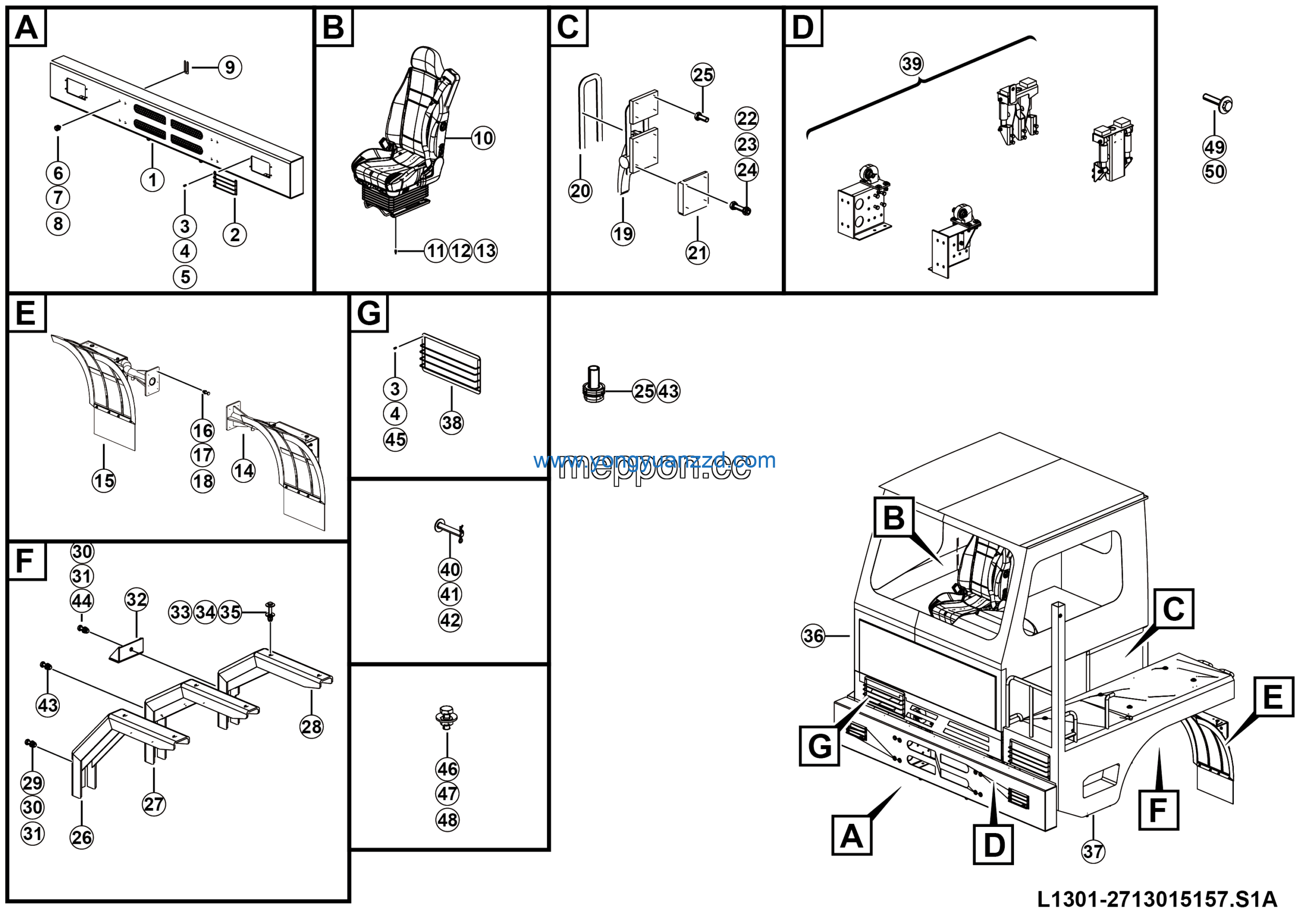

LGMG Off-Highway Dump Truck 2024 – Cab installation – L1301-2713015157.S1A
Category: 2024 > Off-Highway Dump Truck > MT50 > M0500W2E0M101
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Seat assy SGA22305 | 4190708195 | 1 |
| 2 | Screw GB70.1-M8*25-8.8 | 4014000171 | 4 |
| 3 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 4 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 4 |
| 5 | Left fender assembly | 27130111691 | 1 |
| 6 | Right mudguard assembly | 27130111701 | 1 |
| 7 | Bolt GB5783-M14*50EpZn-8.8 | 4011000338 | 8 |
| 8 | Washer GB97.1-14EpZn-300HV | 4015000177 | 8 |
| 9 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 14 |
| 10 | Mechanical lock assy | 4190002377 | 2 |
| 11 | Bumper assembly | 27130111613 | 1 |
| 12 | U-polit | 27130117912 | 2 |
| 13 | Plate | 27130117291 | 2 |
| 14 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 8 |
| 15 | Washer GB93-10-65Mn | 4015000025 | 8 |
| 16 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 20 |
| 17 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 18 |
| 18 | Front bracket of platform | 27130111912 | 1 |
| 19 | Middle bracket of platform | 27130111942 | 1 |
| 20 | Platform rear bracket weldment | 27130145541 | 1 |
| 21 | Bolt GB5783-M16*50EpZn-8.8 | 4011000269 | 7 |
| 22 | Fog light protecting cap | 27130102161 | 2 |
| 23 | Washer GB97.1-16EpZn-300HV | 4015000181 | 9 |
| 24 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 9 |
| 25 | Plate | 27130111991 | 2 |
| 26 | Bolt GB5782-M14*90EpZn-8.8 | 4011000420 | 6 |
| 27 | Washer GB96.1-14EpZn-300HV | 4015000188 | 12 |
| 28 | Nut GB6170-M14EpZn-8 | 4013000013 | 6 |
| 29 | Tiltable RH cab LG13-JSS-1159 | 4190711159 | 1 |
| 30 | Fixed left platform LG13-JSS-9952 | 4190709952 | 1 |
| 31 | Cab | 27130111671 | 2 |
| 32 | Cab mountings | 27130145481 | 1 |
| 33 | Bolt GB16674.1-M5*20EpZn-8.8 | 4011010518 | 16 |
| 34 | Pipe | 27130117631 | 1 |
| 35 | Retaining ring | 27130117601 | 1 |
| 36 | Sping | 27130117641 | 1 |
| 37 | Washer GB97.1-10EpZn-300HV | 4015000162 | 18 |
| 38 | Bolt GB5783-M16*40EpZn-8.8 | 4011000096 | 2 |
| 39 | Nut GB6170-M5EpZn-8 | 4013010029 | 8 |
| 40 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 8 |
| 41 | Washer GB96.1-8EpZn-300HV | 4015000256 | 16 |
| 42 | Nut GB6170-M8EpZn-8 | 4013000033 | 8 |
| 43 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 2 |
| 44 | Washer GB97.1-5EpZn-300HV | 4015000110 | 16 |
| 45 | Washer GB96.1-10EpZn-300HV | 4015000197 | 4 |
| 46 | Nut GB6185.1-M5EpZn-8 | 4013010116 | 8 |
| 47 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 12 |
| 48 | Washer GB96.1-12EpZn-300HV | 4015000186 | 16 |
| 49 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 12 |
| 50 | Plate | 27130111661 | 4 |
